5 Set-up

22 Set-up instructions 0020200969_07

3. Drill the fastening holes away from the centre.

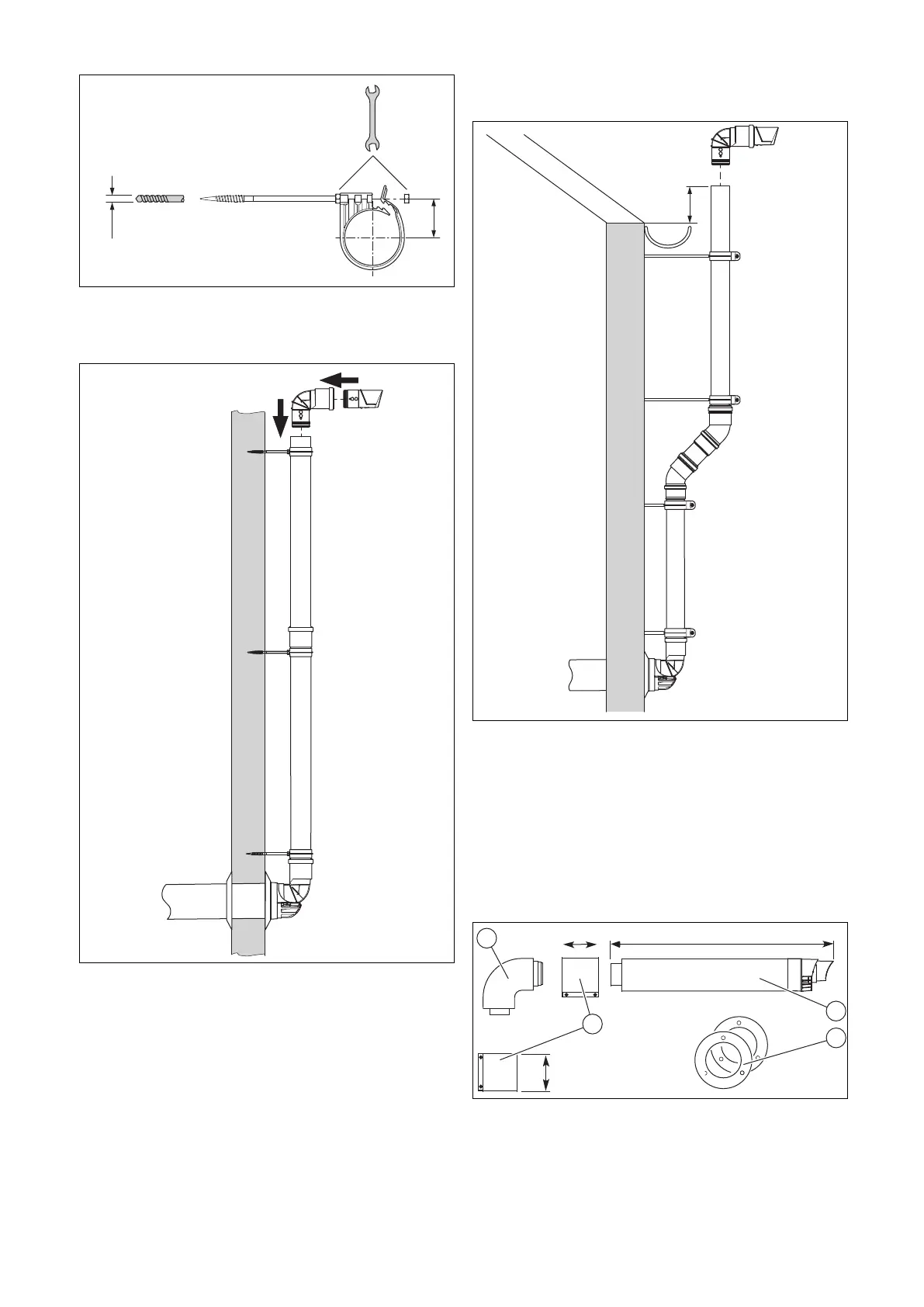

5.4.4.4 Installing the end pipe

1. Install the second 87° elbow into the last extension.

2. Securely insert the end pipe into the 87° elbow until the

end pipe clicks into place in the seal.

5.4.4.5 Routing extensions for the variable terminal

set around eaves

min. 100 mm

When installing the variable terminal set around eaves, ad-

ditional M8 threaded rods are required for the pipe clamps.

The threaded rods are commercially available.

▶ If required, install additional 45° elbows.

5.4.5 Installing the 80/125 mm diameter horizontal

wall/roof duct, article number 303209 or

0010035777

5.4.5.1 Scope of delivery

1020

1 Horizontal wall/roof duct

2 Wall collar, 125 dia-

meter (2 pcs)

3 70 mm clamp (2 pcs)

4 87° elbow
