Set-up 5

0020200969_07 Set-up instructions 21

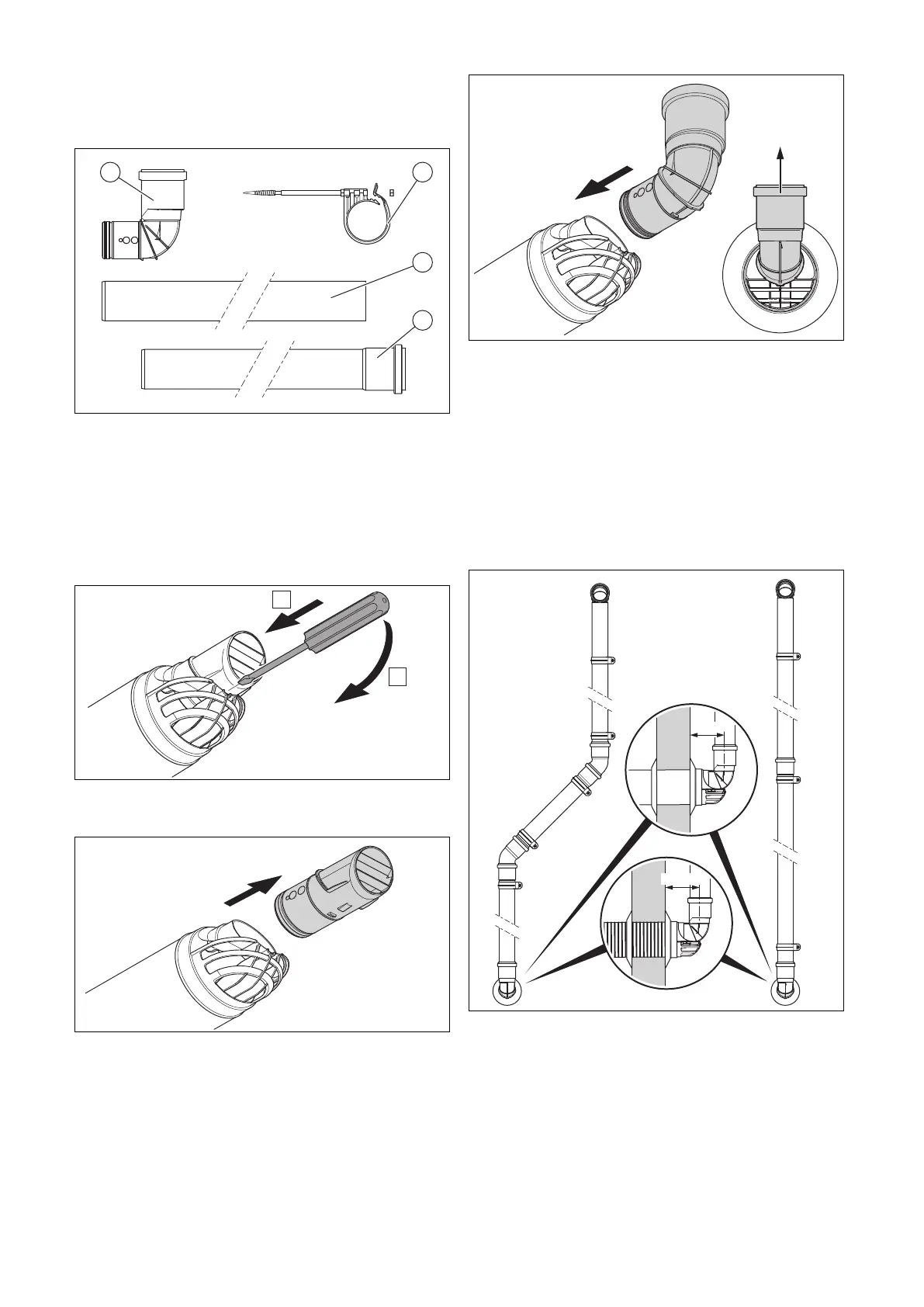

5.4.4 Variable terminal set (VTK) (not for

0010035512)

5.4.4.1 Scope of delivery

1 2

1 87° elbow (2 x)

2 Pipe clamps (3 x)

3 Extension (1 m) without

sleeve

4 Extension (1 m) with

sleeve

– Variable terminal set, black, article number 0020219529

– Variable terminal set, white, article number 0020219530

5.4.4.2 Installing the variable terminal set (VTK)

1. Release the catch between the opening piece and the

end pipe.

2. Pull the end pipe from the opening piece.

0°

3. Slide the first 87° elbow onto the opening piece until

you hear the 87° elbow click into place.

5.4.4.3 Installing extensions

1. Install the flue system from the 87° elbow to the flue

outlet.

– Begin with the extension with the sleeve. To be able

to install the second 87° elbow with the end pipe,

you must install the extension without a sleeve last.

– Allow expansion space of 1 cm in each sleeve.

– Ensure that all pipe joints are absolutely leak-tight.

100

80-100

2. Secure the extensions to the wall using the pipe

clamps.

– Use one pipe clamp for each extension directly be-

side the sleeve.

– Upstream of each elbow, install another pipe clamp

on the extension.
