5 Installation
32 Installation instructions electronicVED 0020288452_00
Caution.
Risk of damage due to pipes
being blocked by foreign
bodies in the water.
The product must not be used
without a strainer in the cold
water inlet.
▶ When you set up the cold
water connection, install the
supplied filter strainer in the
product's cold water inlet.
8. Screw the unit connections to the do-
mestic hot and cold water connections.
9. Hinge the lower section of the product
frame back until it engages.

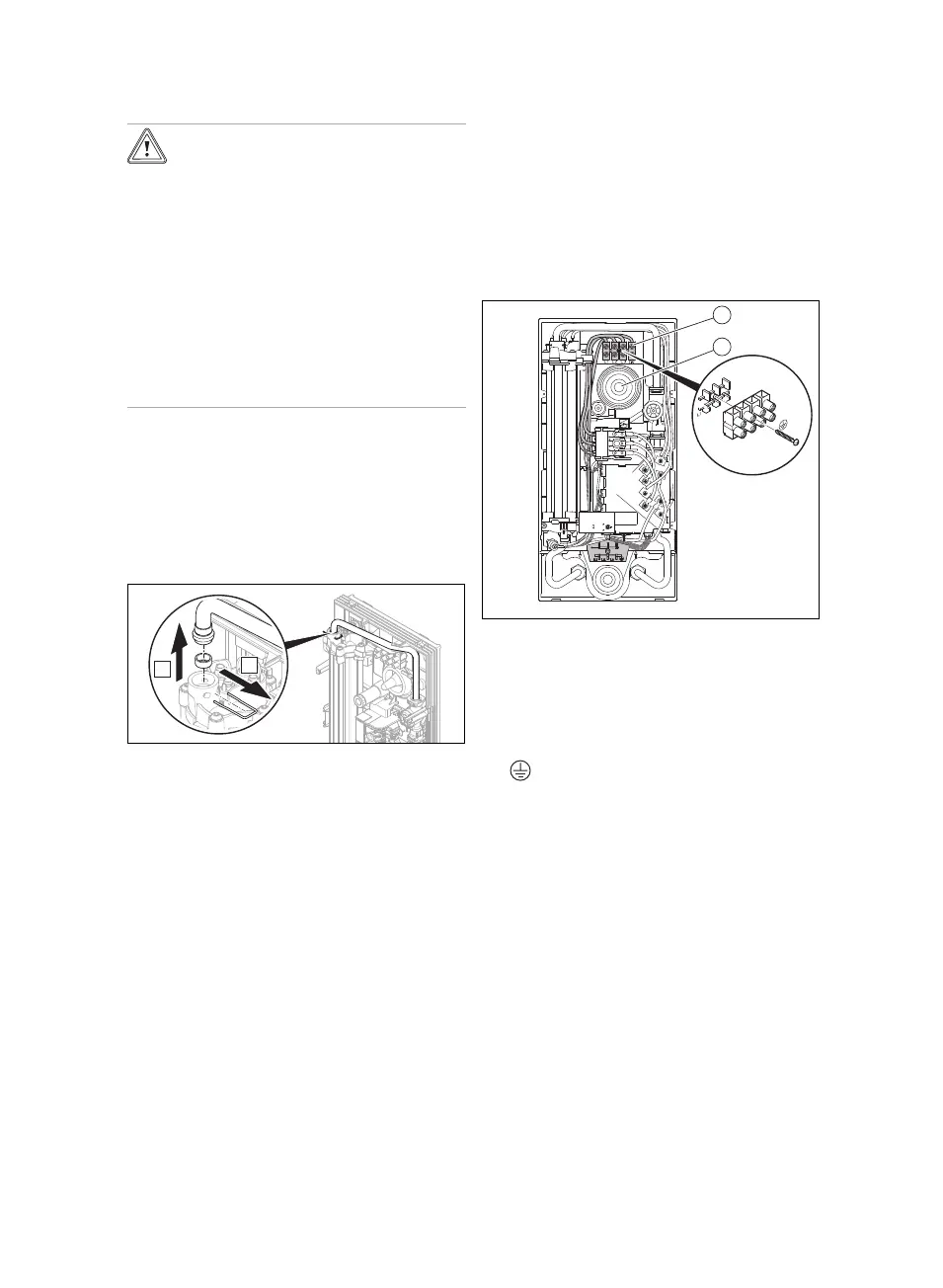

5.2 Installing a 12 l/min flow rate
limiter (optional)
▶ Install the flow rate limiter as shown.
5.3 Connecting the product to the
electricity supply
1. Note the specifications on the data
plate when carrying out the electrical
installation.
2. You must comply with the following
requirements:
– The product must be installed using
a permanent connection.
– It must be possible to switch off the
permanent connection at all poles
via an on-site partition (e.g. via a
circuit breaker) that has a contact
gap of at least 3 mm.
– The product must be connected to
the protective conductor.
– When using the lower grommet, the
power supply terminal that was in-
stalled at the top at the factory can
be routed for the electrical connec-
tion in the lower section.
5.3.1 Carrying out the top electrical
connection
1. Guide the connection cable through the
upper grommet (2).
2. Connect the individual phases to L1,
L2, and L3 on the power supply ter-
minal (1).
3. Connect the PE protective conductor to
.
