7 Inspection and maintenance
18 Installation and maintenance instructions atmoMAG 0020189893_03
2. Open all of the hot water valves that are connected to
the product so that the product and lines drain until they
are completely empty.

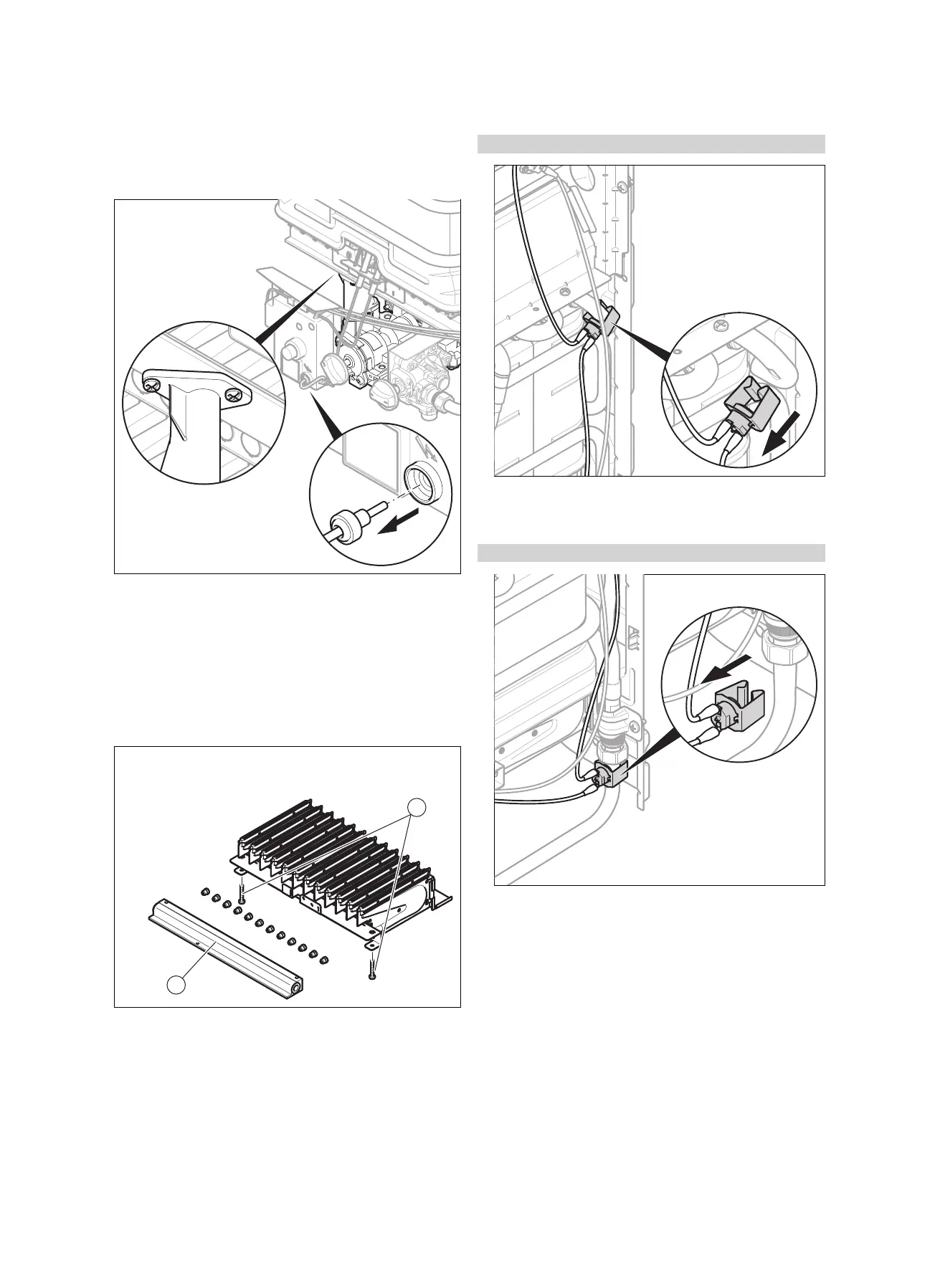

7.3 Removing the burner
1. Pull out the plug contact on the ignition electrode from
the connection socket on the electronics box.
2. Remove the two bolts from the gas pipe.
3. Loosen the two bolts that are used to secure the burner
to the back wall.
4. Raise the burner slightly and carefully pull the burner
forwards and out.
7.4 Removing the jet holder
1. Remove the two bolts (1) in order to remove the jet
holder.
2. Remove the jets from the jet holder (2).
3. Check the components of the jet holder (2) for damage
and dirt.
4. If successful, clean or replace soiled or damaged com-
ponents.
7.5 Removing the heat exchanger
Applicability: MAG 11-0/1 XI
▶ Remove the safety cut-out that is secured using
a clamp on the connection pipe above the heat
exchanger.
Applicability: MAG 14-0/1 XI
▶ Remove the safety cut-out that is secured using
a clamp on the connection pipe below the heat
exchanger.
