2 Notes on the documentation
6 Installation and maintenance instructions atmoMAG 0020189893_03
2 Notes on the documentation
2.1 Observing other applicable documents
▶ You must observe all the operating and installation in-
structions included with the system components.
2.2 Storing documents
▶ Pass these instructions and all other applicable docu-
ments on to the system operator.
2.3 Validity of the instructions
These instructions apply only to:
Product article number
Applicability: Austria
MAG AT 11-0/1 GX H
0010006905
MAG AT 14-0/1 GX H
0010006906
Product article number
Applicability: Germany, Switzerland
MAG 11-0/1 XI H
0010006919
MAG 11-0/1 XI L
0010006920
MAG 11-0/1 GX P
0010006921
MAG 14-0/1 XI H
0010006922
MAG 14-0/1 XI L
0010006923
MAG 14-0/1 GX P
0010006924
MAG 11-0/1 GX H
0010006925
MAG 11-0/1 GX L
0010006926
MAG 14-0/1 GX H
0010006927
MAG 14-0/1 GX L
0010006928
MAG 11-0/1 XI P
0010019375
MAG 14-0/1 XI P
0010019376
3 Product description
3.1 Information on the identification plate
The identification plate is mounted at the front of the atmo-
spheric sensing device, under the product casing, at the fact-
ory.
Applicability: Germany, Austria, Switzerland
Information on the
identification plate
Meaning
MAG Product category
11/14 Power in l/min
-0/1 Chimney connection/product generation
G With electrical ignition and generator
I With electrical ignition and battery
X With flue gas sensor
atmoMAG Product series
Type B11 BS Approved unit type
Cat II Multiple gas type unit
Information on the
identification plate
Meaning
2 ELL 3P (DE)
2H 3P (AT, CH)
Gas-fired boiler category
G20/25/31 (DE)
G20/31 (AT, CH)
Permitted gas types with connection
pressures
P
nom.
Maximum heat output
P
min.
Minimum heat output
Q
nom.
Maximum heat input
Q
min.
Minimum heat input
P
w max.
Maximum permissible water pressure
Serial number 7th to 16th digit = product article number

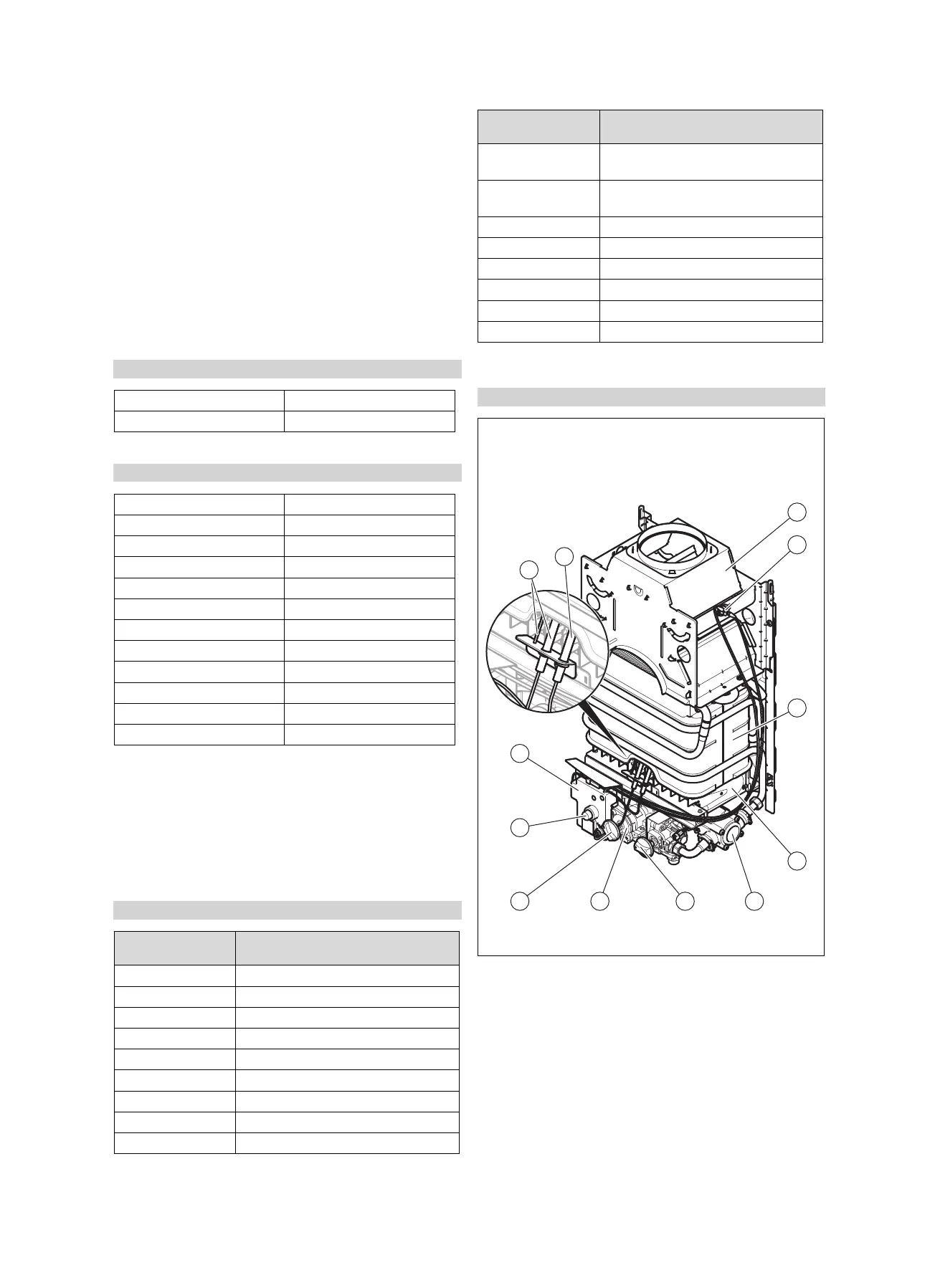

3.2 Product design
Applicability: MAG 11-0/1 GX
2
4
8
9
10
12
67
3
1
5
11
1 Atmospheric sensing
device
2 Flue gas sensor
3 Heat exchanger
4 Burner
5 Generator
6 Temperature selector
7 Gas valve
8 Power switch
9 Main switch
10 Switch box
11 Ignition electrode
12 Monitoring electrode
