Appendix
0020189893_03 atmoMAG Installation and maintenance instructions 23

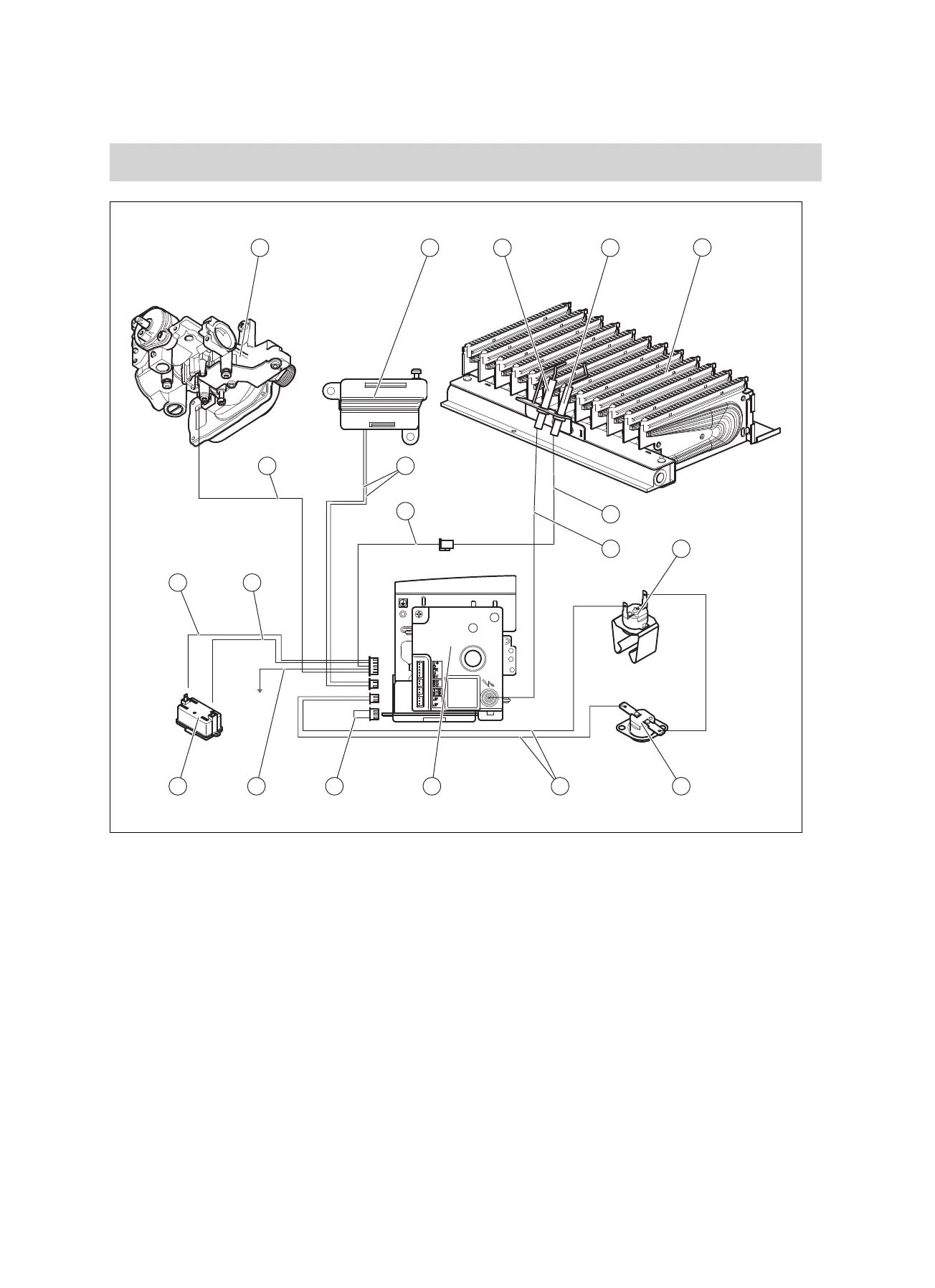

D Type XI connection diagram
Applicability: MAG 11-0/1 XI
OR MAG 14-0/1 XI
1 2 3 4
5
6
7 8
912 111314
15 16
19
17
18
10
1 Gas valve
2 Micro switch
3 Ignition electrode
4 Monitoring electrode
5 Burner
6 Red connection cable
7 Transparent connection cable
8 Safety overheat cut-off device
9 Flue gas sensor
10 Red connection cable
11 Electronics box
12 Yellow connection cable
13 Black connection cable
14 1 x 1.5 V
15 Red connection cable
16 Black connection cable
17 Blue connection cable
18 Orange connection cable
19 Green connection cable
