4 Installation
8 Installation and maintenance instructions atmoMAG 0020189893_03
Applicability: MAG 14-0/1 XI
2
4
8
12
67
3
1
5
9
10
11

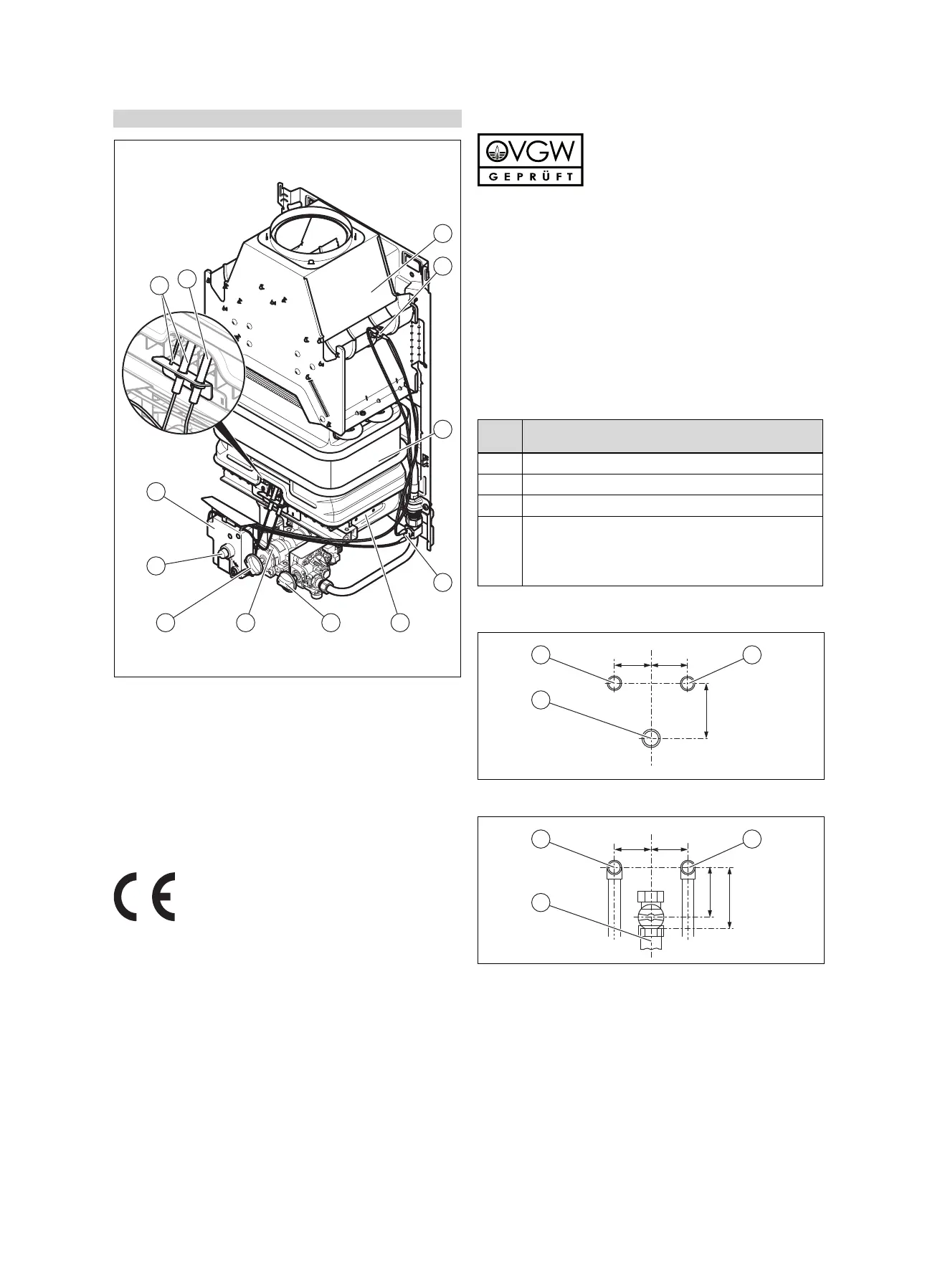

1 Atmospheric sensing
device
2 Flue gas sensor
3 Heat exchanger
4 Safety overheat cut-off
device
5 Burner
6 Temperature selector
7 Gas valve
8 Power switch
9 Main switch
10 Electronics box with
battery compartment
11 Ignition electrode
12 Monitoring electrode
3.3 CE label
The CE label shows that the products comply with the basic
requirements of the applicable directives as stated on the
identification plate.
The declaration of conformity can be viewed at the manufac-
turer's site.
3.4 ÖVGW symbol
The ÖVGW symbol shows that the products comply with
all of the requirements for assigning the ÖVGW symbol in
accordance with the identification plate.
4 Installation
4.1 Checking the scope of delivery
1. Remove the product from its box.
2. Check that the scope of delivery is complete and intact.
4.1.1 Scope of delivery
Num-
ber
Description
1 Gas-fired instantaneous water heater
1 Connection accessories that are included
1 Enclosed documentation
1
XI units only:
Battery (monocells D/LR20)
Note
The battery is inserted in the lower Styrofoam cushion.
4.2 Wall pre-installation
60 60
a
3 1
2
Flush mounting
60 60
c
b
3
1
2
Surface installation
▶ Install the connections as follows:
– 1 = Cold water connection R 1/2
– 2 = Gas connection
– 3 = R 1/2 hot water connection
▶ Observe the following clearances for all product types:
