MOUNTING AND INSTALLATION

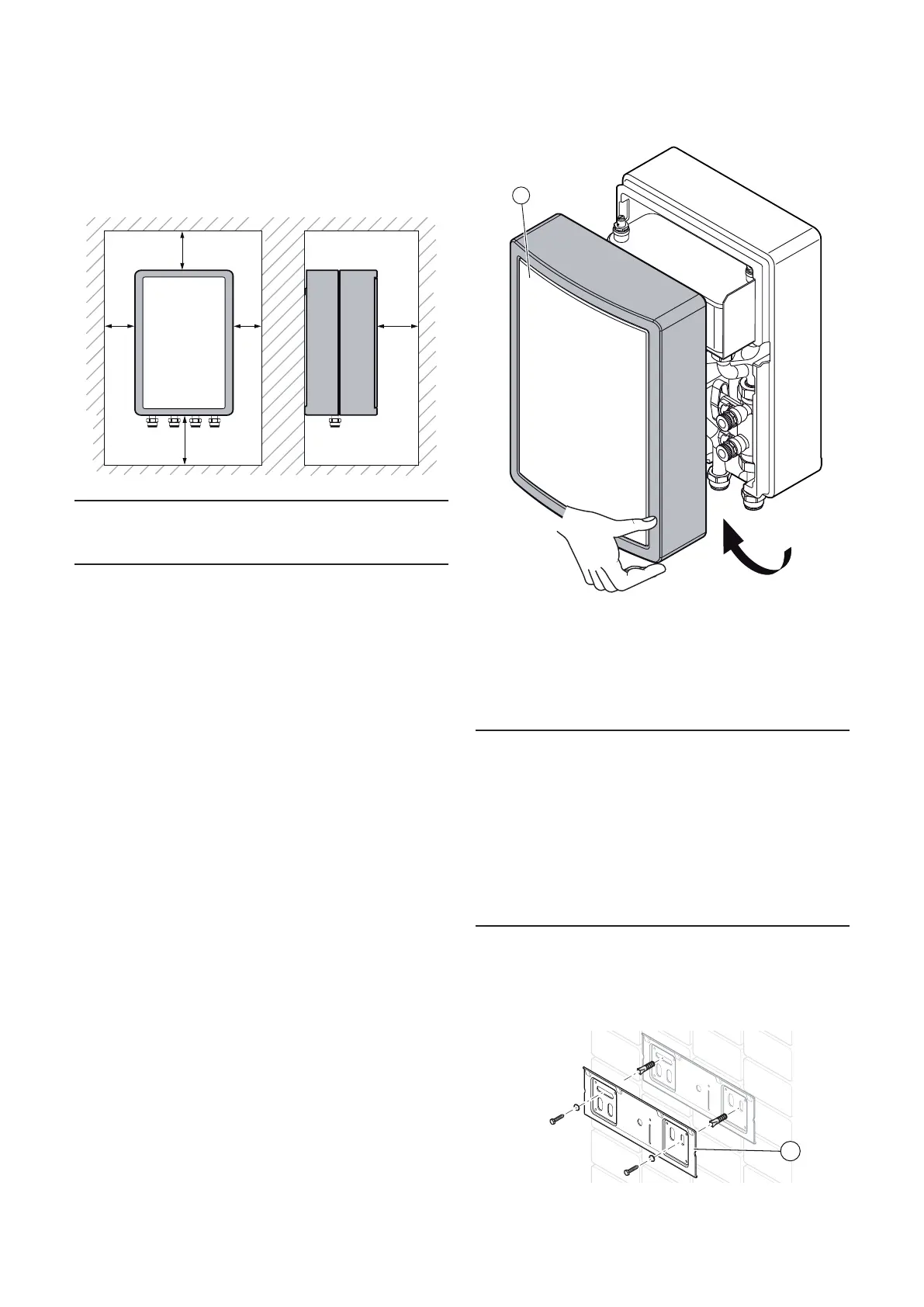

4.1.2.3 Mounting clearances
∙ Ensure the distances indicated on the diagram.
This will ensure that the connections to the water can be
accessed and inspected.
Additional clearances around the appliance may be
advantageous for its installation and maintenance.
20
min.
20
min.
20
min.
100
min.
>600*
i
Notes
* Clearance necessary for the installation or
maintenance of the appliance
.
4.1.3 Considering the product location
4.1.3.1 Surrounding conditions
∙ Do not install the product above another product that
could damage it (for example, above a cooker that might
emit steam or grease) or in a room, which has a lot of
dust in the atmosphere which is corrosive..
∙ Do not install the product under another product that
might leak.
∙ Make sure that the room where you want to fi t the
product is suffi ciently protected against frost.
4.1.3.2 Properties of the mounting surface
∙ Before choosing a site for the product, carefully read
the safety warnings and instructions in the operating
instructions and installation instructions.
∙ Ensure that the wall to which the product will be mounted
on is structurally safe in order to support the weight of the
product.
4.2 Mounting the product
4.2.1 Removing the casing
1
Key
1 Front casing
∙ Remove the front casing (1).
4.2.2 Wall-mounting of the product
a
Danger!
Danger to life if the load-bearing
capacity of the fixing elements used is
insufficient!
If the fixing elements do not have sufficient
load-bearing capacity, the product can
come loose and fall down.
• When fitting the product, ensure that the
fixing elements have a sufficient load-
bearing capacity.
∙ Determine the assembly location.
∙ Drill the holes to receive the fastenings.
∙ Fix the hanging bracket on the wall.
1
Key
1 Hanging bracket
