6
EN
MOUNTING AND INSTALLATION
3.3 Data plate description
The data plate certifi es the country where the product is
intended to be installed.
The data plate contains the following data:
Abreviation/
symbol
Description
Country code:
"GB"
Country where the product is intended to be
installed
Serial-no
Commercial name of the product and its serial
number
Code Product code of the appliance
PMS Central heating maximum pressure
V/Hz Electrical voltage / frequency
A Current
W Maximum electrical consumption
IP Electric protection index
See chapter "CE label"
See chapter "Recycling "
4 Mounting and installation
i
Notes
All the drawings dimensions are shown in
mm.
4.1 Preparing the mounting and
installation
4.1.1 Delivery and installation on site
4.1.1.1 [product] unpack
∙ Remove the product from its box.
∙ Remove the protective fi lm from all parts of the product.
4.1.1.2 Check scope of delivery
∙ Please check the scope of delivery for completeness.
- 1 Hydraulic module
- 1 bag of accessories
- Attachment bracket (x1)
- Flat gasket 1" (x6)
- Flat gasket 1"1/4 (x2)
- 1 bag of documents (1 operating and installation)
4.1.2 Observing distances and mounting
clearances

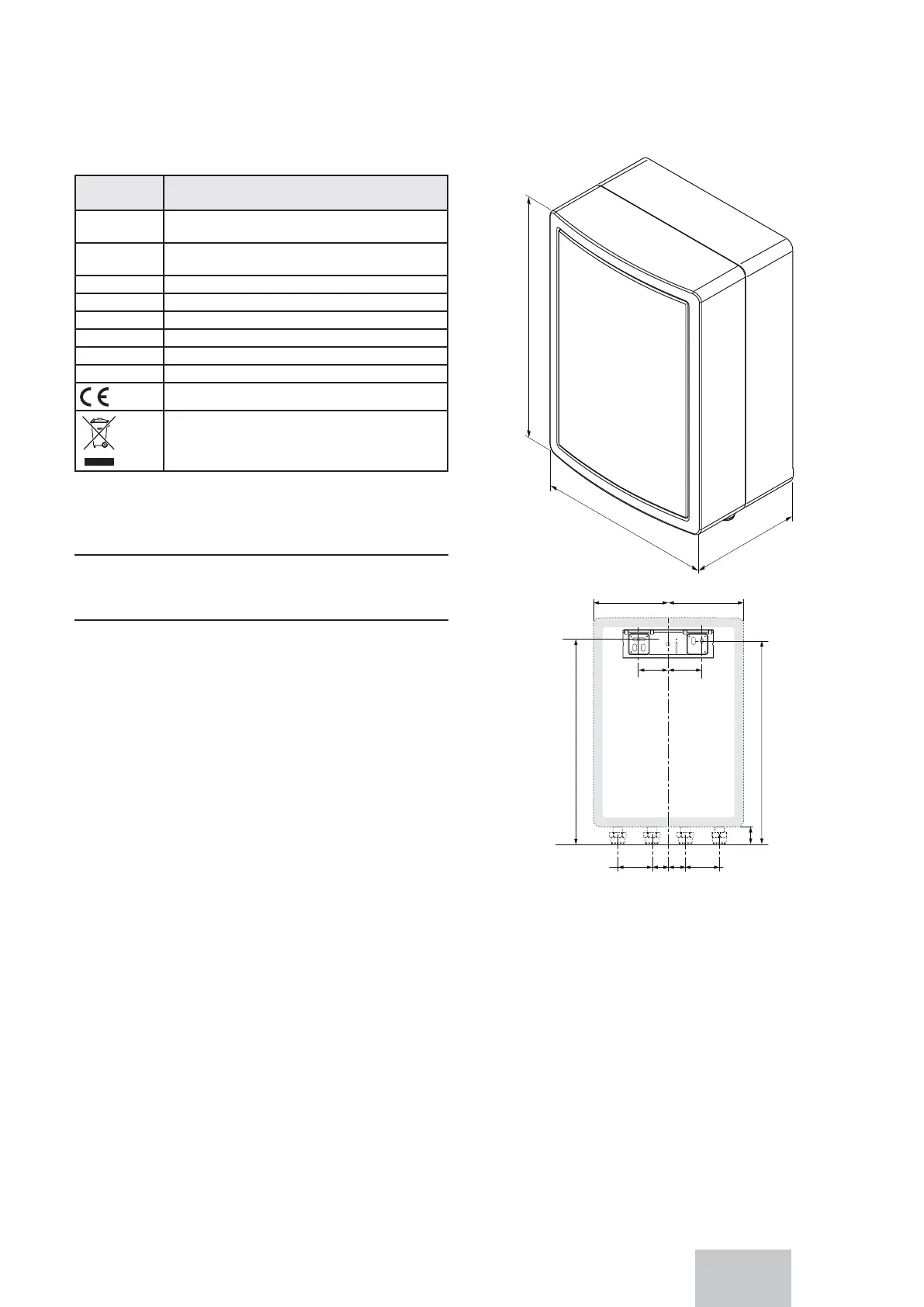

4.1.2.1 Product and connection dimensions
360
500
250
180 180
87 101
40
447
452
4081.5 81.540
4.1.2.2 Distance to infl ammable parts
∙ Make sure that no item that can easily catch fi re is in
direct contact with the components, which may reach a
temperature greater than 80°C.
∙ Make sure that there is a minimum distance of 200 mm
between items that can easily catch fi re and the hot
surfaces.
