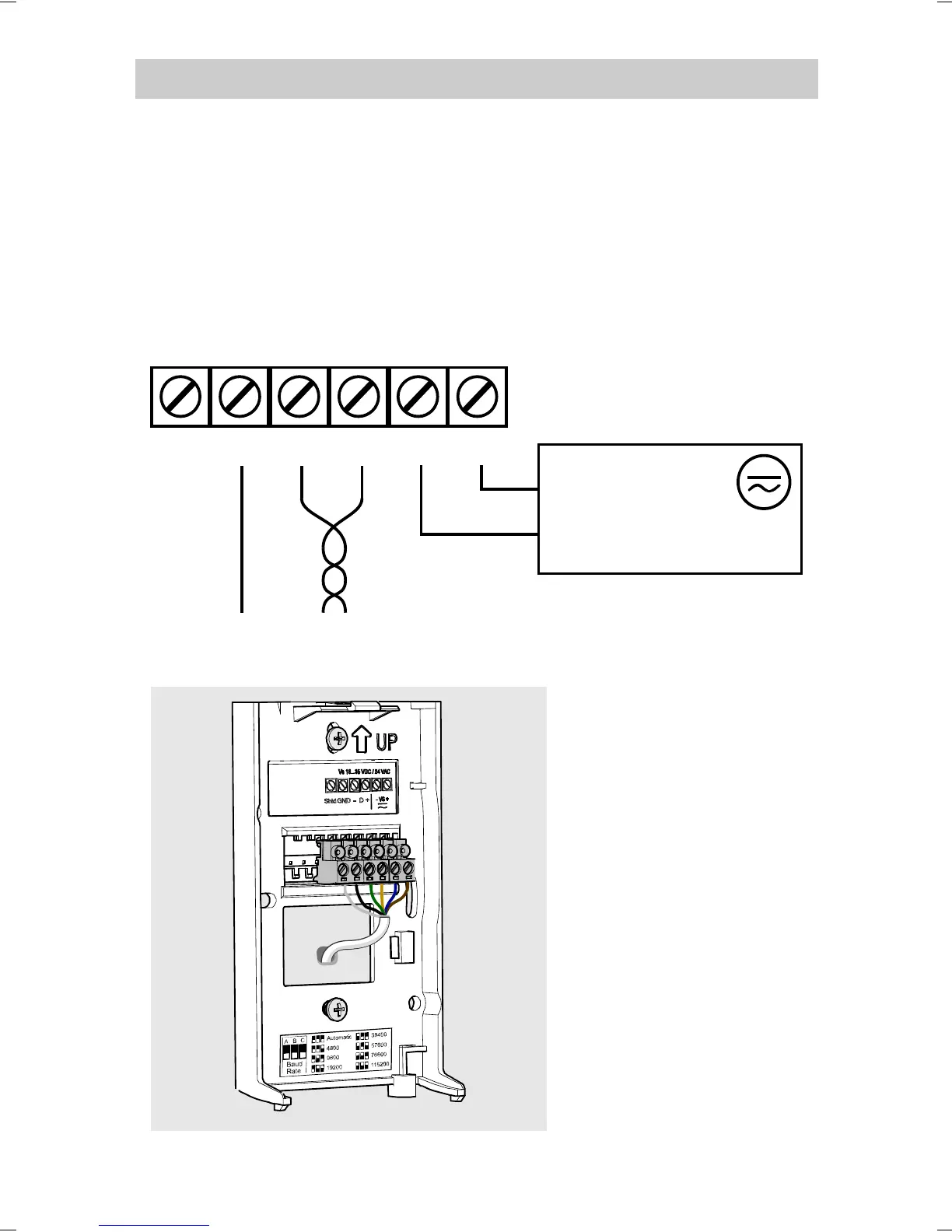

Wiring
When wiring, observe the terminal labels on the
mounting base. Maximum wire size is 2 mm
2
(AWG14).
The RS-485 line of the transmitter is isolated from the
power supply. A separate ground reference terminal
(
) is provided for the RS-485 connection.
If you are using a shielded cable, you can use the
terminal to hold the exposed part of the shield. The
Shld terminal is floating (not electrically connected).
D- -VsD+ +Vs
+
-
Power supply
18 ... 35 VDC
or 24 VAC ±20%
RS-485
Shld GND
You can bring the cable
to the housing from
above or from
behind (recommended).
If you are wiring a
GMW90 series
transmitter from above,
use a < Ø 5 mm cable,
and route it from the
left side of the
mounting base.
