Chapter 2 __________________________________________________________ Product Overview
VAISALA_______________________________________________________________________ 23
1508-122

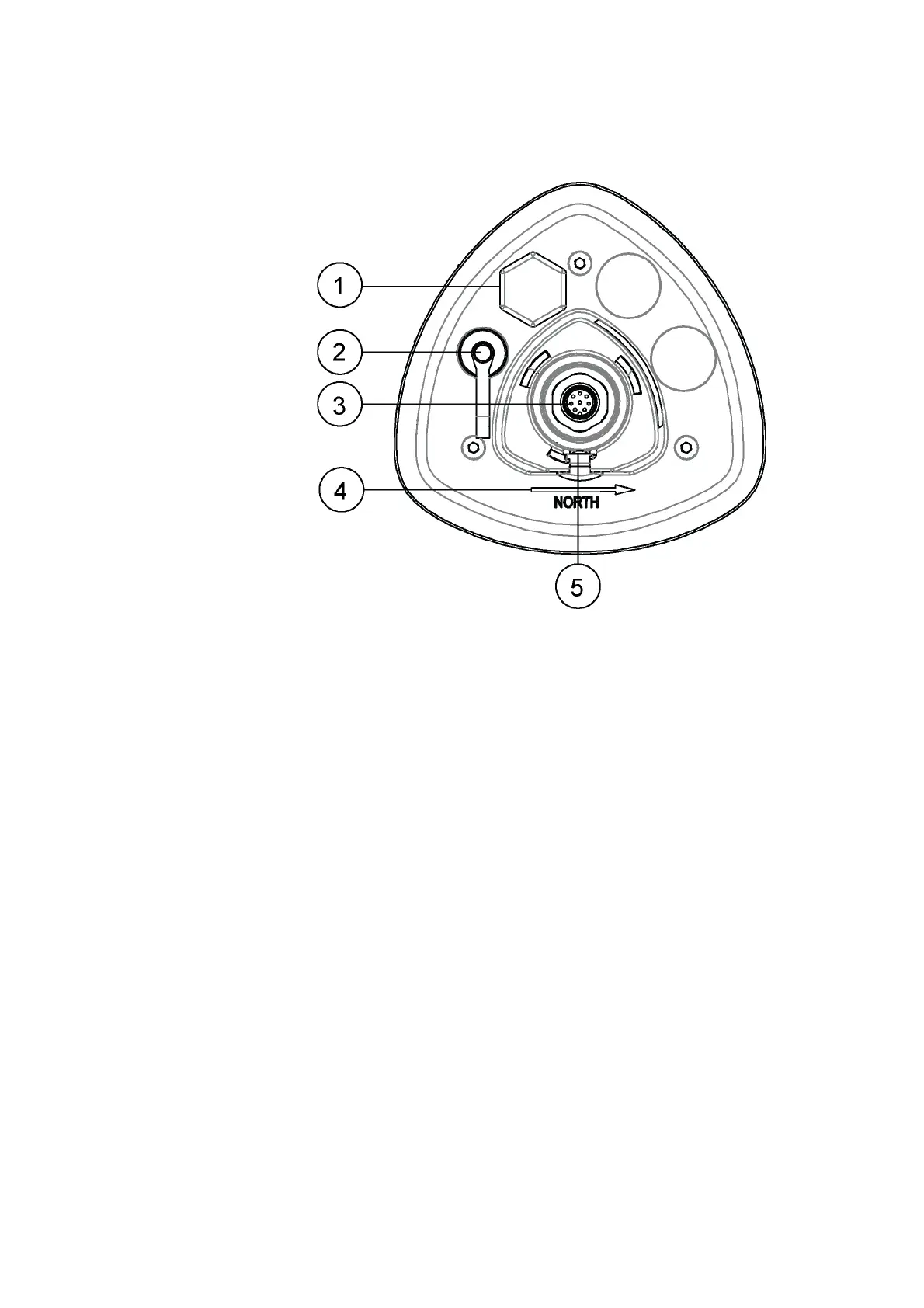

Figure 8 Bottom of WXT536
1 = Opening for cable gland (if unused, cover with a hexagonal
plug). Watertight cable gland (optional, included in the
Bushing and Grounding Kit)
2 = 4-pin M8 connector for Service Port
3 = 8-pin M12 connector for power or data communications cable
4 = Alignment direction indicator arrow
5 = Fixing screw and chassis grounding point
