Valeo DD 430 User Manual

ELECTRIC SYSTEM DD 430

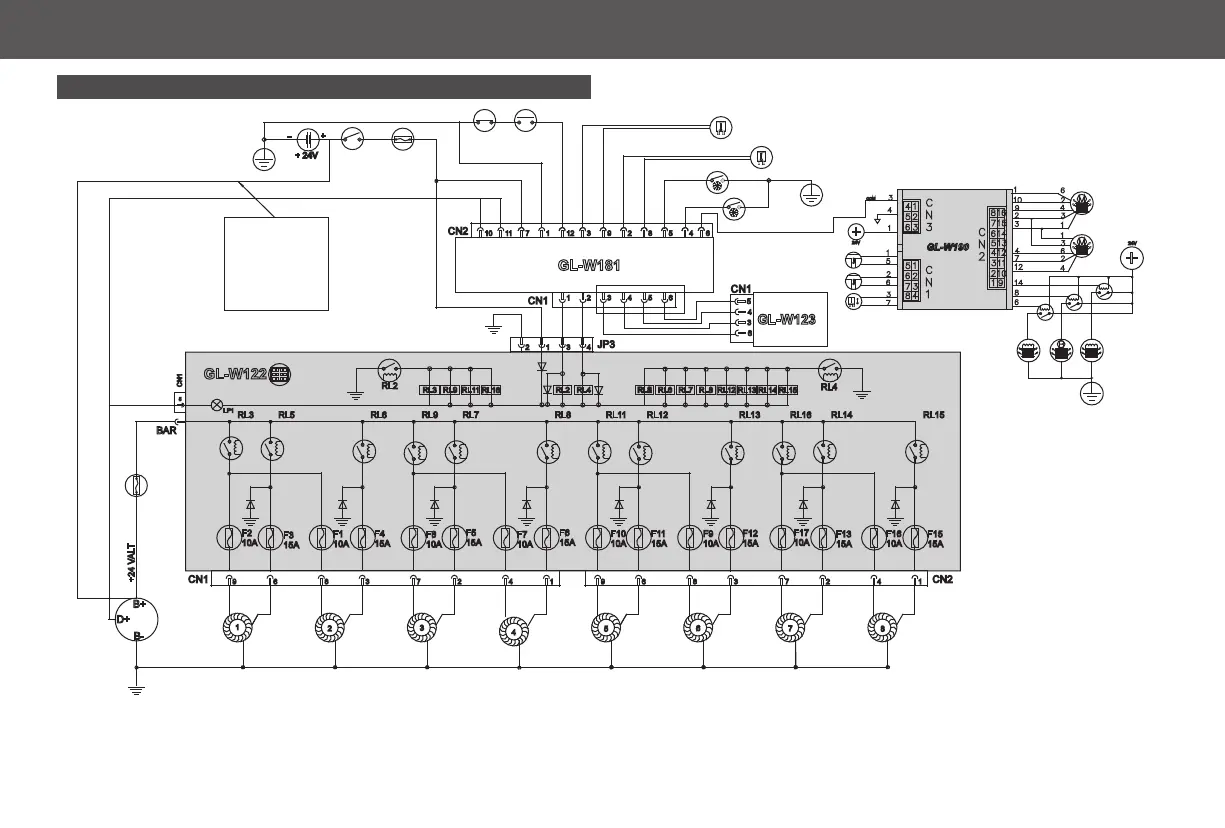

3.2- Electric Diagram CONTROL BOARD GL-W122 / 24V
(BR/1,5)
(AZ/1,5)
(VM/1,5) (MA/1,5) (VD/1,5) (BR/1,5) (BR/1,5) (VD/1,5) (LR/1,5)
(LI/1,5)
(LI/1,5)
(LI/1,5)
(VM/1,5)
(MA/1,5)
(AZ/1,5)
OBSERVATION: as you are handling with commutation high current electric device, it is necessary to install it in a
ventilated point, not closed built, far from fuel, inflammable lines, risky spot, fire and explosion material. The device is
not waterproof. Water spray and drops can damage it.
Plant code: 007-00022-000
Lower
Lower
Lower
Lower
Lower
Upper
Upper
Upper
Upper
Upper
OBS.: depending
the combination
between CHASSIS
and ALTERNATOR,
do not connect
parallel.
54
