ELECTRIC SYSTEM
DD 430

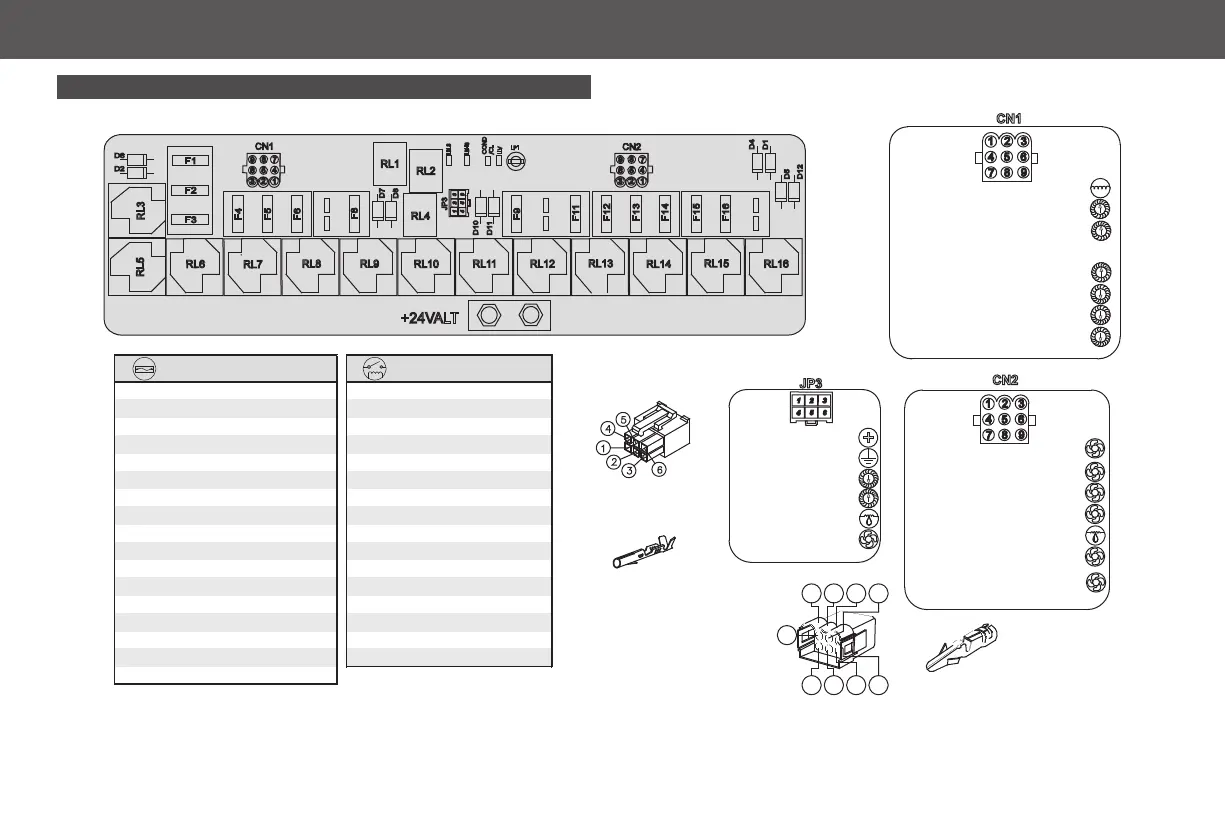

3.3- Electric CONTROL BOARD GL-W123 / 24V
Plant code: 007-00023-000
F1 LOW LOWER EVAP. 2 10A RL1 CONDENSER CONTROL
F2 LOW LOWER EVAP. 1 10A RL2 LOW LOWER EVAP. CONTROL
F3 HIGH LOWER EVAP. 1 15A RL3 LOW LOWER EVAP. 1 AND 2
F4 HIGH LOWER EVAP. 2 15A RL4 HIGH LOWER EVAP. CONTROL
F5 HIGH LOWER EVAP. 3 15A RL5 HIGH LOWER EVAP. 1
F6 CLUTCH 5A RL6 HIGH LOWER EVAP. 2
F7 N.C. RL7 HIGH LOWER EVAP. 3
F8 LOW LOWER EVAP. 3 10A RL8 CLUTCH
F9 CONDENSER 5 20A RL9 LOW LOWER EVAP. 3
F10 N.C. RL10 VALVE OF LIQUID
F11 CONDENSER 1 20A RL11 CONDENSER 5
F12 CONDENSER 2 20A RL12 CONDENSER 1
F13 CONDENSER 3 20A RL13 CONDENSER 2
F14 VALVE OF LIQUID 5A RL14 CONDENSER 3
F15 CONDENSER 4 20A RL15 CONDENSER 4
F16 CONDENSER 6 20A RL16 CONDENSER 6
F17 N.C.
FUSE RELÉS
1 - Clutch 3,5A@28VDC
2 - High lower evap. 3 11A@28VDC
3 - High lower evap. 2 11A@28VDC
4 – N.C.
5 - D+ (OPTIONAL)
6 - High lower evap. 1 11A@28VDC
7 - Low lower evap. 3 7,5A@28VDC
8 - Low lower evap. 2 7,5A@28VDC
9 - Low lower evap. 1 7,5A@28VDC
1 - Condenser 4 11A@28VDC
2 - Condenser 3 11A@28VDC
3 - Condenser 2 11A@28VDC
4 - Condenser 6 11A@28VDC
5 - Valve of liquid 3,5A@28VDC
6 - Condenser 1 11A@28VDC
7 – N.C.
8 - Condenser 5 11A@28VDC
9 – N.C.
1 - + 24VBAT
2 – GROUND
3 – Low lower evap. commun.
4 - High lower evap. commun.
5 - Valve of liquid commun.
6 - Condenser commun.
OBSERVATION: as you are handling with commutation high current electric device, it is necessary to install it in a
ventilated point, not closed built, far from fuel, inflammable lines, risky spot, fire and explosion material. The device is
not waterproof. Water spray and drops can damage it.
MALE TERMINAL
FOR CABLES
from 0.5 up to 2.5 mm
2
ref. AMP: 880685-2
5
4
123
78
6
9
9 WAY FEMALE CONNECTOR
ref. AMP: 880125-0
FEMALE TERMINAL
MINI FIT MOLEX
REF. 3900-0059
MALE CONNECTION
6 WAY MOLEX
REF. 3901-2060
