GL - W180
ELECTRIC SYSTEM DD 430

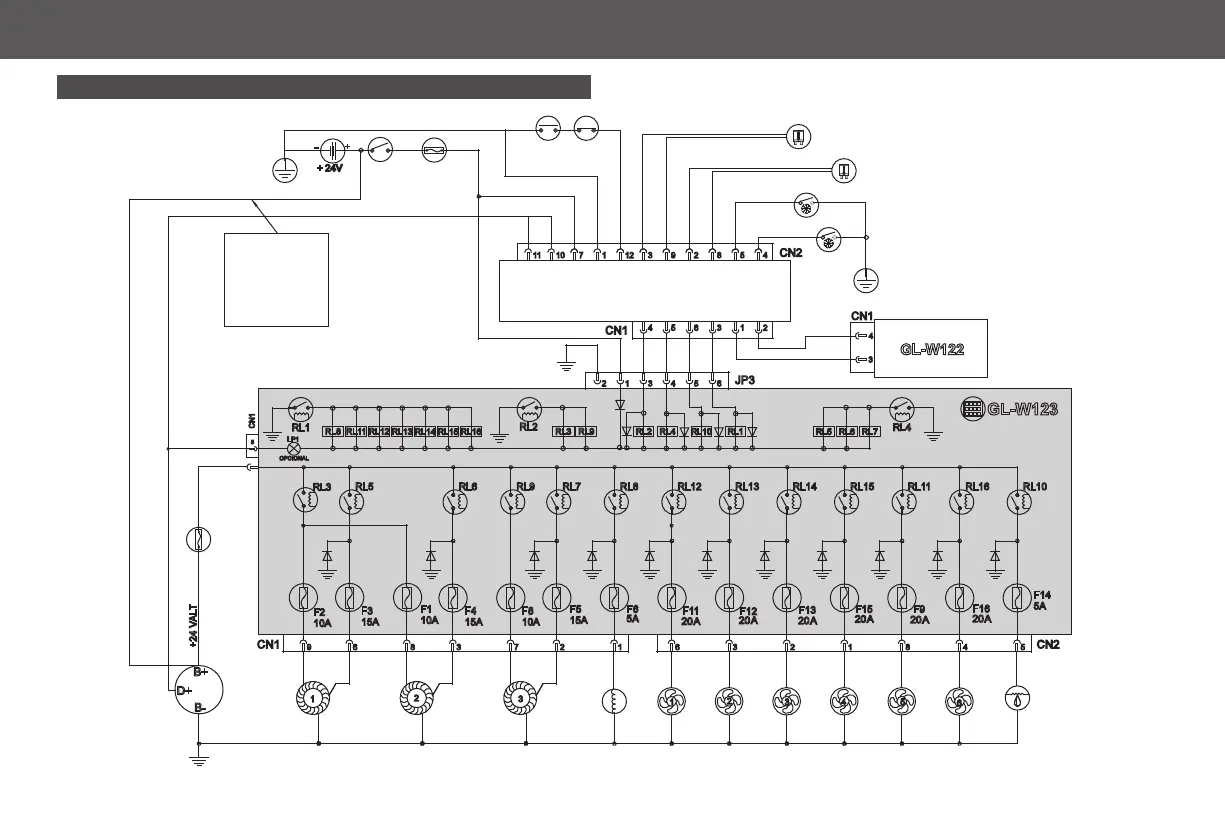

3.4- Electric Diagram CONTROL BOARD GL-W123 / 24V
Plant code: 007-00023-000
OBSERVATION: as you are handling
with commutation high current electric
device, it is necessary to install it in a
ventilated point, not closed built, far
from fuel, inflammable lines, risky
spot, fire and explosion material. The
device is not waterproof. Water spray
and drops can damage it.
Lower
Lower
Upper
Upper
OBS.: depending
the combination
between CHASSIS
and ALTERNATOR,
do not connect
parallel.
