Valeo TM31 - Page 9

- 7 -

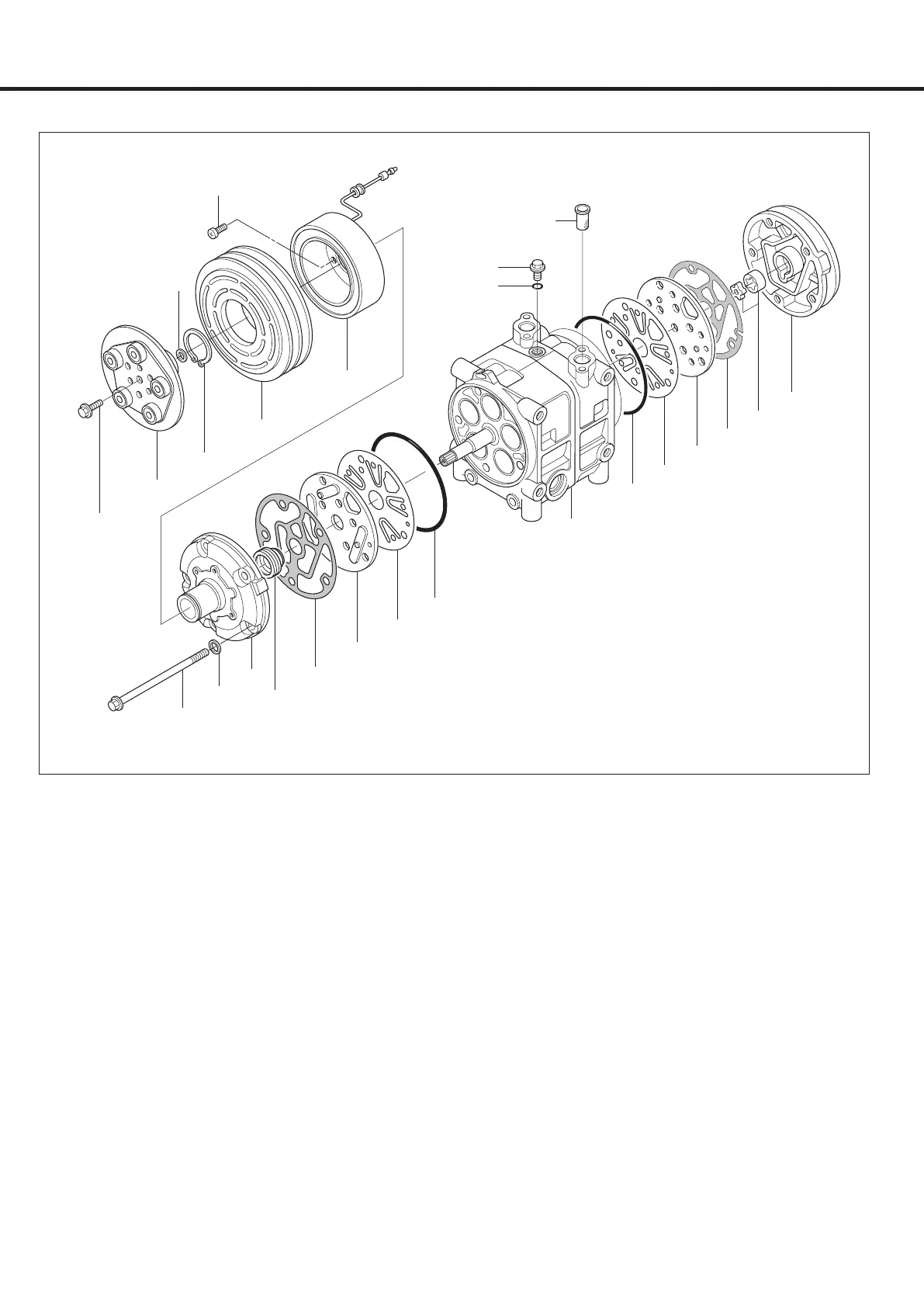

1- Product description - Exploded view
9
10
8
25
24
23
22
21
20
16
15
7
5
6
3
4
2
1
14
13
12
11
19
17
18
1. Center bolt
2. Armature assembly
3. Adjusting shim
4. Snapring
5. Pulley assembly
6. Screw
7. Field coil
8. Bolt
9. Washer
10. Front cylinder head
11. Shaft seal assembly
12. Gasket
13. Valve plate assembly
14. Suction valve
15. O-ring
16. Cylinder shaft assembly
17. Oil filler plug
18. O-ring
19. Strainer (option)
20. O-ring
21. Suction valve
22. Valve plate assembly
23. Gasket
24. Gear pump
25. Rear cylinder head
