4.9.2 The minimum allowable distance from the outside of the appliance fascia to a
corner wall having combustible material or any other combustible surface which
projects beyond the front of the appliance is shown in figure 5. A 10mm access
clearance from a non-combustible surface is necessary at the left side.
Page 15
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

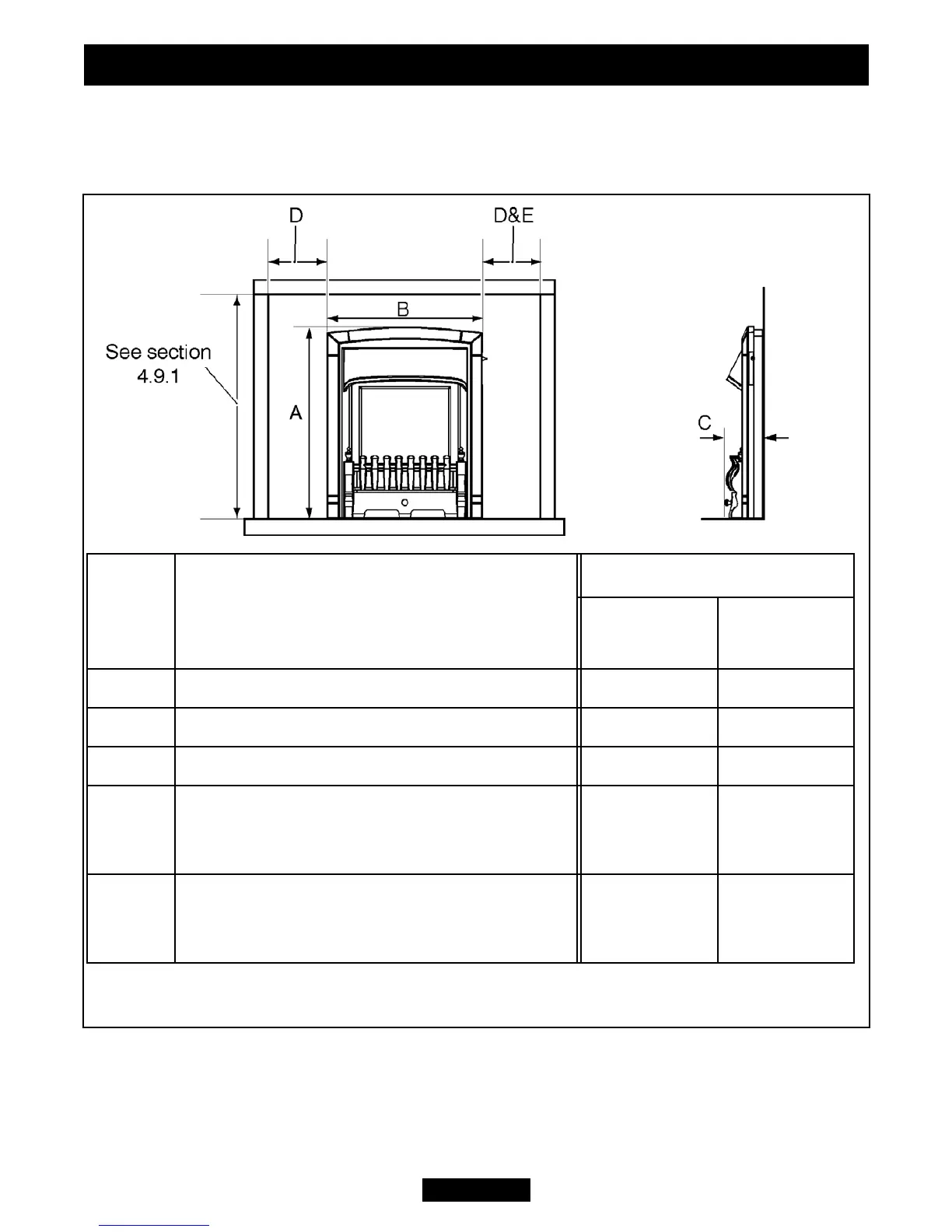

Figure 5. (The fascia may differ from that shown and dimensions are subject to
manufacturing tolerances)
Key Description
Model
Homeflame
Dream
Homeflame
Petrus
A Height (mm) 636 636
B Width (mm) 518 518
C Depth into room (mm) 94 94
D
Minimum mandatory clearance
to combustible surfaces projecting
beyond the front of appliance (mm).
100 100
E
Recommended clearance to non-
combustible surfaces for access purposes
(mm).
50 50
