17. FIREFRONT CASTING INSTALLATION
17.1 Fitting the Petrus rear screen assembly.
The assembly instructions are contained in the fascia pack.
17.2 Fitting the Petrus fire front casting.
1. Remove the fire front from its packaging.
2. The rear of the fire front may be fitted
with hanging screws or they may be
supplied in the fire front packaging. Where
they are not already fitted insert them into
the lower holes on both sides of the
firefront. The distance between the firefront
and the underside of the screw heads
should be approximately 10mm. The
screws can be adjusted to obtain the

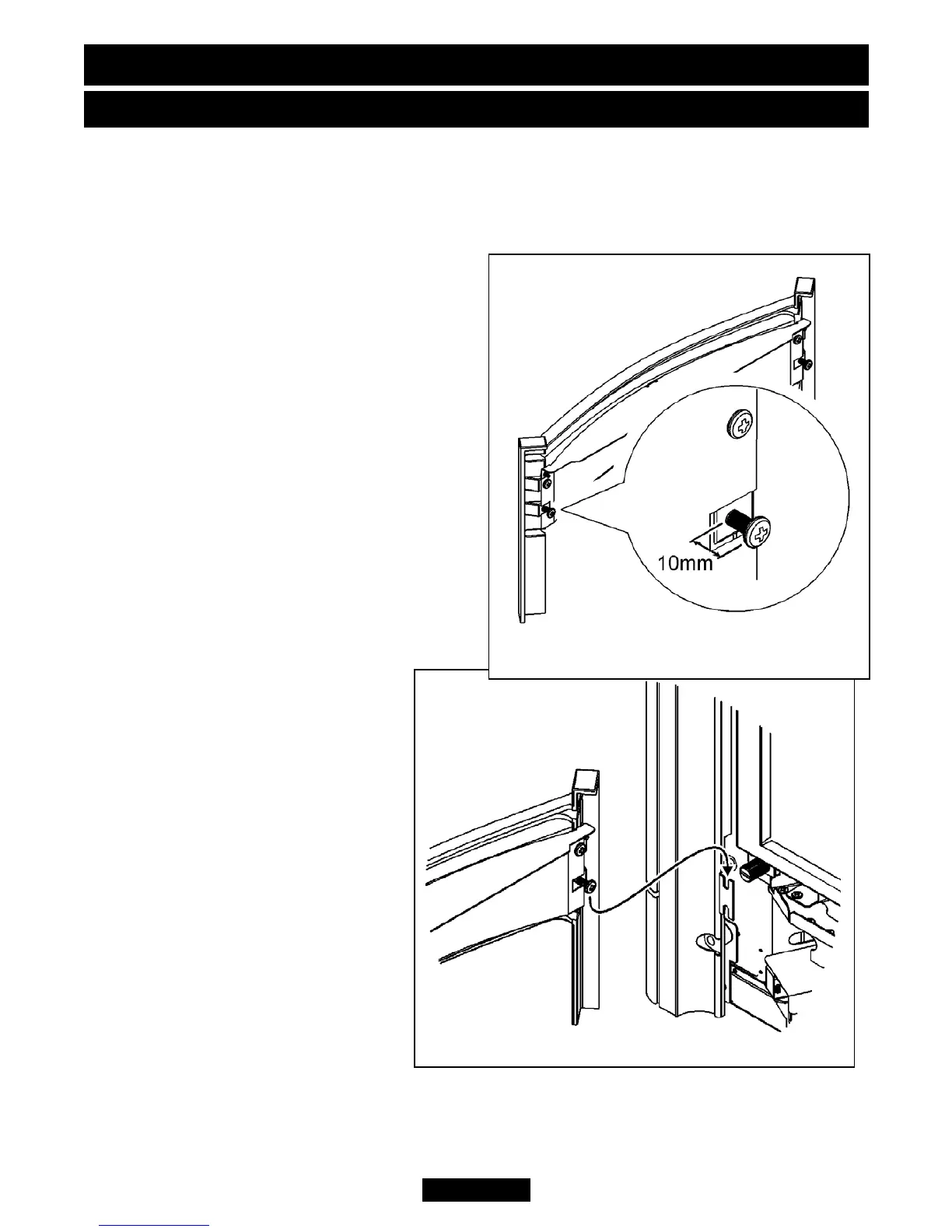

required fit (See figure 32).
3. Hang the firefront on the keyhole slots on
the heater (See figure 33).
4. Position the ash pan cover beneath the
firefront.
17.3 Fitting the Dream rear screen.
The assembly instructions are
contained in the fascia pack.
17.4 Fitting the Dream firefront
casting.
1. Place the firefront casting
centrally on the hearth in front of
the fascia.
2. Place the bottom front cover
casting in position below the
firefront casting.
Page 37
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Figure 33.
Figure 32.
