Valor Fires 963 - 15 Fitting the Heat Baffle; 16 Fitting the Fascia; Dream and Petrus Models

15. FITTING THE HEAT BAFFLE

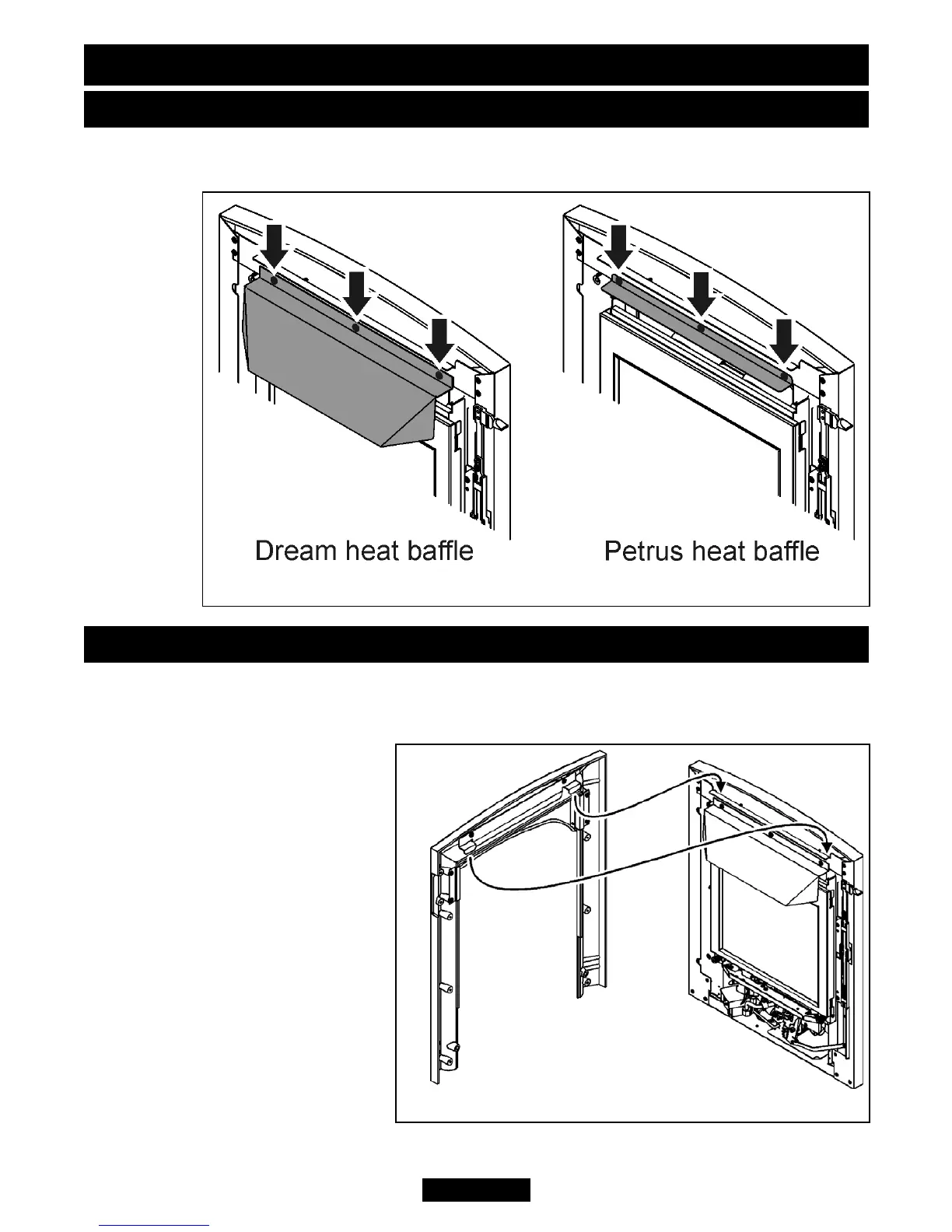

1. The fire is supplied with a heat baffle. Locate the heat baffle to the top of the fire as
shown in figure 28.
16. FITTING THE FASCIA
16.1 Dream and Petrus models.
1. Locate the hanging brackets on the rear of the fascia onto the support bar at the
top of the fire (See figure 29).
Page 35
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Figure 29. (Shown with Dream fascia)
Figure 28.
