6. Refit in reverse order.
20.14 To remove the main burner injector.
1. Remove the burner (See section 20.13, paragraphs
1-4).
2. Remove the burner clamping screw (See figure 47)
3. Unscrew the injector from the burner
4. Refit in the reverse order.
20.15 To remove the appliance from the fireplace.
1. Remove the burner unit (See section 20.6).
2. If the fire retention is as method 1 remove the fixing
screws.
If the fire retention is as method 2 (See section 10.2 of
installation instructions), slacken the hexagonal
adjusters on the cable retainers and unscrew the thumbscrews to release the cables.
Unscrew and remove the screws from the base of the convection box.
3. Refit as described in the relevant installation sections. Make sure gas soundness,
sealing, spillage test and performance are satisfactory.
Page 46
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

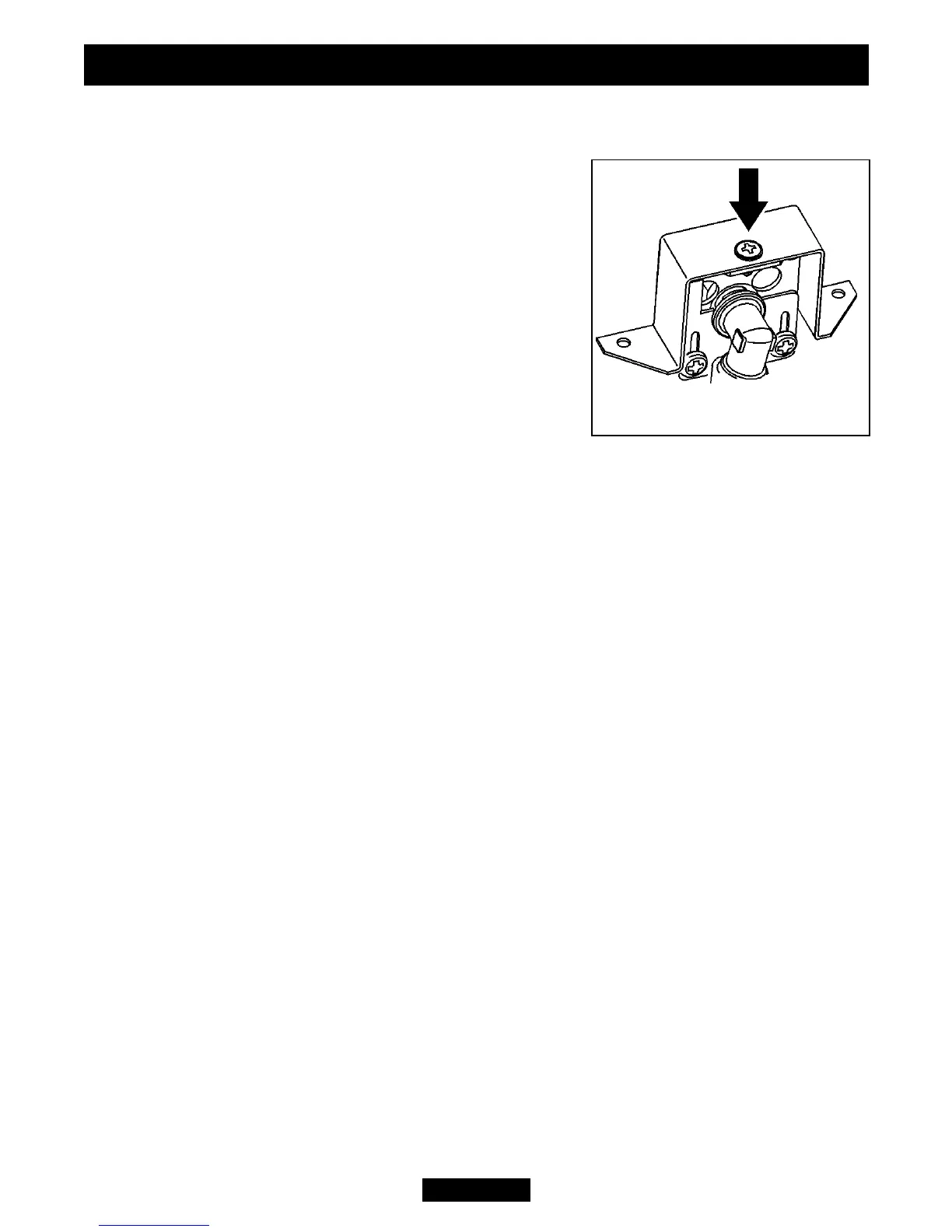

Figure 47.
