Valor Fires 963 - Petrus Model

2. Secure the bottom of the fascia unit to the
convection box with two M4 x 25mm screws and
washers (See figure 30).
16.2 Petrus model.
1. The Petrus fascia has a louvre assembly (See
figure 9 - Pack 1, contents).
2. Carefully locate the louvre assembly onto the
brackets at the top of the fascia (See figure 31). Be
careful not to damage the paint finish on the firefront.
Page 36
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

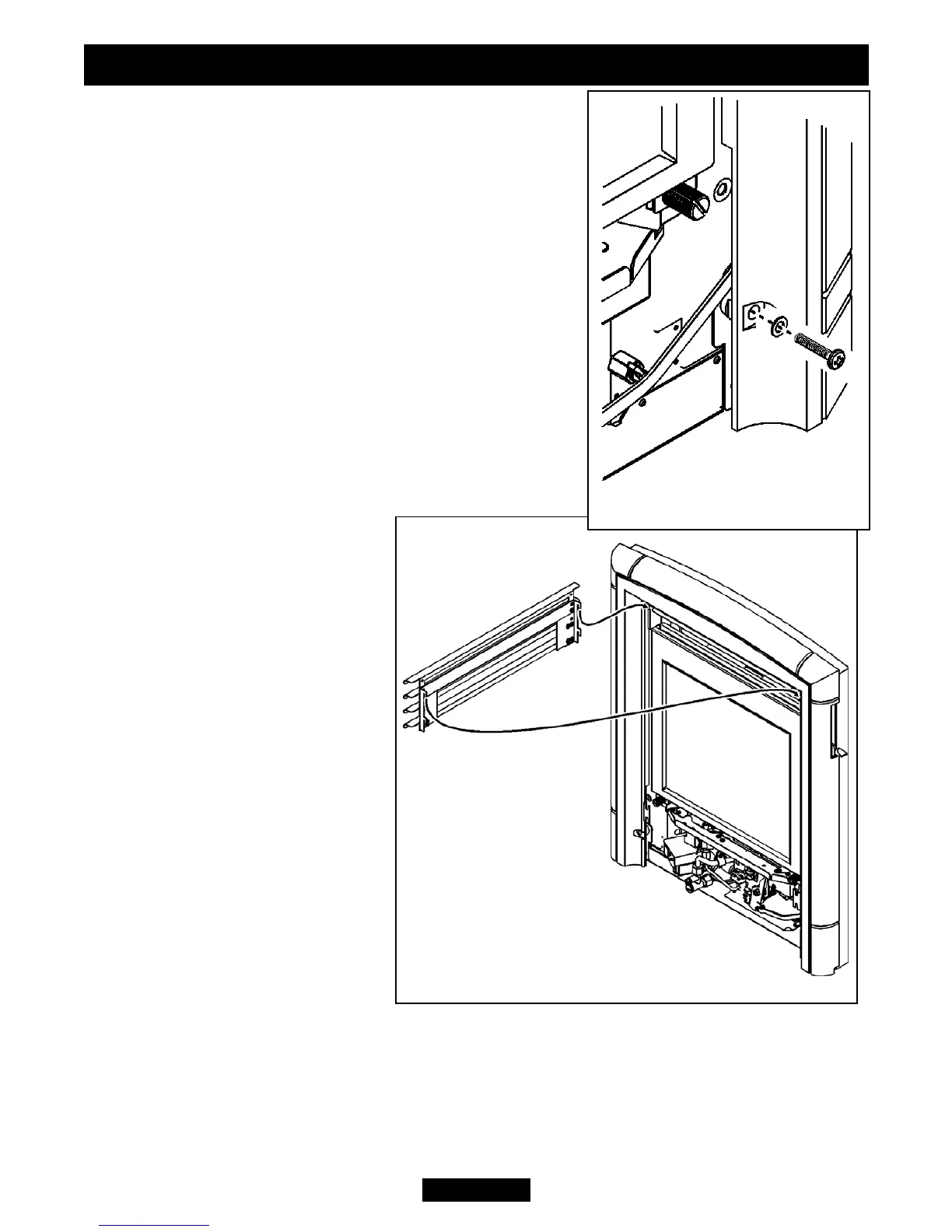

Figure 31.
Figure 30.
