5.9.2 Blakely Fascia - The minimum allowable distance from the outside of the
appliance fascia to a corner wall having combustible material or any other
combustible surface which projects beyond the front of the appliance is shown in
figure 3.
A 10mm access clearance from a non-combustible surface is necessary at the left
side.
INSTALLER GUIDE

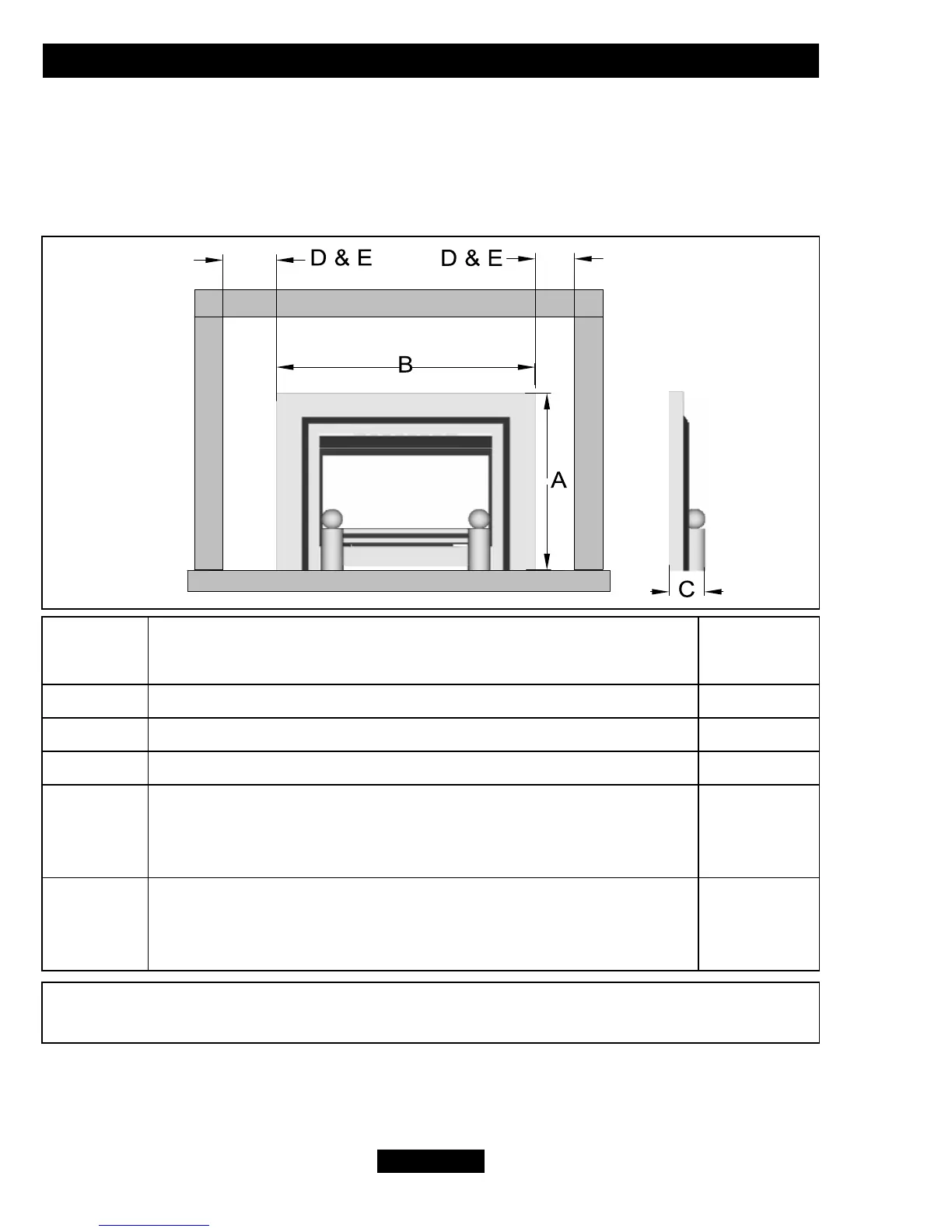

Figure 3. Blakely fascia - Appliance dimensions and clearances (Dimensions
are subject to manufacturing tolerances)
Key Description Blakely Model
A Height (mm) 680
B Width (mm) 930
C Depth into room (mm) 130
D
Minimum mandatory clearance to combustible surfaces
projecting beyond the front of appliance (mm)
75
E
Recommended clearance to non-combustible surfaces for access
purposes (mm)
50
