APPLIANCE DIMENSIONS
© GDC Group Ltd. 2013
Page 45
OWNER GUIDE
Key Description Blakely Model
A Height (mm) 680
B Width (mm) 930
C Depth into room (mm) 130
D
Minimum mandatory clearance to combustible surfaces
projecting beyond the front of appliance (mm)
75
E
Recommended clearance to non-combustible surfaces for access
purposes (mm)
50

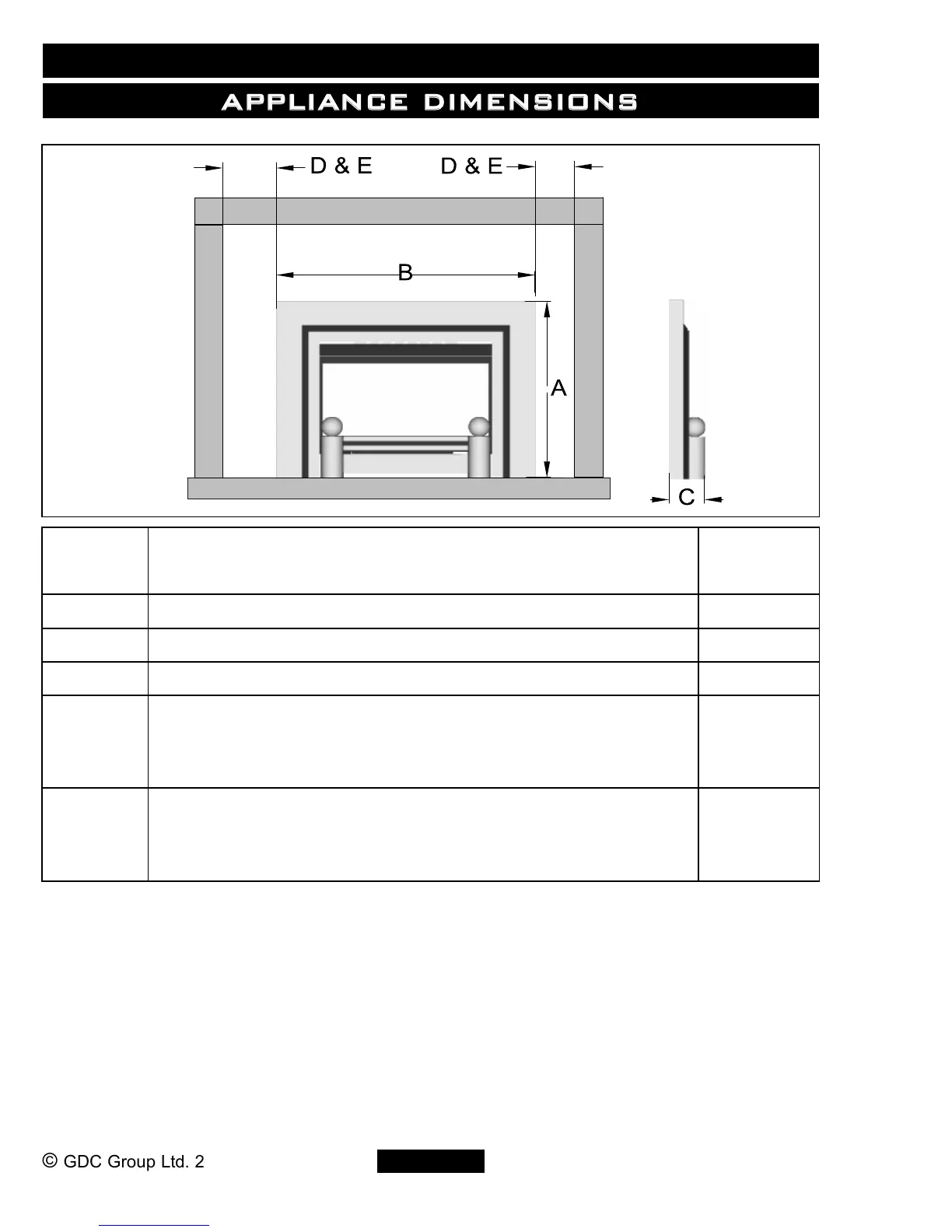

Figure 2. Blakely appliance dimensions and clearances (Dimensions are subject to
manufacturing tolerances)
