Valor 762 - Removing and Replacing Burner Injector; Removing Appliance from Fireplace

4. Support the elbow injector and unscrew the injector nut.
5. Lift the right hand side of the burner, slide it to the right and lift clear
6. Refit in reverse order.
18.11 To remove the burner injector.
1. Remove the burner (See section 18.11 points 1-5).
2. Unscrew the injector from the burner.
3. Refit in the reverse order.
18.12 To remove the appliance from the fireplace.
1. Follow steps 18.2 - 18.5.
2. Detach the burner unit and support tray from the convection box by removing six
screws (See figure 38). Lift the burner unit clear.
3. If the fire retention is as method 1 (See section 12.1 of this guide), remove the
screws.
If the fire retention is as method 2 (See section 12.2 of this guide), slacken the
hexagonal adjusters on the cable retainers and unscrew the thumbscrews to release
the cables.
4. Refit as described in the relevant installation sections. Make sure gas soundness,
sealing, spillage test and performance are satisfactory.
© GDC Group Ltd. 2013
Page 40
INSTALLER GUIDE

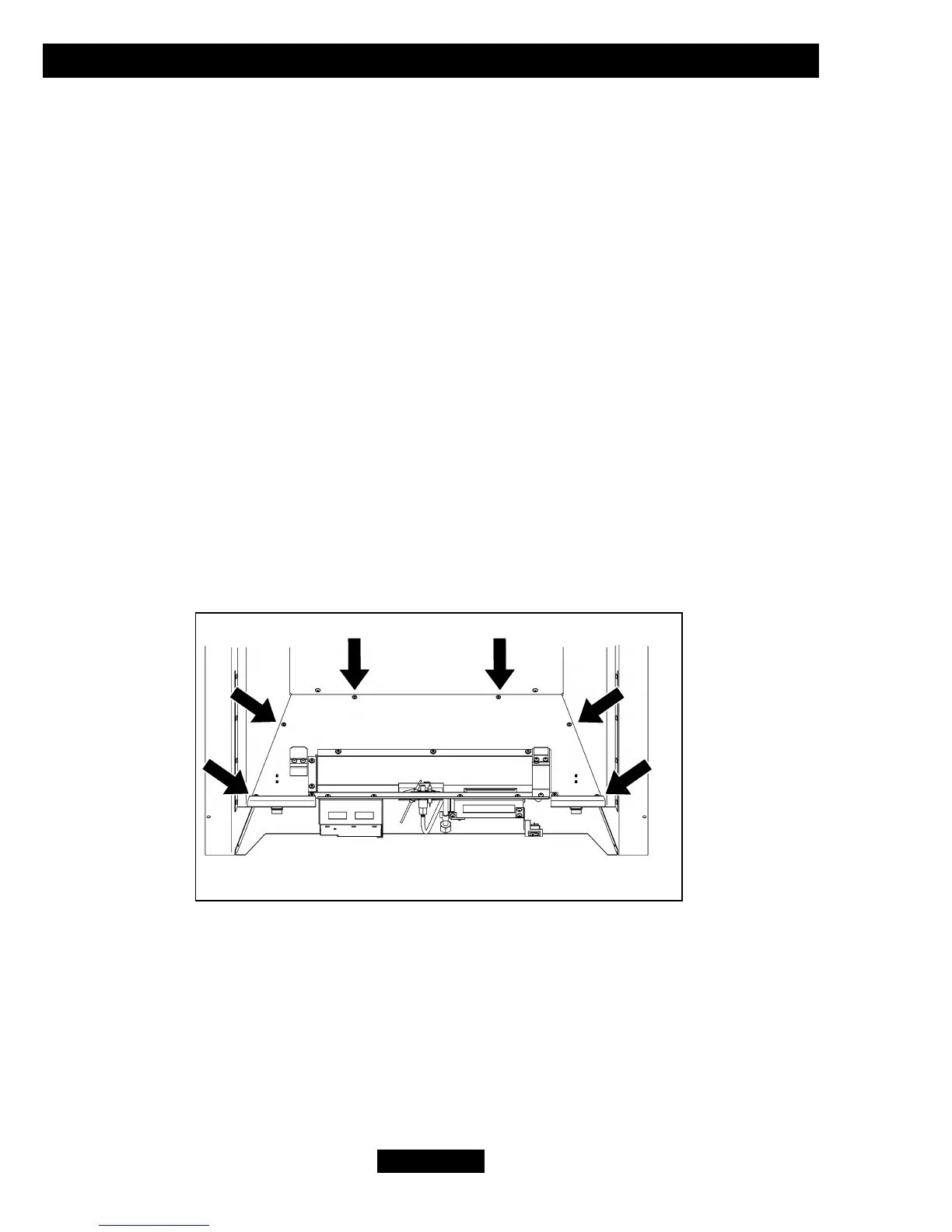

Figure 38. Burner removal
