6. UNPACKING
1. The ceramic fuel effect is packed inside the convector box. The window panel is
secured at the bottom with two clamps. To release the clamps, hold at the rear and
pull down (See figure 6).
2. With both clamps released, gently pull the base of the window panel forward. Hold
the window panel base and lift upward until clear of the two upper window retainers
(See figure 7).
3. Gently remove the ceramic fuel effect pack.
© GDC Group Ltd. 2013
Page 17
INSTALLER GUIDE

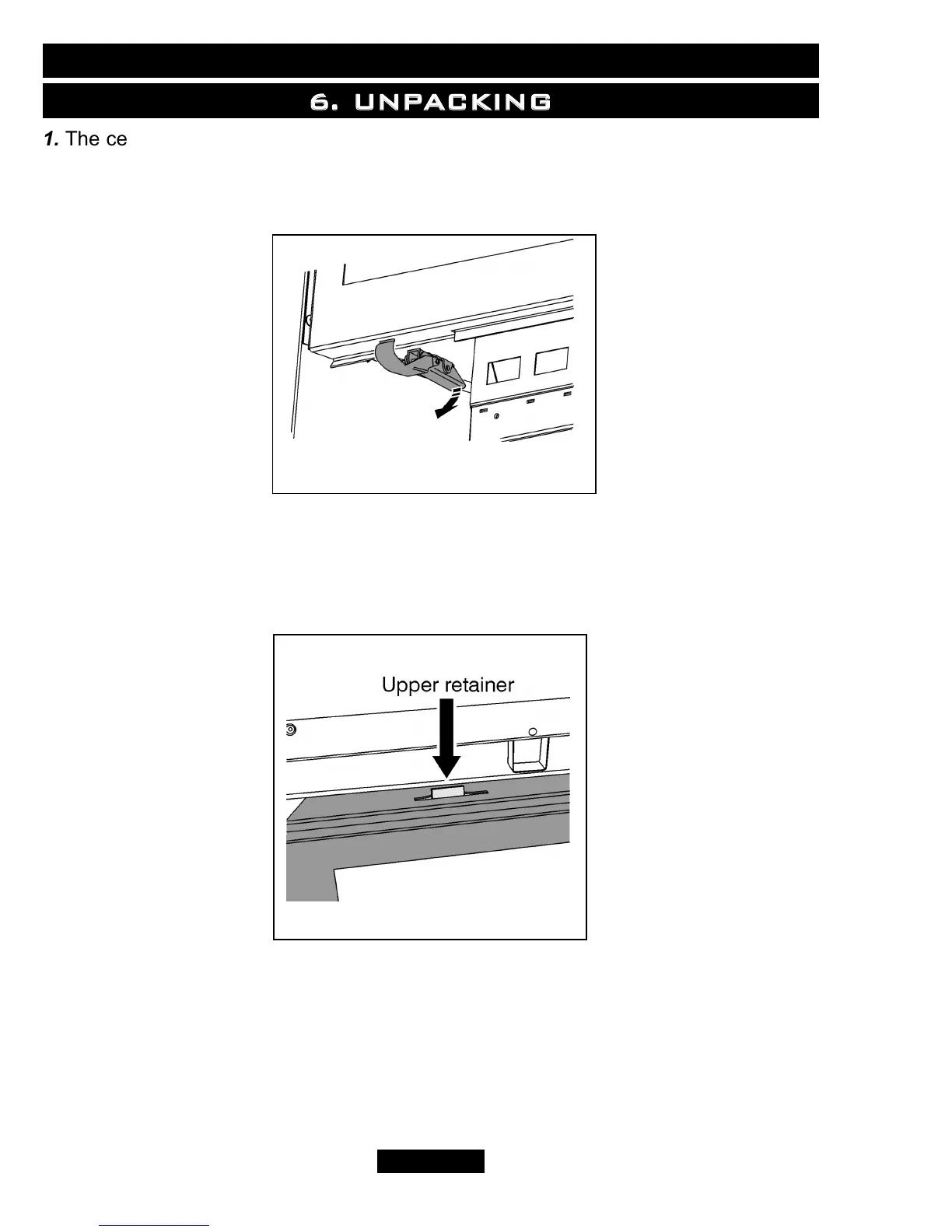

Figure 6. Window panel clamp
Figure 7. Window removal
