6
Cement
board
Drywall opening
31”
(787 mm)
23-3/4”
(603 mm)

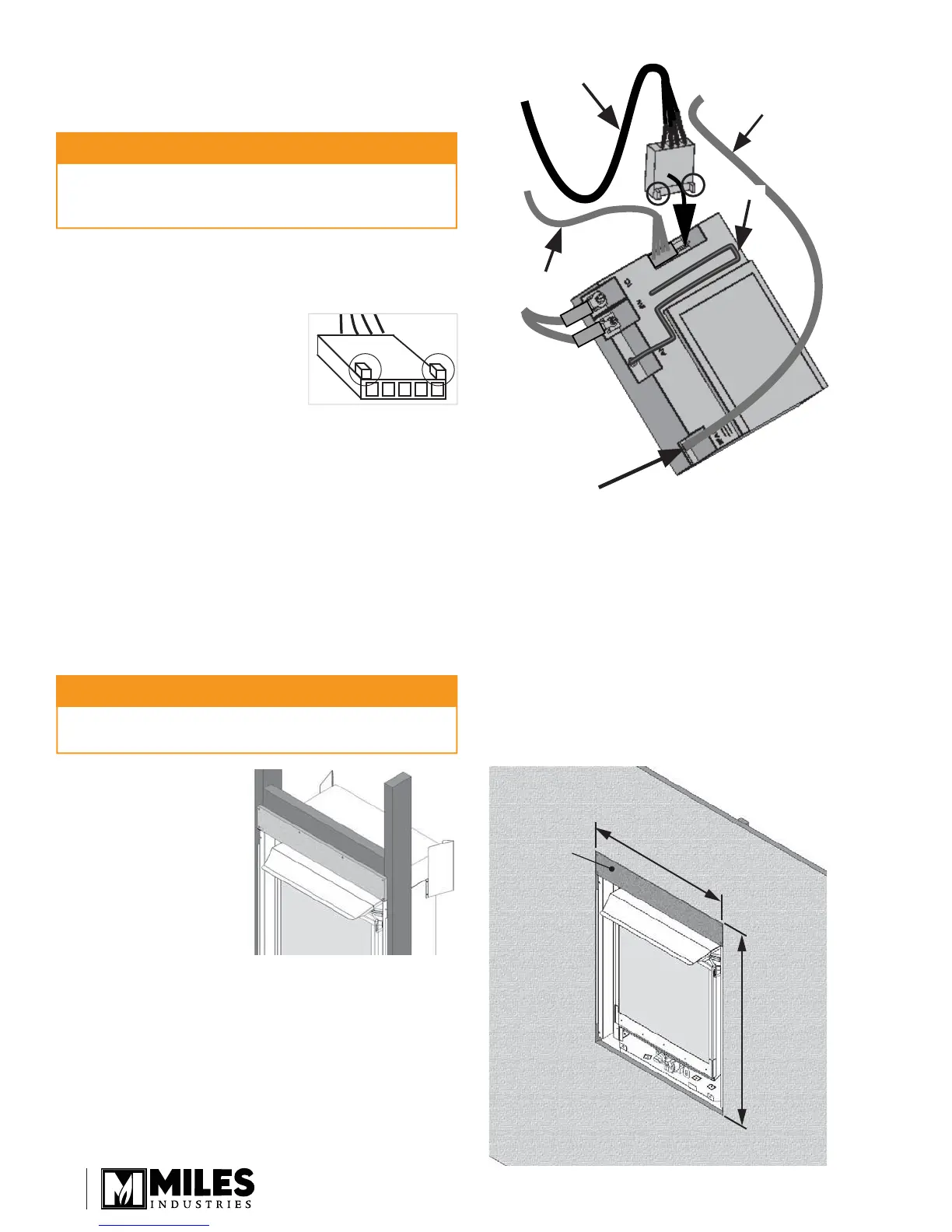

c. Pull out the receiver box. Remove the batteries
from the receiver box if it contains any. You
can remove the ignition wire to improve access
to the receiver.
d. Take the switch wire and plug it into the
receiver’s connection slot as indicated (the other
slot should already be fi tted with the valve’s wire
harness connector). See diagram at right.
IMPORTANT: The
connection can only be
done one way. Do not
force it or damage the
pins!
e. On the outside of the fi replace, run the switch
wire into the outlet box.
f. Plug the wire into the switch plate and to the
outlet box.
g. Reconnect the ignition wire to the receiver if it
was previously removed.
h. Insert 4 AA batteries in the receiver. Replace the
cover.
i. Test the operation of the wall switch.
j. Fix the wall cover plate to the outlet box.
k. Replace the receiver in its position and as well
as the antenna if deployed.
8. Install the cement
board on top of the
appliance. The board
sits on the horizontal
tabs at the top of the
stud brackets.
9. Install the drywall at this point. Although it can be
installed later, the mounting frame for the front will
overlap it.
Wall opening: 23-3/4” (w) x 31” (h)
Note: If tiling, etc. is used overtop of drywall,
complete steps 10, 11, and 12 fi rst as the frame,
once installed, will defi ne where to tile up to.
CAUTION
DO NOT USE a screwdriver or other metallic object to
remove the batteries from the receiver or the handset!
This could cause a short circuit to the receiver.
CAUTION
To avoid short-circuit to the receiver, position the antenna
so that it DOES NOT TOUCH the ignition wire.
Ignition Wire
Connection
(spade type
connector)
Be careful when
removing and
reinstalling: not to
bend or break the
spade connector
Ignition Wire
Antenna
Valve Wire
Harness
Wall Switch
Harness
To Next Page
