7

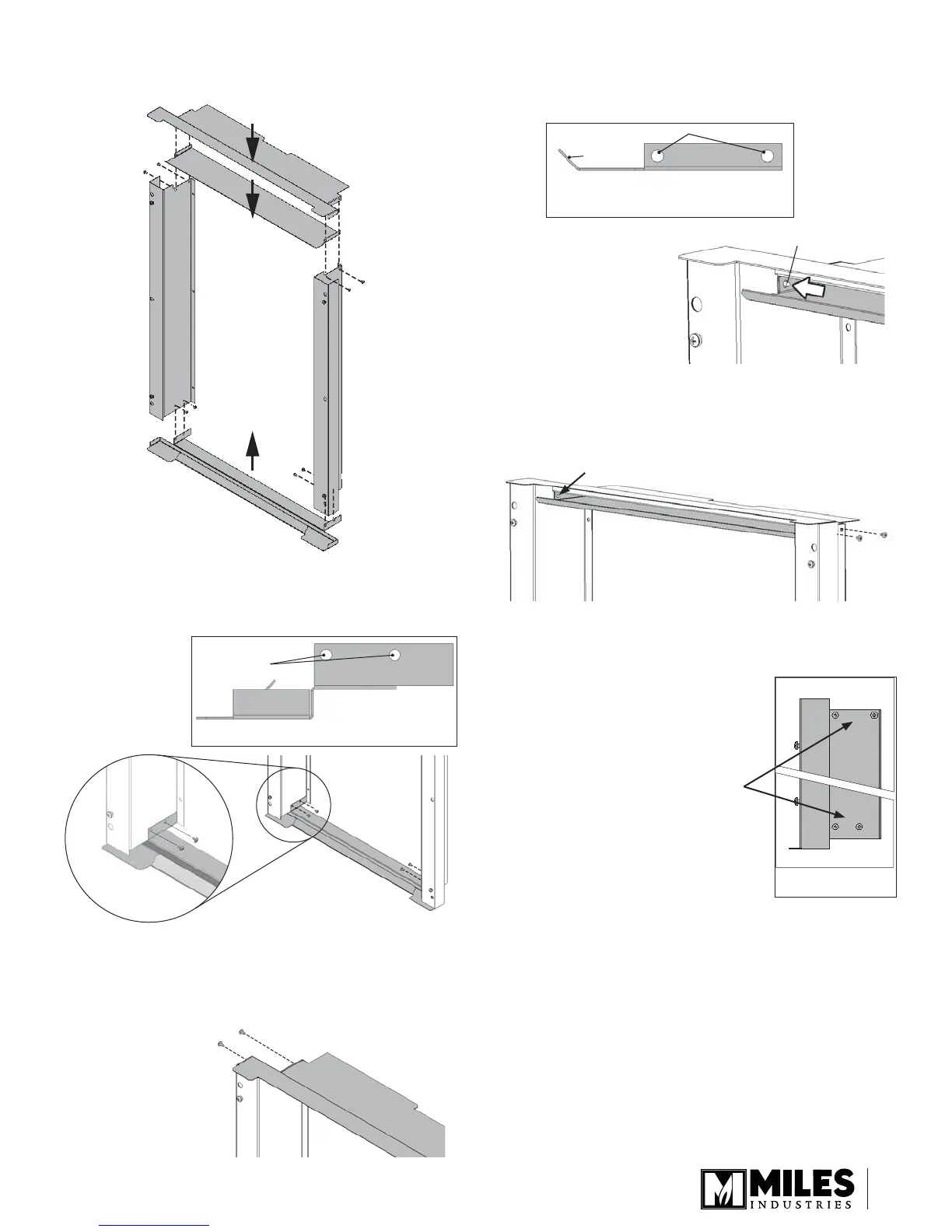

10. Assemble the mounting frame following the steps
indicated below.
a. Fix the bottom piece to the two side pieces as
indicated below (2 screws/side).
b. From outside of the frame, fi x the top piece to
the left side piece with the tabs inboard of the
side piece (2 screws).
c. Slide the internal baffl e over the screw tips on
the frame’s left piece, under the top piece. Hold
the baffl e in place with one hand.
d. With the other hand, align the right holes of
the baffl e to the holes in the top piece and the
frame’s right piece. Fix the three pieces together
from the outside with all tabs inboard (2 screws).
NOTE: All the side tabs of the bottom, top,
and internal baffl e pieces should be inboard
of the frame.
Bottom piece orientation—right side view
Front
Fixing points
Fixing points
Internal baffl e orientation—
right side view
Front
Screw tip
Screw tip
Frame top
Frame bottom
Frame—right
side view
up
No tabs showing
on outside surface
To Next Page
