Horizontal Assemblies
The horizontal approved adhesive kit is the same as the vertical kit.
Caution: Fill borehole 100% full so it is even with the vertical concrete surface
per manufacturer’s instructions.
1) Follow the instructions supplied with your approved adhesive kit
Apply approved adhesive to each anchor per instructions.
2) Add the Washers and Nuts
Put washer and nut on stud so the nut is flush with end of stud.
3) Insert each Stud with Washer and Nut into Borehole
Push stud through part to be anchored and into borehole. Twist the stud in the approved
adhesive to wet the threads.

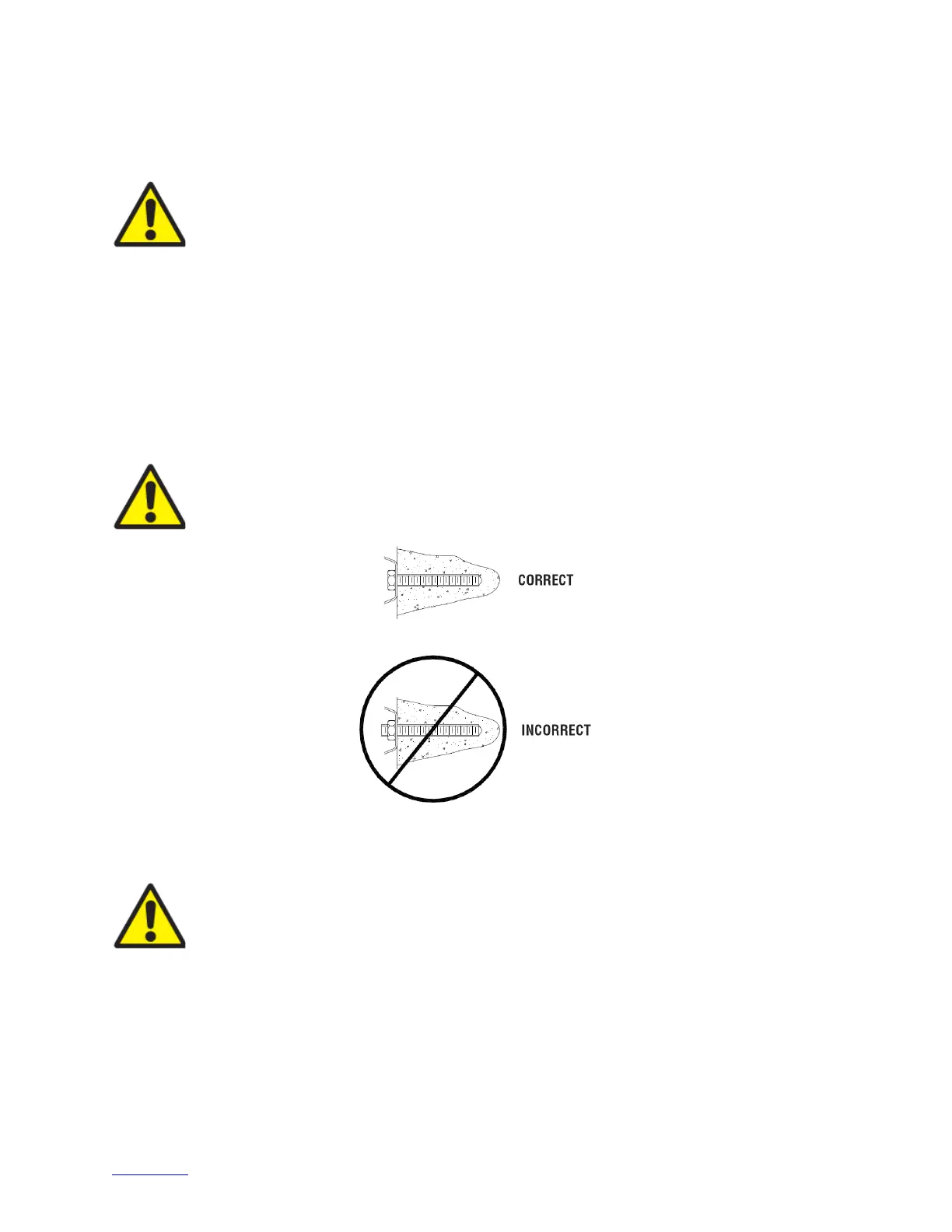

Important: The stud should be flush with the top of the nut in both vertical and
horizontal applications prior to tightening (Figure 2).
Caution: Do not disturb or load the stud until the approved adhesive material has
hardened (reference approved adhesive kit instructions for hardening times).
4) Torque the nuts
Once the adhesive has fully cured, torque nut(s) to the approved adhesive manufacturing
specification.
