Narrow Transitions
Note: The proper Transition Panel or Side Panel must be used for impact performance of the
system. The correct Panel(s) to use will depend on the direction of traffic and what type of barrier
or roadside obstacle the QuadGuard
®
is shielding. Contact the Customer Service Department
prior to deployment if you have any questions (p. 3).

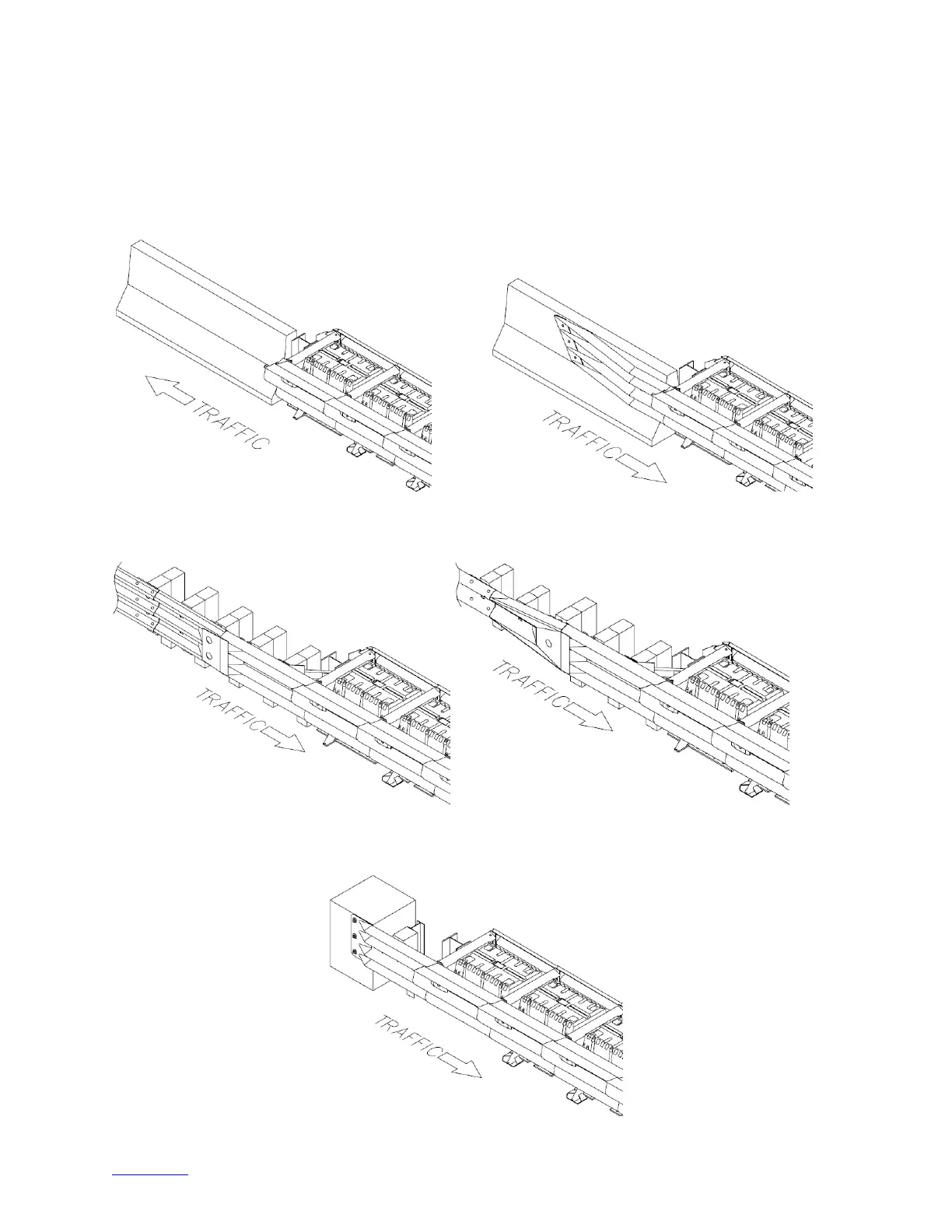

Figure 14
Quad-Beam
™
End Shoe
Figure 11
Quad-Beam
™
to Safety Shape Barrier
Figure 10
No Transition
Figure 13
Quad-Beam
™
to W-Beam
Figure 12
Quad-Beam
™
to Thrie-Beam
