Inspect Shipping
Check all received parts against the shipping list supplied before QuadGuard
®
deployment. Make
sure all parts have been received.
Important: The Manufacturer’s Drawing Package supplied with the QuadGuard
®
must be used with these instructions for proper assembly and should take
precedence over these general instructions.
Determine Backup and Transition Type
The QuadGuard
®
is available with a Tension Strut Backup or a Concrete Backup. See Figure(s)
8 and 9, along with the Backup Assembly drawing, to determine which type of Backup is being
deployed.
A Transition Panel or Side Panel must be used on each side of the Backup. A Side Panel is not
needed when a Transition Panel is used. Several types of Transitions are available for use with
the QuadGuard
®
. See Figures 10 - 14 and the Drawing Package to determine which type of
Panels to attach.

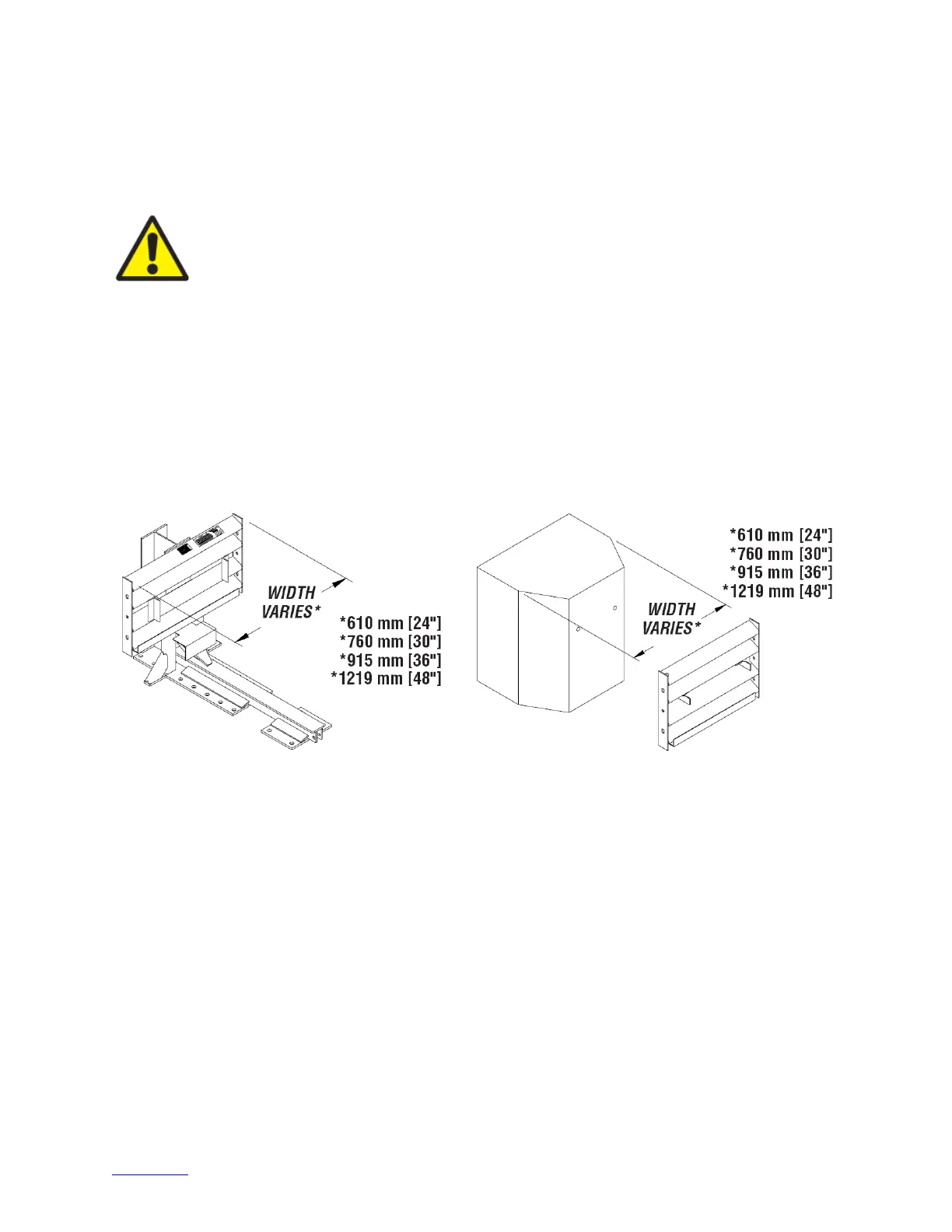

Figure 8
Tension Strut Backup
