VALTIR QuadGuard - Monorail Alignment

Valtir.com 23 Revision D November 2022
Warning: Improper alignment at the Monorail Sections will prevent proper
system collapse during impact.
Monorail Alignment
It is important to align each segment of Monorail from the back to the front of the system
(±1/4” [6 mm]). Anchor each Monorail section using the provided Valtir approved adhesive
kit. See Figures 18 - 21 and the approved adhesive instructions included with the adhesive
kit (p. 12).
Drill 0.78” [20 mm] diameter by 5 3/4” [145 mm] boreholes using the Monorail as a template.
Do not drill through foundation.

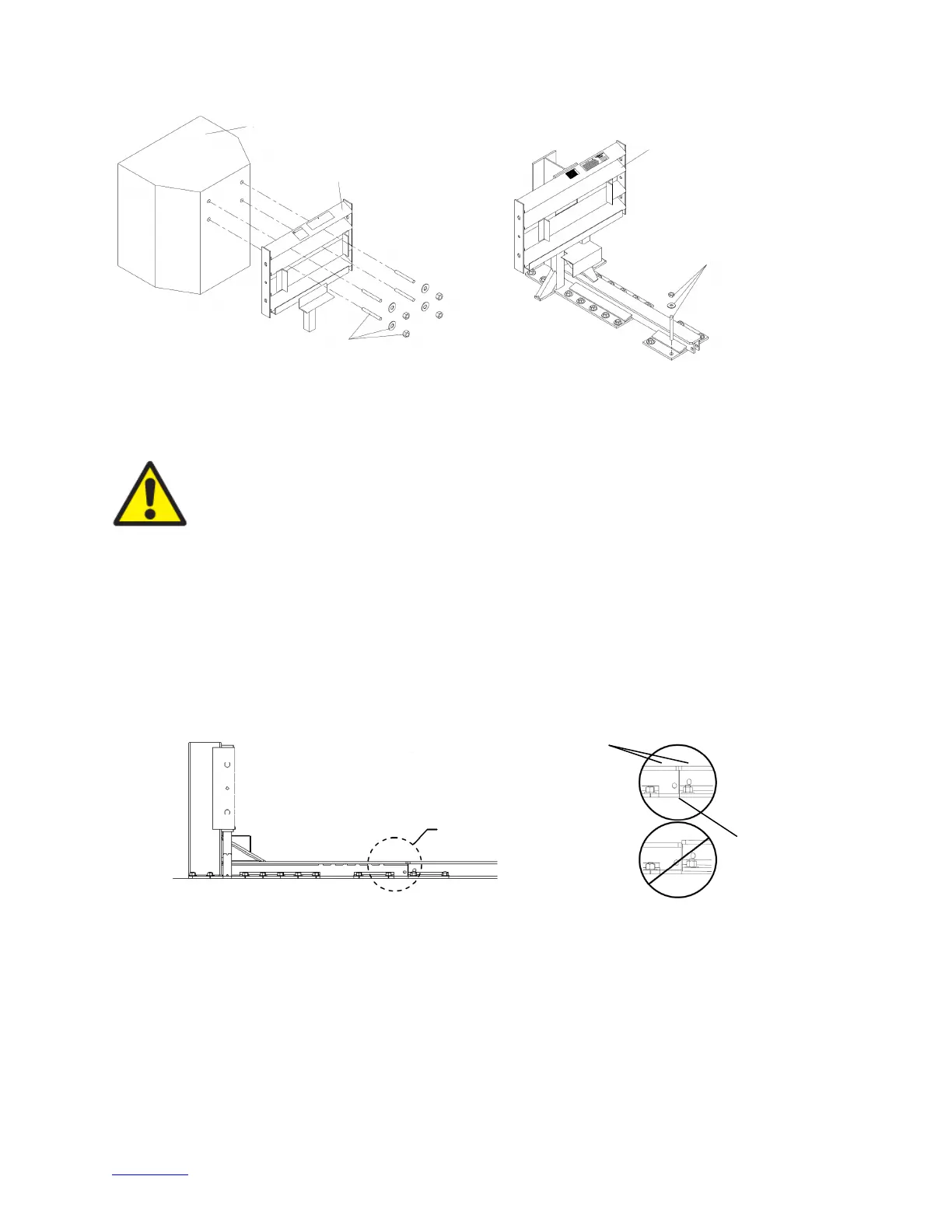

Figure 16
Anchoring Backup Face Plate to
Concrete Backup
Figure 17
Anchoring Tension Strut Backup
to Foundation
Top surfaces
must be flush
Tongues must be
Fully Inserted
and Flush
Detail A
Figure 18
Rail Height and Alignment
Detail A
FULLY CURED
CONCRETE BACKUP
TENSION STRUT
BACKUP
APPROVED ADHESIVE
KIT WITH 3/4” X 7” STUD
BACKUP FACE PLATE
APPROVED ADHESIVE KIT
WITH 3/4” X 6 1/2” STUD
