Attach Nose
11a) Attach Plastic Nose Assembly
Determine which style of Cartridges your system has. If your system has Cartridge style A as
shown in Figure 34, attach Cartridge Support in the upper two slots as shown.
If your system has Cartridge style B as shown in Figure 34, attach Cartridge Support in the lower
two slots as shown.

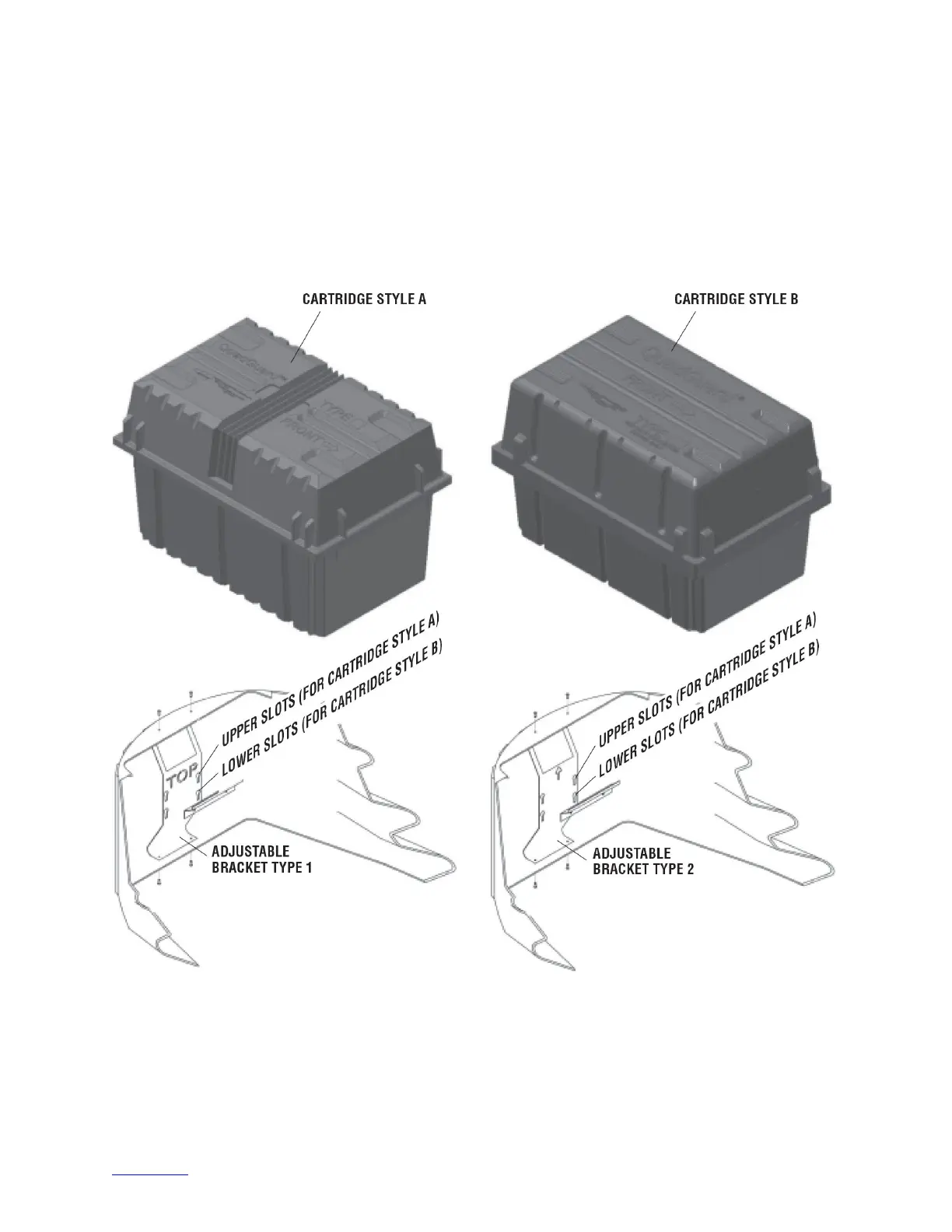

Figure 34
Adjustable Bracket Locations
