Valtir.com 34 Revision D November 2022

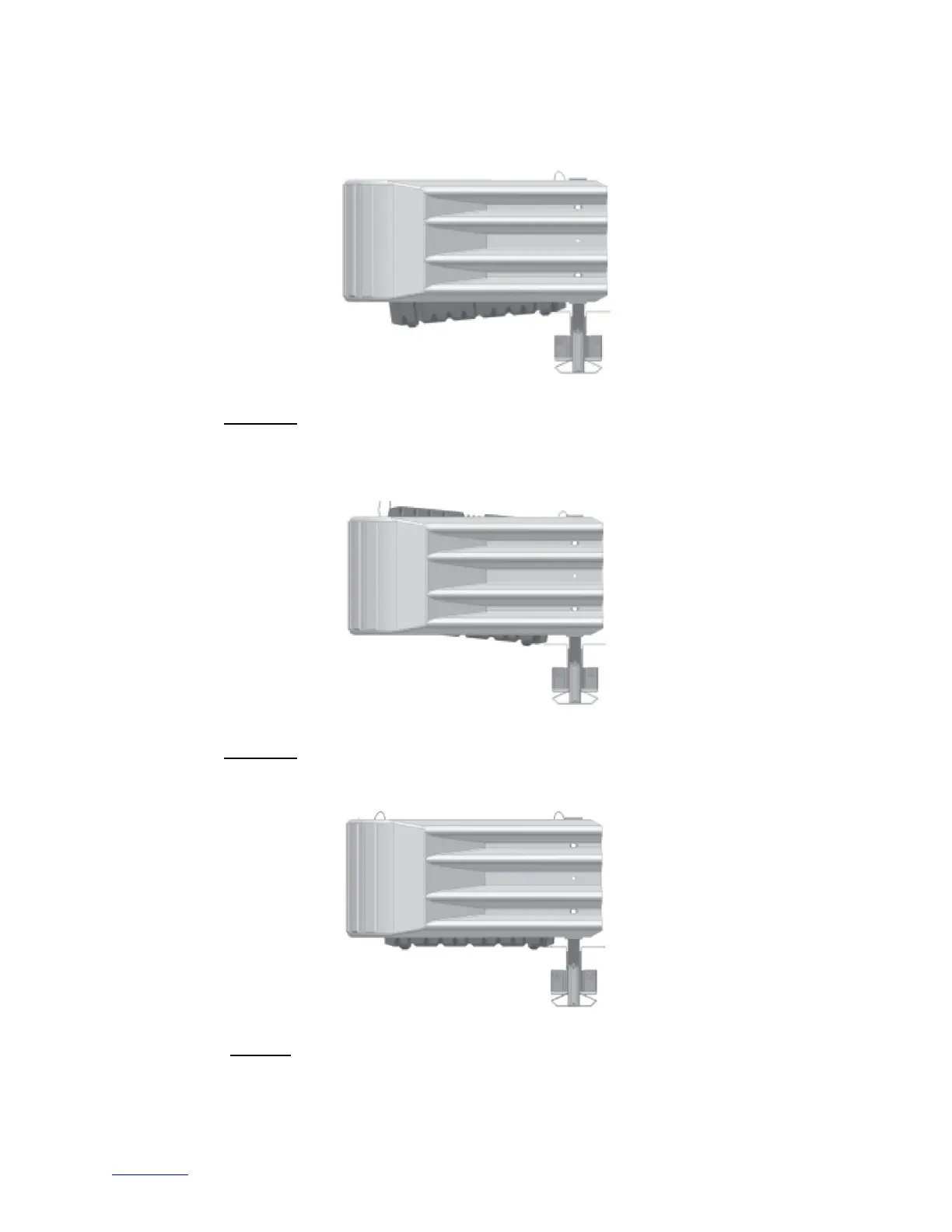

As shown in Detail 34a, Cartridge Style A is attached with the Adjustable Support Bracket
incorrectly in the lower position.
As shown in Detail 34b, Cartridge Style B is attached with the Adjustable Cartridge Support
Bracket incorrectly in the upper position.
Detail 34c shows the Adjustable Cartridge Support Bracket attached correctly.
Detail 34a
Incorrect Attachment of Adjustable Cartridge Support Bracket
Detail 34b
Incorrect Attachment of Adjustable Cartridge Support Bracket
Detail 34c
Correct Attachment of Adjustable Cartridge Support Bracket
