Wide Transitions
Note: The proper Transition Panel or Side Panel must be used for impact performance of the
system. The correct Panel(s) to use will depend on the direction of traffic and what type of barrier
or roadside feature the QuadGuard
®
is shielding. Contact the Customer Service Department prior
to deployment if you have any questions.

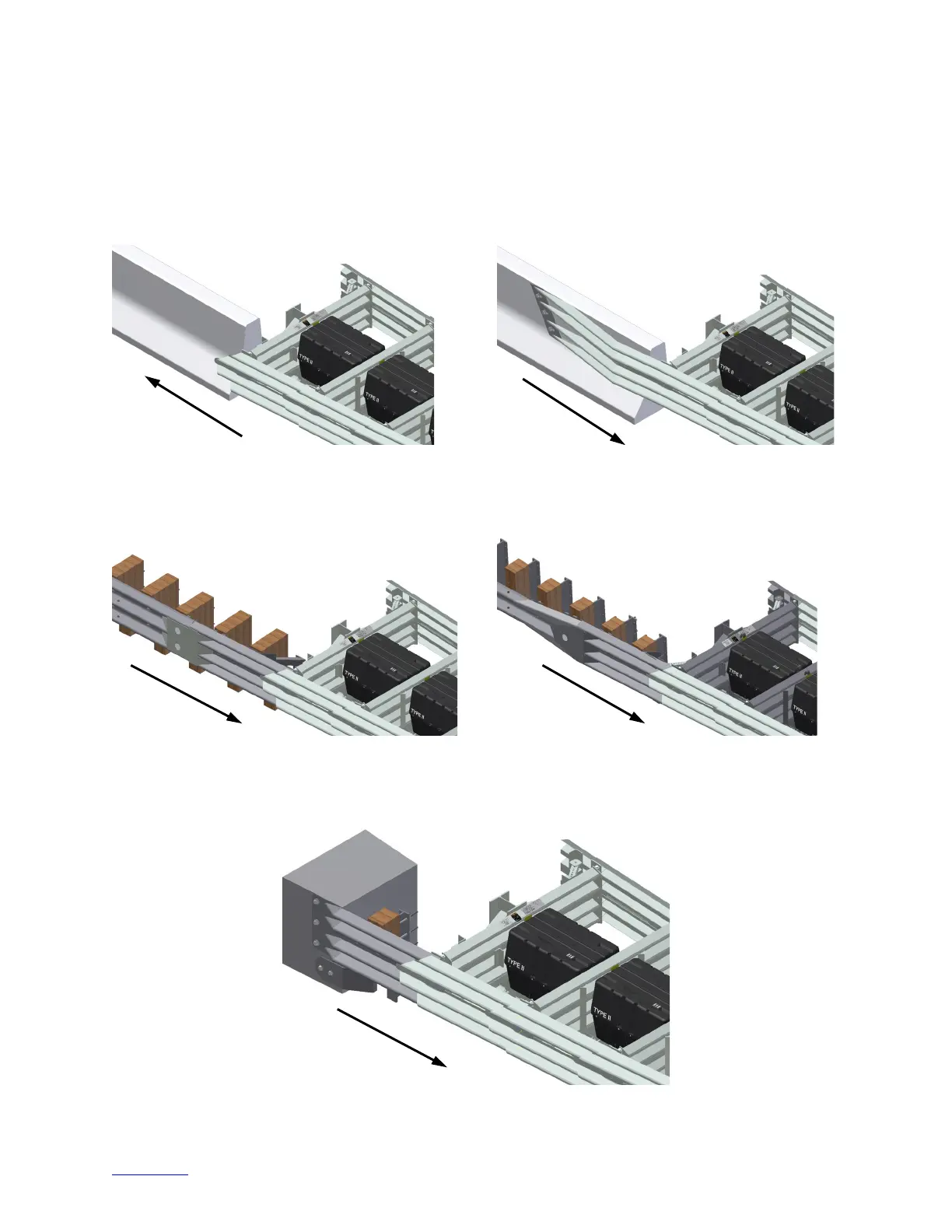

Figure 43
Quad-Beam™ to Safety Shape Barrier
Figure 45
Quad-Beam™ to W-Beam
Figure 44
Quad-Beam™ to Thrie-Beam
Figure 46
Quad-Beam™ End Shoe
Note: Arrows indicate traffic direction.
Note: Arrows indicate traffic direction.
