5) Attach Side Panels and/or Transition Panels to Backup Assembly
Attach Transition Panel or Side Panel to side of Backup using 5/8” rail bolt and 5/8” rail nut
(two places - top and bottom holes only). See Figure 22 and Backup Assembly drawing.
Note: A Side Panel is not needed when a Transition Panel is used.
Assembly tip:
Use drift pin to align the center hole of the Panel with the center hole of the Backup before
inserting the rail bolts.

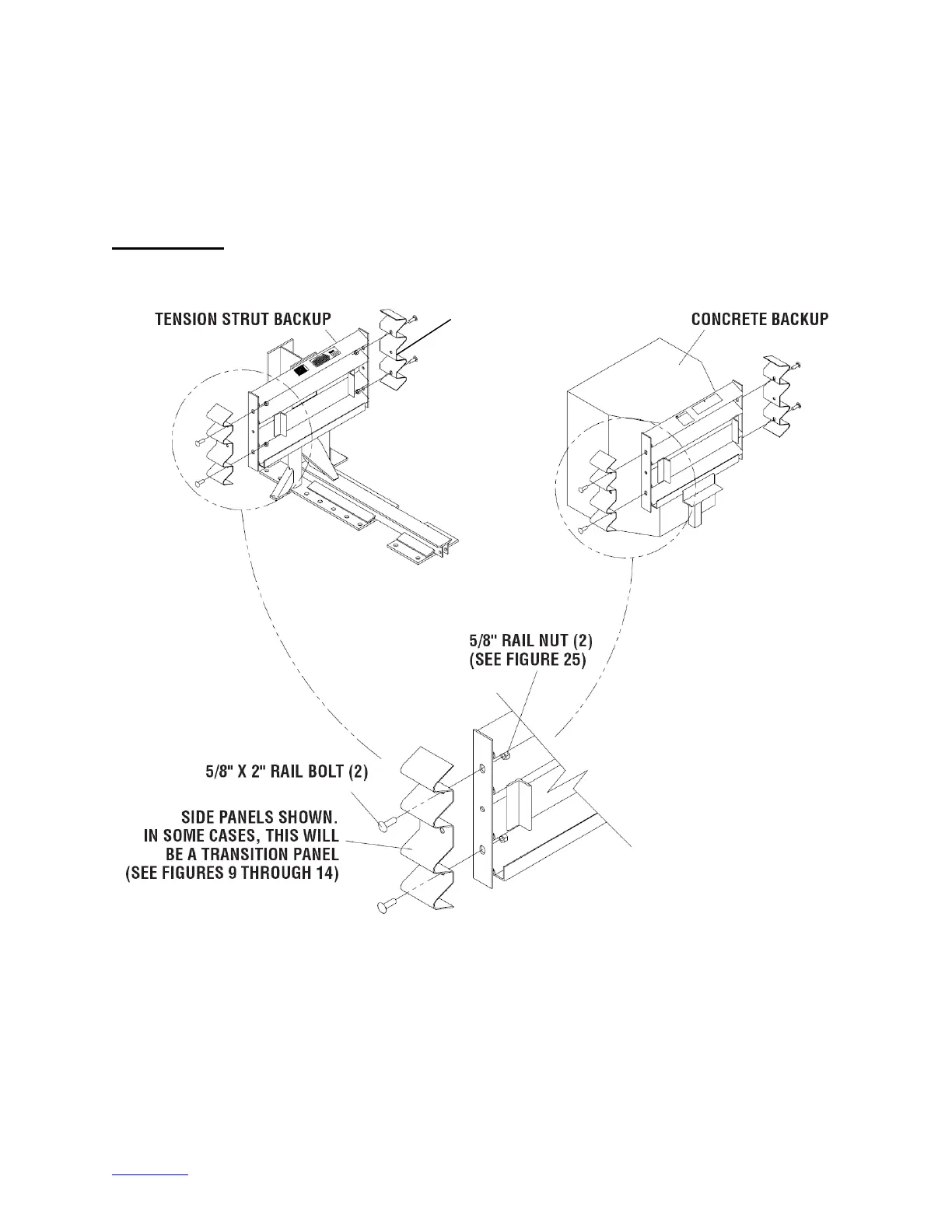

Figure 22
Side Panel/Transition Panel Attachment
