Valtir.com 55 Revision D November 2022
12) Attach Nose Assembly
See pages 34 – 37 for Nose Assembly information.
13) Checking the System Assembly
At this point recheck to ensure all fasteners are properly tightened throughout the system
(anchor bolts, etc.). See warning below. Check all Fender Panels. If they do not fit tightly
against the underlying Fender Panels, system realignment may be necessary (Figure 68).
Anchor Studs – p. 12
May slightly protrude above nuts
Anchor Studs above nuts – Figure 53, p. 46
Fender Panel Gap Wide – 25 mm [1.00”]
Figure 68
Fender Panel Gap for Wide Systems

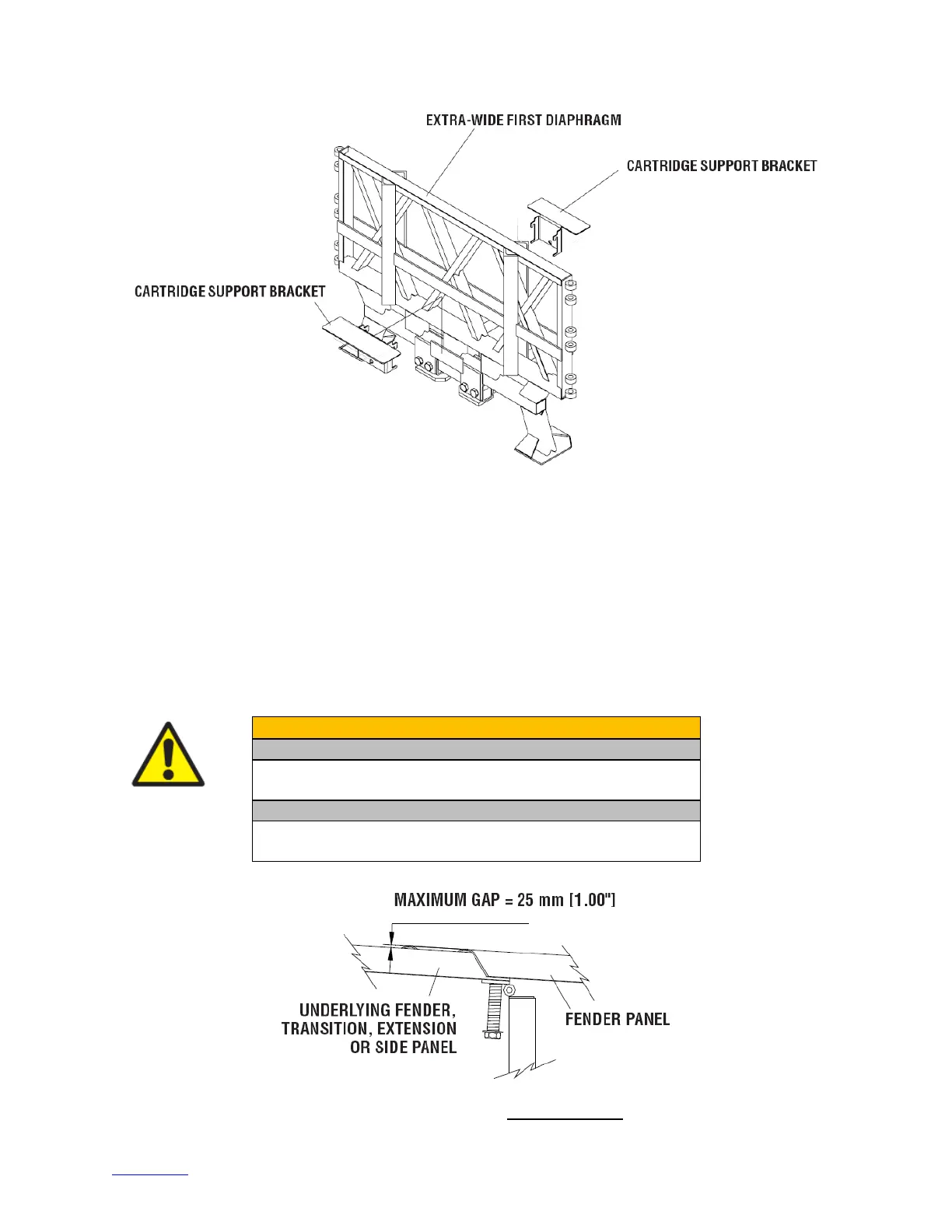

Figure 67
Extra-Wide First Diaphragm
