Valtra T194 User Manual

3.14 Auxiliary hydraulics
2
3
4
1
5
6
7
GUID-B06B6D9A-0B69-4447-87FA-2D26EB578C76

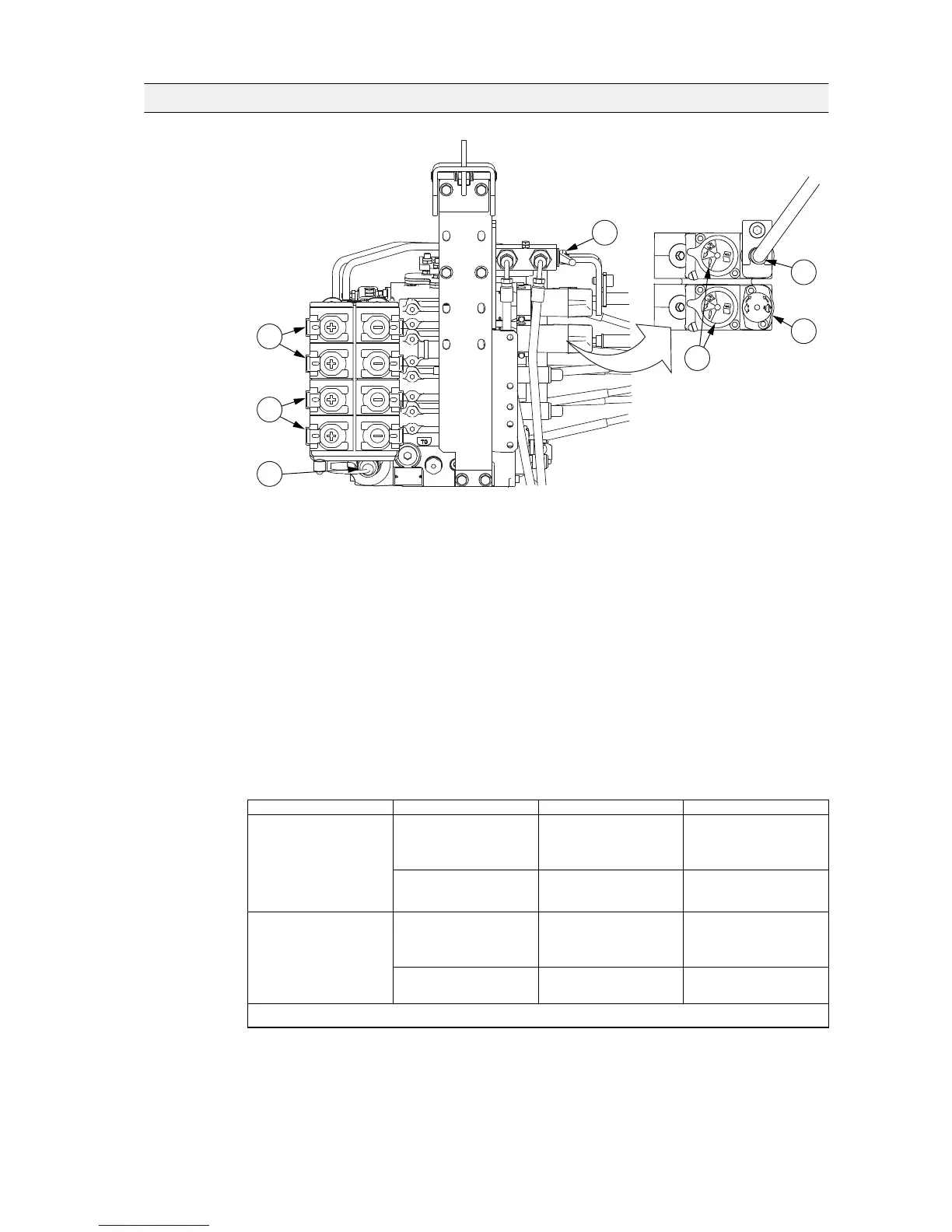

1. Front linkage shut-off valve (optional)
2. Rear valves 3 and 4 (optional)
3. Standard rear valves 1 and 2
4. Return coupling
5. Valve mode selector (optional)
6. Flow control adjustment (optional)
7. Flow control adjustment from cabin (optional)
All the standard and optional auxiliary hydraulics rear valves are mechanically
controlled with control levers.
As a standard, the tractor is equipped with two basic valves on the rear side.
The following valves are available:
Valves
Valve type Valve functions Flow control adjustment
Two valves Valve 1, basic Out - hold - in - floating
Position locks on floating
and (+)-port
N/A
Valve 2, basic Out - hold - in - floating
Position lock on floating
N/A
Two valves Valve 1, basic Out - hold - in - floating
Position locks on floating
and (+)-port
N/A
Valve 2, adjustable Position lock - spring-
return - kick-out
In valve 2
Table continued on next page
3. Operation
- 189 -

Valtra T194 Specifications

General

Max Speed	50 km/h
Wheelbase	2995 mm
Cylinders	4
Engine Type	AGCO Power
Hydraulic System	Load-sensing
