1.5Aisavailabletopowerlocksandreaders.
Thefollowingtableshouldbeusedforcalculatingthepowerbudget.
ACTpro reader (1030/1040/1050/1060) 100mA
ACTPro MIFARE reader (1030/1040/1050) 100mA
Typical Mag Lock (consult your supplier) 800mA
Example:Powerbudgetofatypicalsingledoorreadin/outinstallation.
Total Current Available 2000mA
ACTpro Controller and Battery Recharge 500mA
ACT Reader X 2 200mA
Typical Mag Lock 800mA
Total Consumption 1500mA
Spare Capacity 500mA
Seealso:
l Technical specificationonpage5

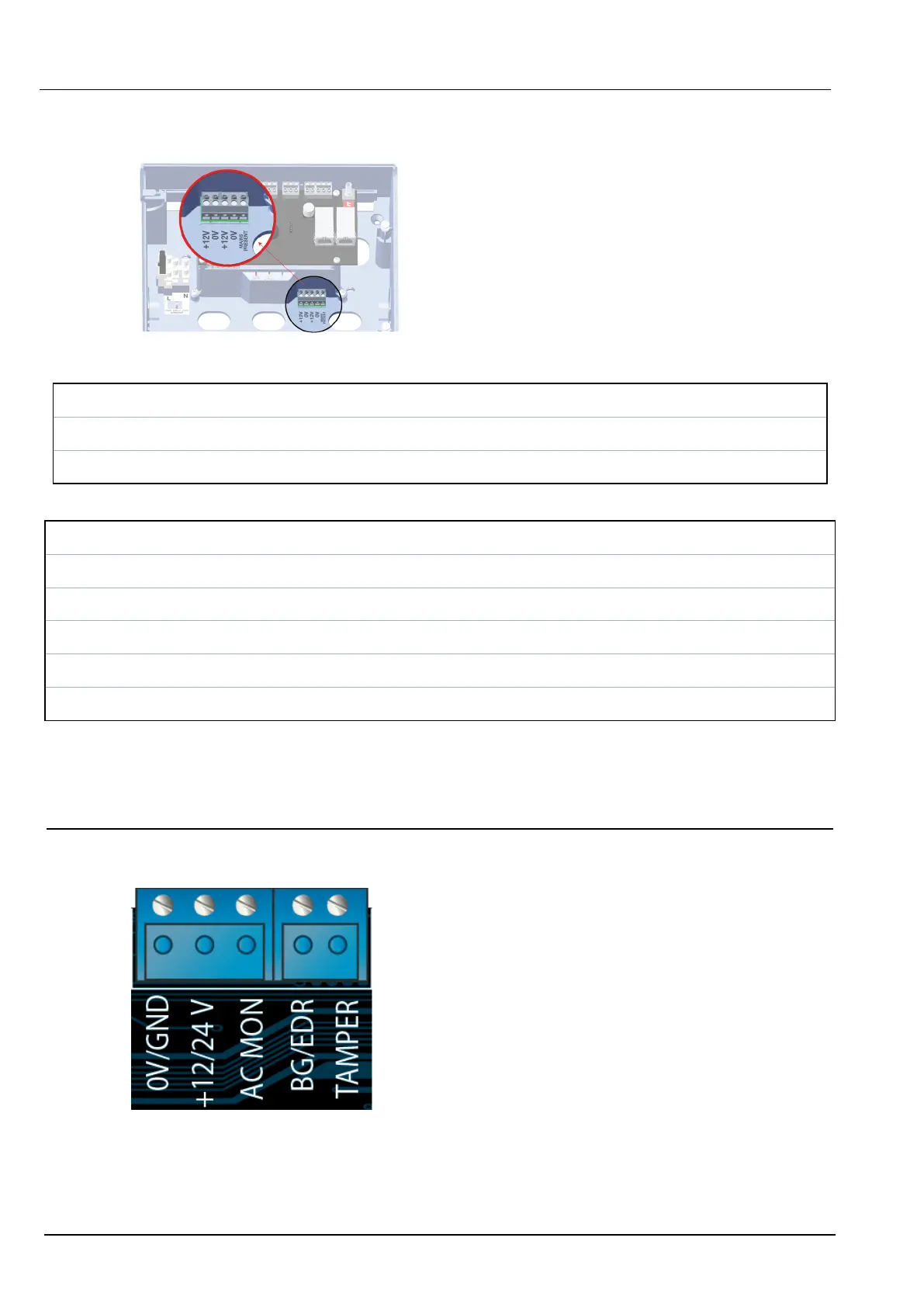

2.3 ACTpro 1500e power supply
TheACTpro1500erequiresanexternal12VDCor24VDCpowersupply.Thesupplyshouldbeconnected
tothe+12/24VDCand0V/GNDconnections.
