Vantage Hearth CC-STAT - System Test Procedures

SECTION TWO - Setup & Testing CC-STAT
©Vantage, 41184 / IS-1308191-A page 16 of 23
System Test Menu
The system test menu is used to test a system after installation. The outputs of the thermostat or
humidistat can be manually activated to test their function. The instructions below show how to
enter the test mode and turn outputs on and off.
HOW TO ENTER THE SYSTEM TEST MENU:
Press [MODE] to set system to off.
Press and hold [FAN] and [MODE] for three
seconds to enter system test mode. Note:
Buttons will not be shown in humidistat
mode. Press in the same area that the button
would be displayed.

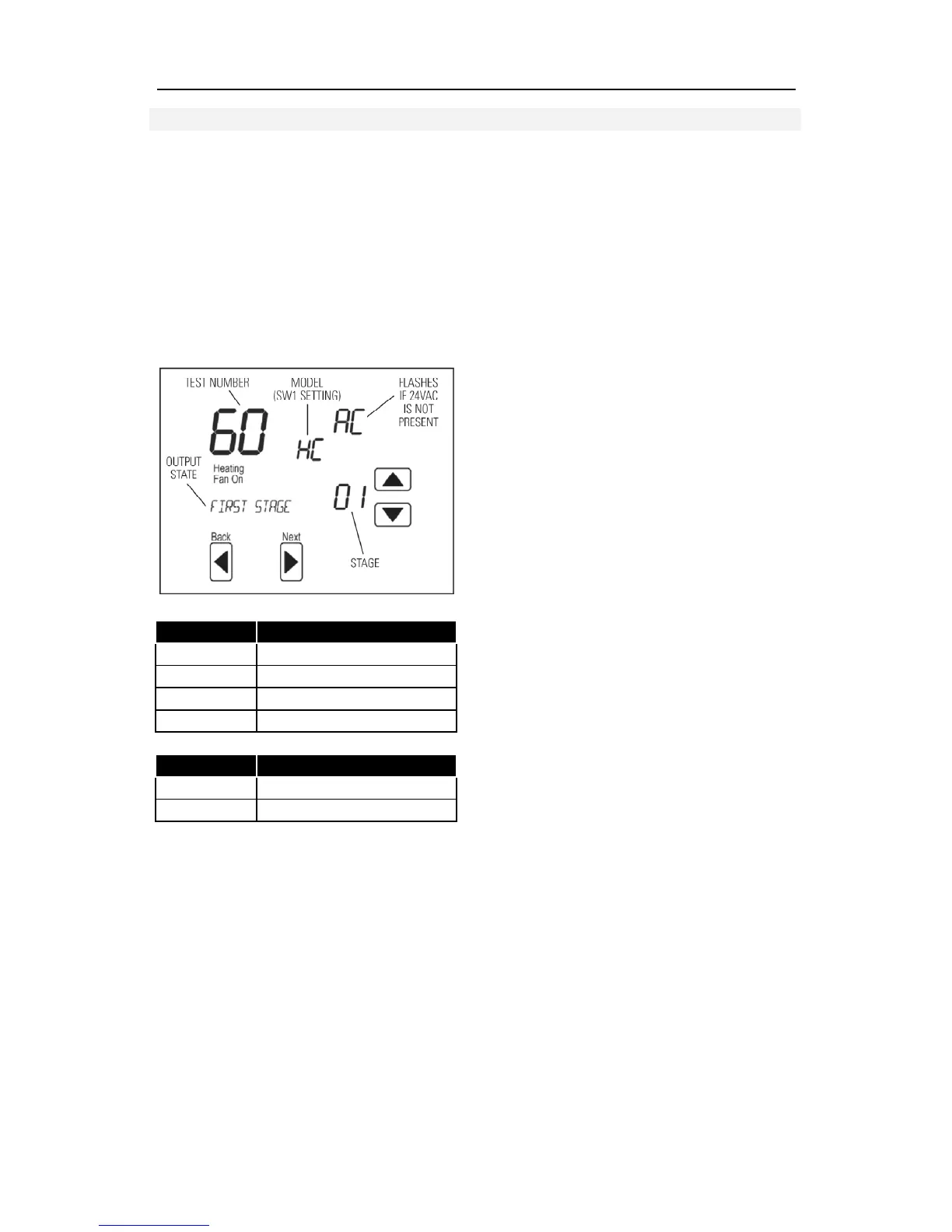

The screen of the first test step is displayed:
Test Numbe
r
Thermostat System Test
60 Heating equipment test
61 Cooling equipment test
62 Auxiliary equipment test (HP
only)
63 Fan equipment test
Test Numbe
r
Humidistat System Test
70 Humidification equipment test
71 Dehumidification equipment test
The test number is displayed on the upper
left, and the output state is displayed in the
message center.
Press
 to turn on the output (01). For multi
stage output, press
again to turn on the
2
nd
stage (02).
Press
 to turn off all the outputs (00).
Press [BACK] or [NEXT] to change to the
next test step.
When the last step is done, press [NEXT].
The message “installer test complete“ will
display.
All minimum on and off timers will be reset
after returning from system test mode.
Note: Second stage will only be displayed
when the thermostat is set to multi-stage
mode.
