Vantage Hearth CC-STAT - Optional Sensors and Modules

SECTION ONE - Installation CC-STAT
©Vantage, 41184 / IS-1308191-A page 2 of 23
Outdoor Sensor,
part #
SENSOR-ODT

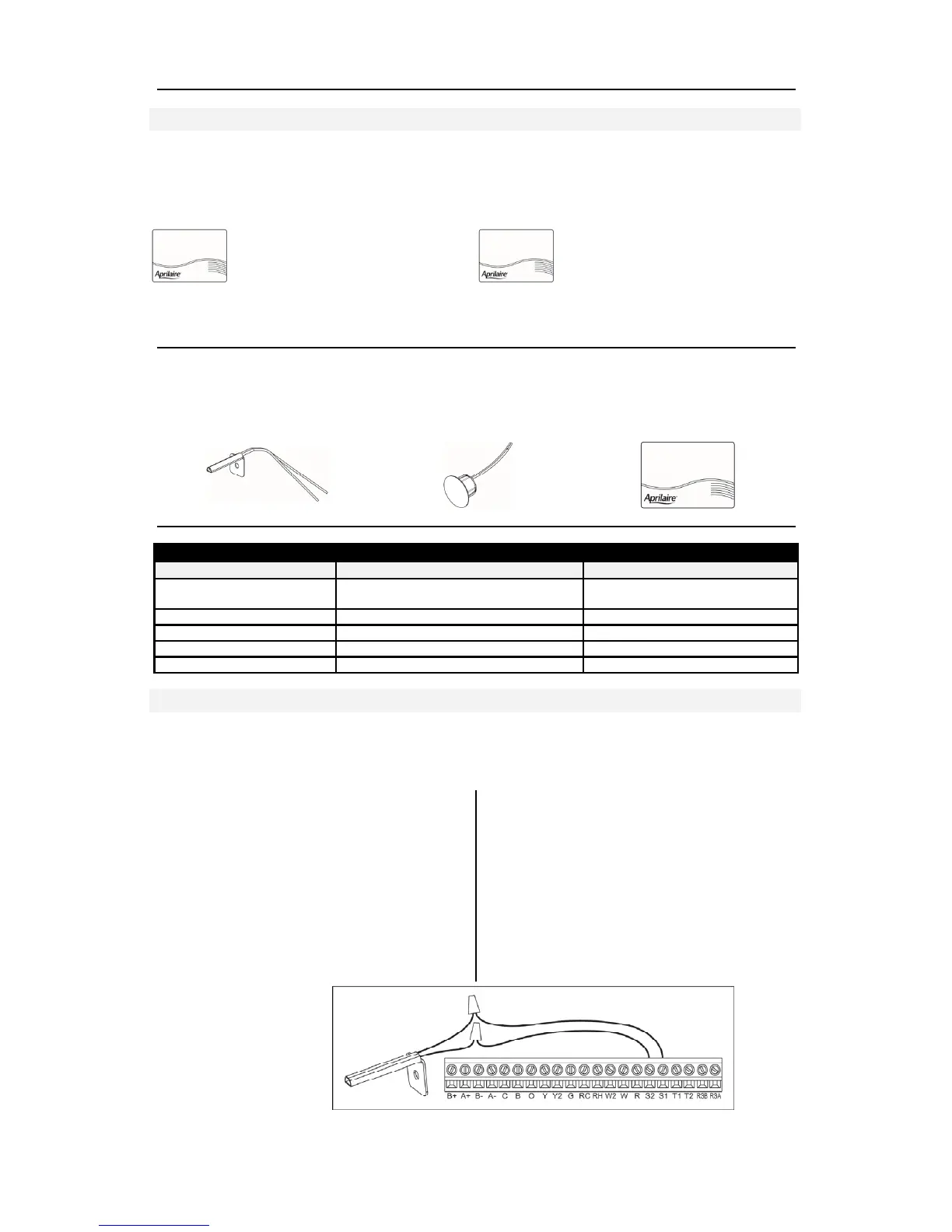

CC-STAT Optional Support Modules & Sensors
These support modules can be added when remote temperature or humidity sensor values are needed.
Support modules can also be used for sensor averaging in large areas (see
Maximum Wiring Distances
below). Support modules must be used in
Control Mode , see instructions shipped with module.
Support Modules:
Model CC-TEMPSUP Support Module
Provides two temperature values.
 1 onboard or remote temperature sensor
 1 remote temperature sensor
See additional instructions packaged with
support module
Model CC-HUMIDSUP
Support Module
Provides one temperature and one humidity
value.
 1 onboard humidity sensor
 1 onboard or remote temperature sensor
See additional instructions packaged with
support module
These sensors can be directly wired to the CC-STAT thermostat, the CC-TEMPSUP, or to the
CC-HUMIDSUP. See additional instructions packaged with each sensor.
Remote Sensors:
Model: SENSOR-ODT MODEL: FLUSHSENSOR MODEL: SENSOR-SMT
Maximum Wiring Distances
From To Maximum Distance
InFusion Controller
CC-WLINT
(Vantage station bus specification)
1000 ft.
CC-WLINT Thermostat
4000 ft. (cumulative)
Thermostat Support Module
1000 ft. (cumulative)
Support Module Temperature Sensor Option
300 ft.
Thermostat Temperature Sensor Option
300 ft.
Outdoor Temperature Sensor (Optional)
Outdoor temperature can be measured by attaching Vantage’s SENSOR-ODT, outdoor sensor to
the S1 and S2 terminals on the thermostat base. The sensor must be enabled in the thermostat’s
installer setup menu. (See Installer Setup Menu in SECTION TWO – SETUP & TESTING.)
In heat pump mode the outdoor
temperature sensor can be used to
efficiently utilize an air source heat pump:
 When the outdoor temperature is less than
the Low Balance Point, the heat pump will
be locked out and only auxiliary heating
will be used.
 When the outdoor temperature is higher
than the High Balance Point, the auxiliary
heating will be locked out and only the
heat pump will be used to provide heating.
Outdoor temperature sensor should be
mounded:
 On side of building out of direct sunlight
(north side recommended).
 Above snow line.
 At least 3’ away from exhaust vents and
condensing lines.
 Using no more than 300’ of wire. (For
longer runs, use the CC-TEMPSUP as a
bridge).
 Do not route wires along 120 VAC lines.
