SECTION ONE - Installation CC-STAT
Ā©Vantage, 41184 / IS-1308191-A page 5 of 23

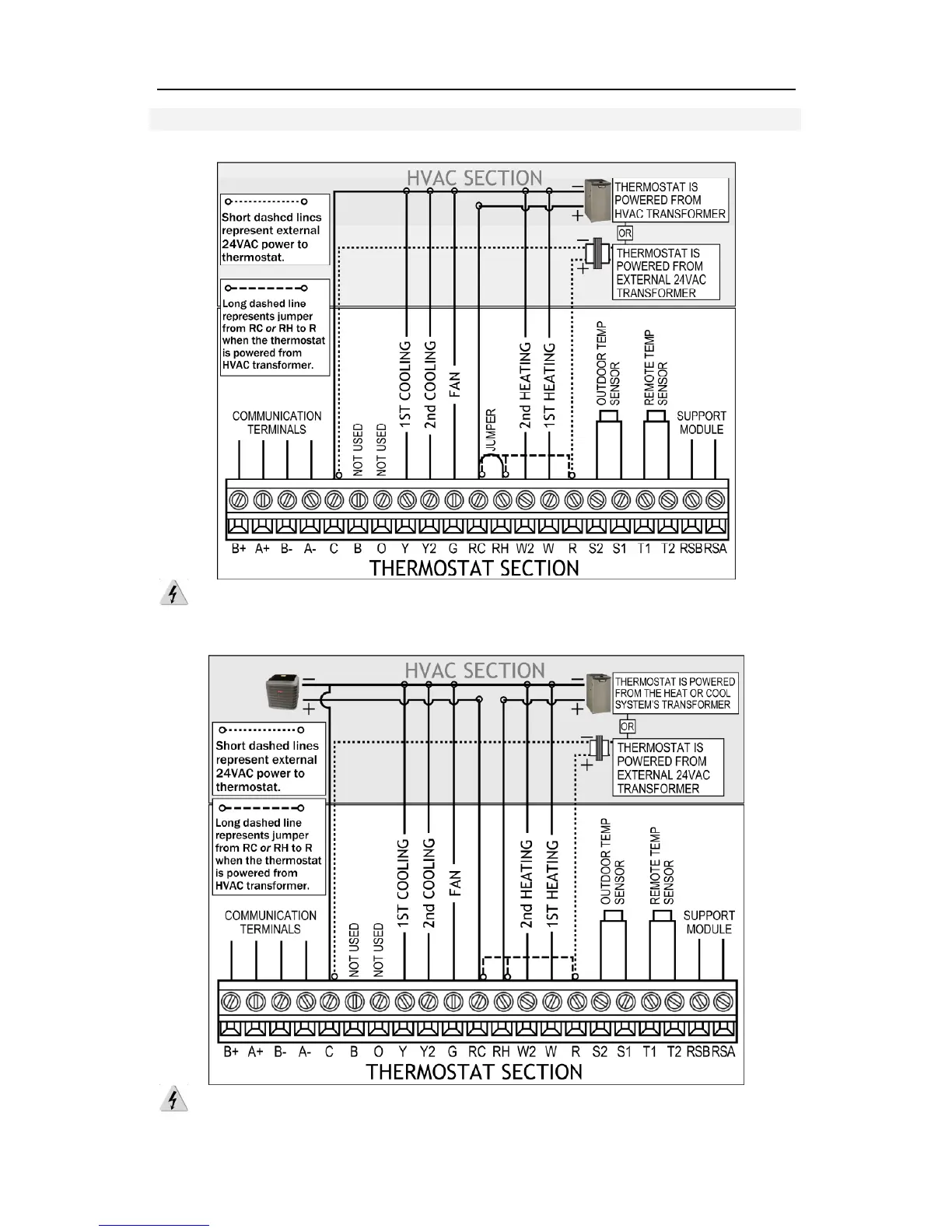

Conventional Heat/Cool Wiring
Single Transformer (Use Jumper Wire From RC to RH)
Never place jumper wire from RC or RH to R when R is powered from external source.
Two Transformers (Remove Jumper Wire From RC to RH)
Never place jumper wire from RC or RH to R when R is powered from external source.
