SECTION ONE - Installation CC-STAT
©Vantage, 41184 / IS-1308191-A page 6 of 23

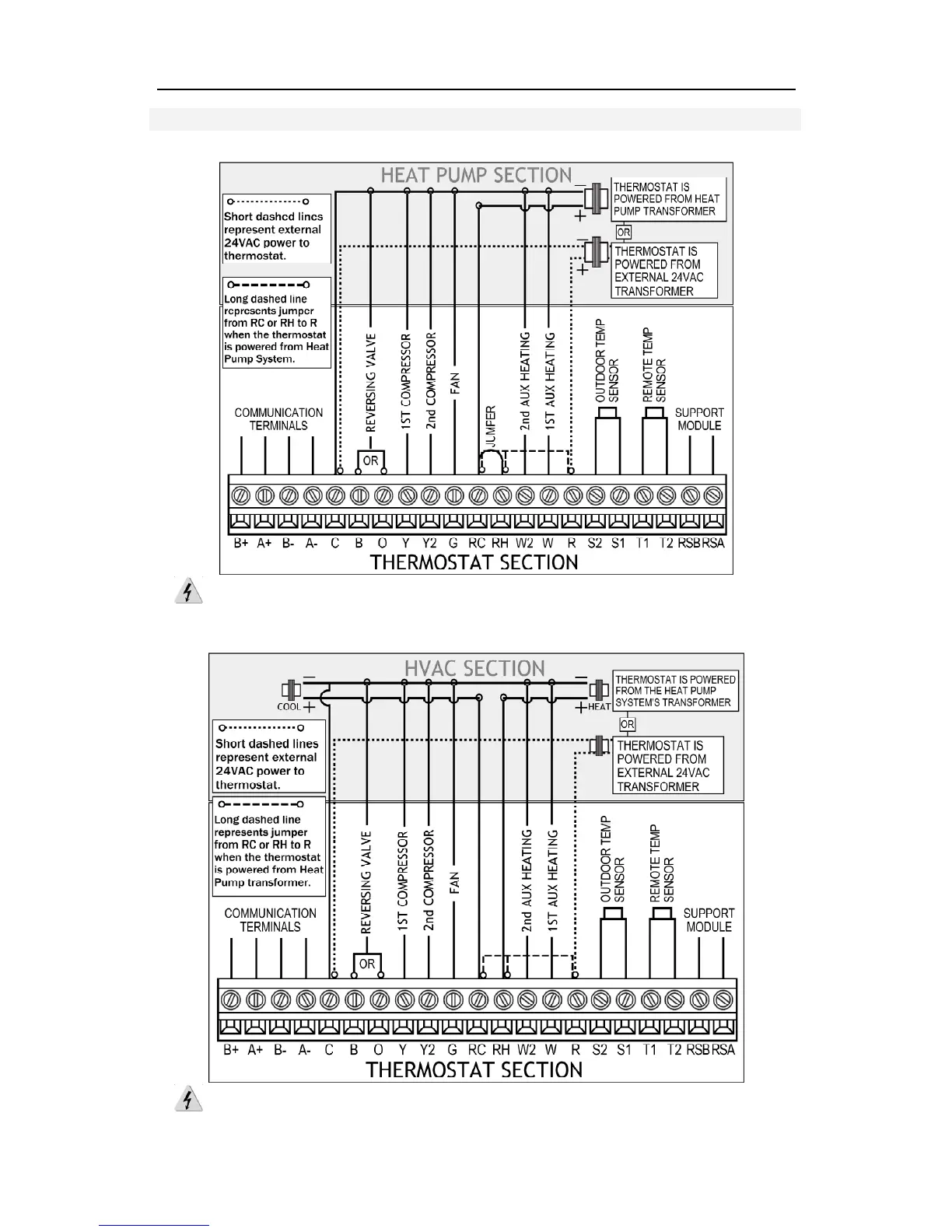

Heat Pump Wiring
(See Section Two for changing thermostat to Heat Pump mode.)
Single Transformer (Use Jumper Wire)
NOTE: “O” is active in cooling and “B” is active in heating.
Never place jumper wire from RC or RH to R when R is powered from external source.
Two Transformers (Remove Jumper Wire)
NOTE: “O” is active in cooling and “B” is active in heating.
Never place jumper wire from RC or RH to R when R is powered from external source.
