SECTION THREE - Quick Reference To Controls & Display CC-STAT
©Vantage, 41184 / IS-1308191-A page 19 of 23

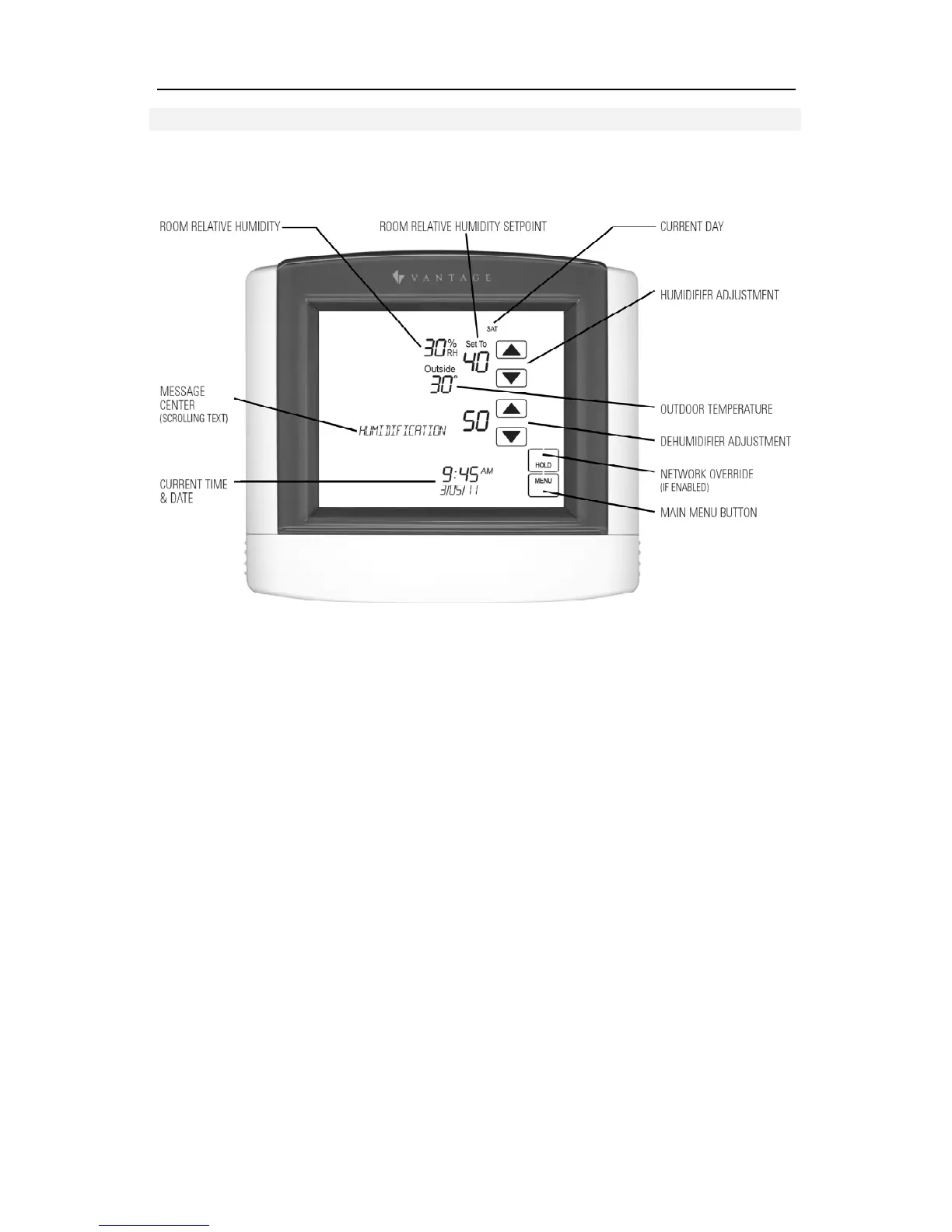

Humidistat
The Model CC-STAT has the option of being configured as a humidistat* that can control a
humidifier and dehumidifier.
Note: The CC-STAT is set to operate as a humidistat through the installer setup menu.
*NOTE: This thermostat will not operate as a thermostat and a humidistat at the same time. It
must be dedicated to one or the other when installing.
Humidistat Setup with InFusion
In Area View select the floor and room for the humidistat. Click on Vantage Objects in the Object
Explorer and expand Stations, WireLink or Stations, RadioLink and double click on the humidistat
station. Please follow the Vantage Integration on pages 7 – 9 for CC-WLINT or CC-RLINT setup,
wiring, and etc.
