Vantage Hearth CC-STAT - Humidistat Integration

26 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

SECTION ONE - Installation CC-STAT

©Vantage, 41184 / IS-1308191-A page 7 of 23

THERMOSTAT IS

POWERED FROM

EQUIPMENT OR

24VAC TRANS.

THERMOSTAT IS

POWERED FROM

EQUIPMENT OR

24VAC TRANS.

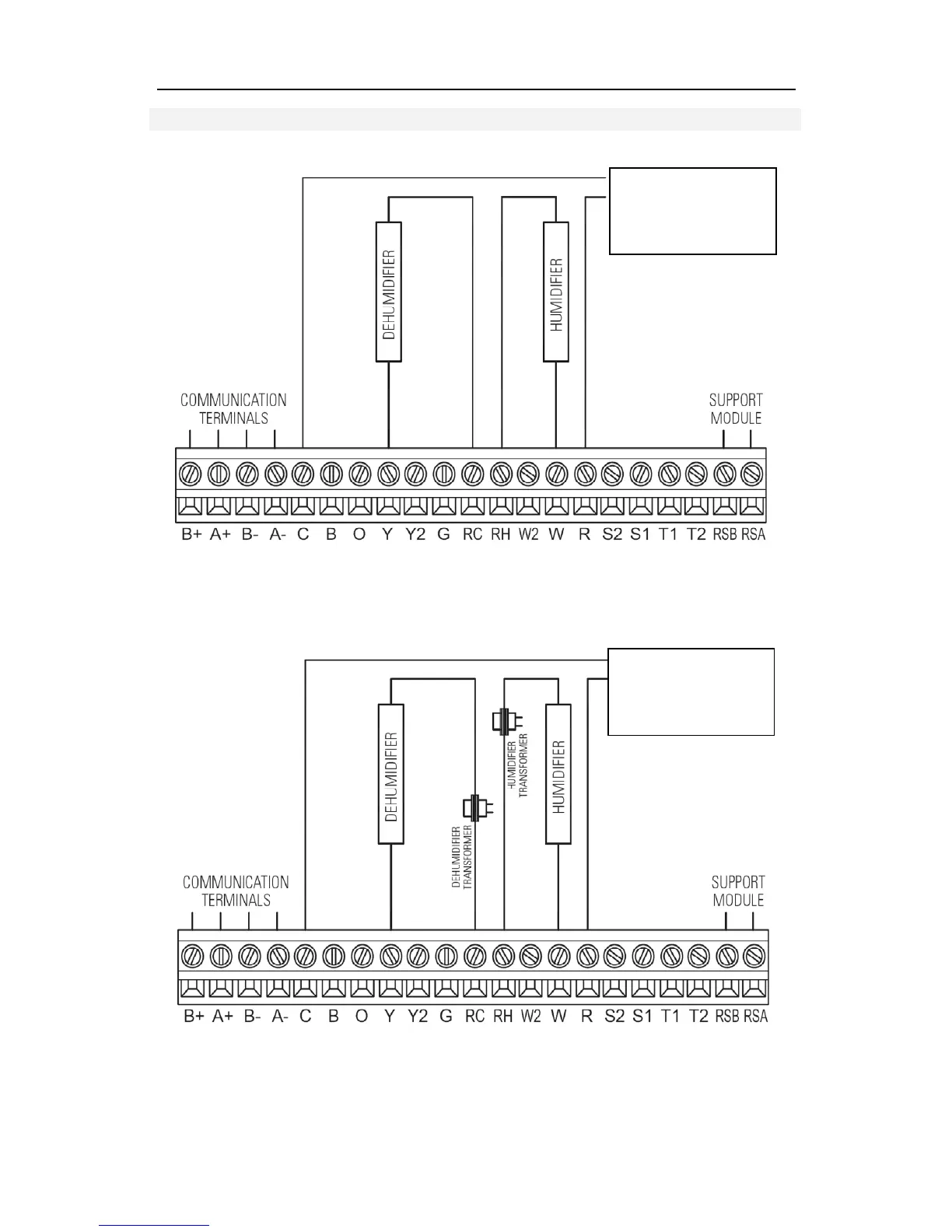

Humidistat

Dry Contact

Powered Contact
