Vasco DX4 - Parts List

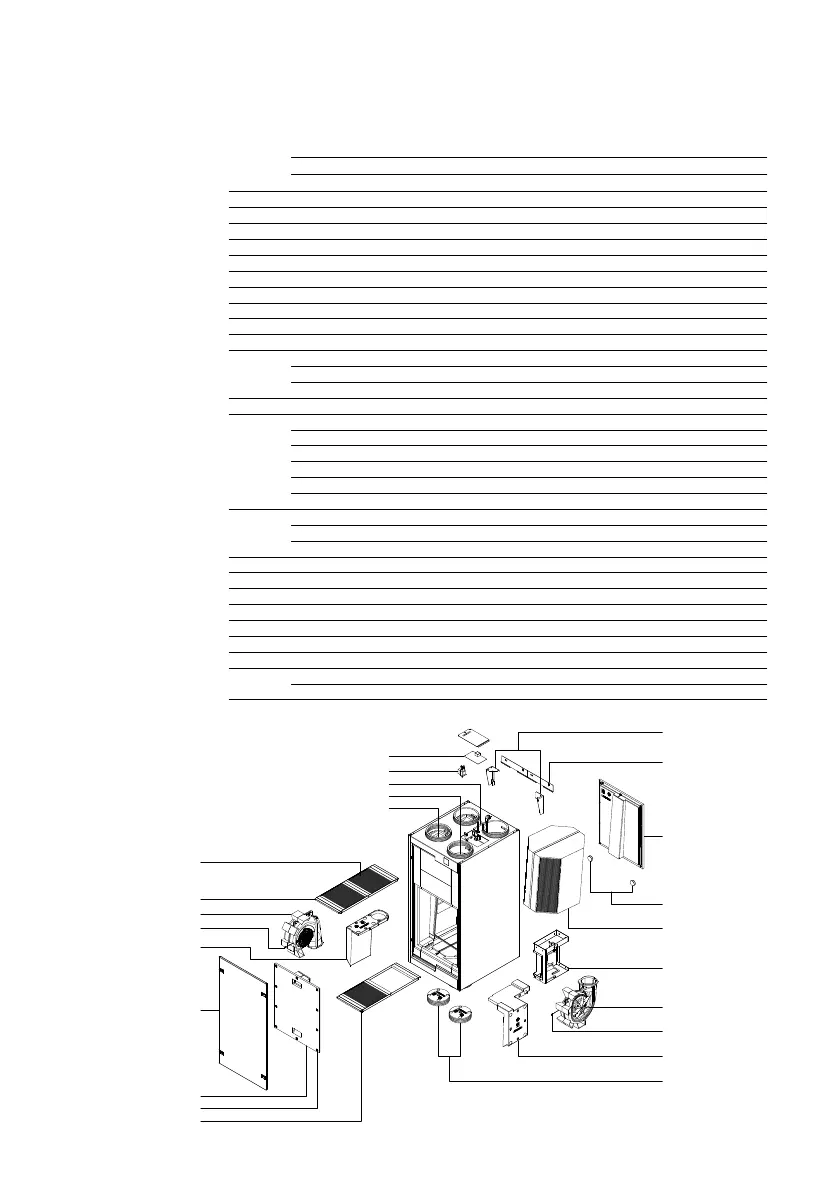

8 PARTS LIST
32 PARTS LIST
No. Réference Description
1 11VE50106 Front panel DX4
11VE50111 Front panel DX5
11VE50112 Front panel DX6
2 11VE50107 Door panel EPP 1 DX
3 11VE50108 Door panel EPP 2 DX
4 11VE50109 Insert EPP 1 DX
5 11VE50110 Insert EPP 2 DX
6 11VE52101 Cover cap DX
7 11VE50003 Bump caps (2pcs)
8 11VE50202 Mounting brackets DX (2pcs)
9 11VE50252 Suspension bracket DX
10 11VE50307 Filter tray DX 275x275 F7/G4
11 11VE50308 Filter tray DX 275x275 G4
12 11VE50361 Filter set 275x275 F7/G4
11VE50362 Filter set 275x275 F7/G4/G4
11VE50390 Filter set 275x275 F7/F7
13 11VE50407 Heat exchanger DX
14 11VE51153 Snail shell DX4
11VE51101 Fan 85W190 - DX4
11VE51154 Snail shell DX5
11VE51100 Fan 118W190 - DX5
11VE51155 Snail shell DX6
11VE51102 Fan 170W190 - DX6
15 11VE51225 DX4 circuit board
11VE51226 DX5 circuit board
11VE51227 DX6 circuit board
16 11VE55153 By-pass module DX
17 11VE51351 Antenna
18 11VE51415 NTC sensor 2-pol 300mm
19 11VE51411 NTC sensor 3-pol 750mm
20 11VE51414 NTC sensor 3-pol 950mm
21 11VE56003 EPP screw (10St.)
7/8/9 11VE50203 Mounting suspension set DX
22 11VE51238 EMC component DX4 (E)
11VE51239 EMC component DX5/6 (E)
21
11
1
2
3
4
5
6
7
8
9
10
12
11
13
14
16
15
14
17
18
18
21
22
20
19
12
10
14
1
18
4
3
9
8
2
7
13
16
14
18
5
6
15
22
17
19
20
