REVERSIBILTY 11
REVERSIBILTY

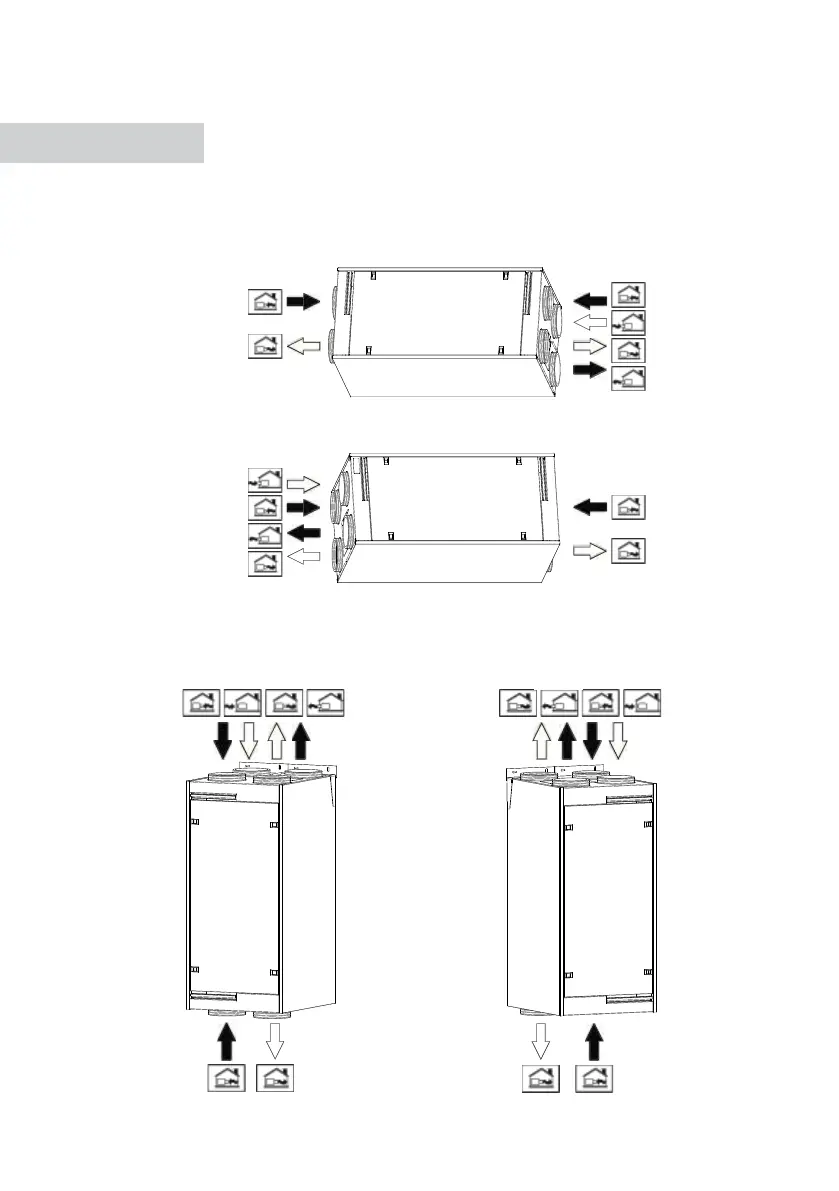

The ventilation unit can be mounted both horizontally and vertically against
the wall. In addition, the ventilation unit can easily be mirrored so that the
home connections can be located on the front or rear side.
STANDARD CONFIGURATION FOR - HORIZONTAL
REVERSE CONFIGURATION BEHIND - HORIZONTAL
from home
to home
from outside
to outside
from home
to home
from home
to home
from outside
to outside
from home
to home
CONFIGURATION FOR VERTICAL
REVERSE CONFIGURATION BEHIND
VERTICAL
to
home
from
outside
from home
to outside
to home
from home
to home from outside
to
outside
from
home
to home from home
