Vasco DX4 - Mounting Ventilation Unit

MOUNTING VENTILATION UNIT INSTALLATION CONDITIONS / VERTICAL WALL MOUNTING 13
INSTALLATION CONDITIONS
In order to determine whether the installation of the ventilation unit is
possible in a specific room, account must be taken of the following aspects:
• the room must be frost-free
• the installation must be done in accordance with the general and locally
applicable safety and installation instructions for (amongst other things)
ventilation, electricity and sewer systems as well as in accordance with
the rules outlined in this manual
• the following facilities must be present in the room:
• air duct connections
• 230V±10%, single-phase, 50Hz socket
• provision for condensation drain
- no construction dust is allowed in the ventilation unit or air duct system

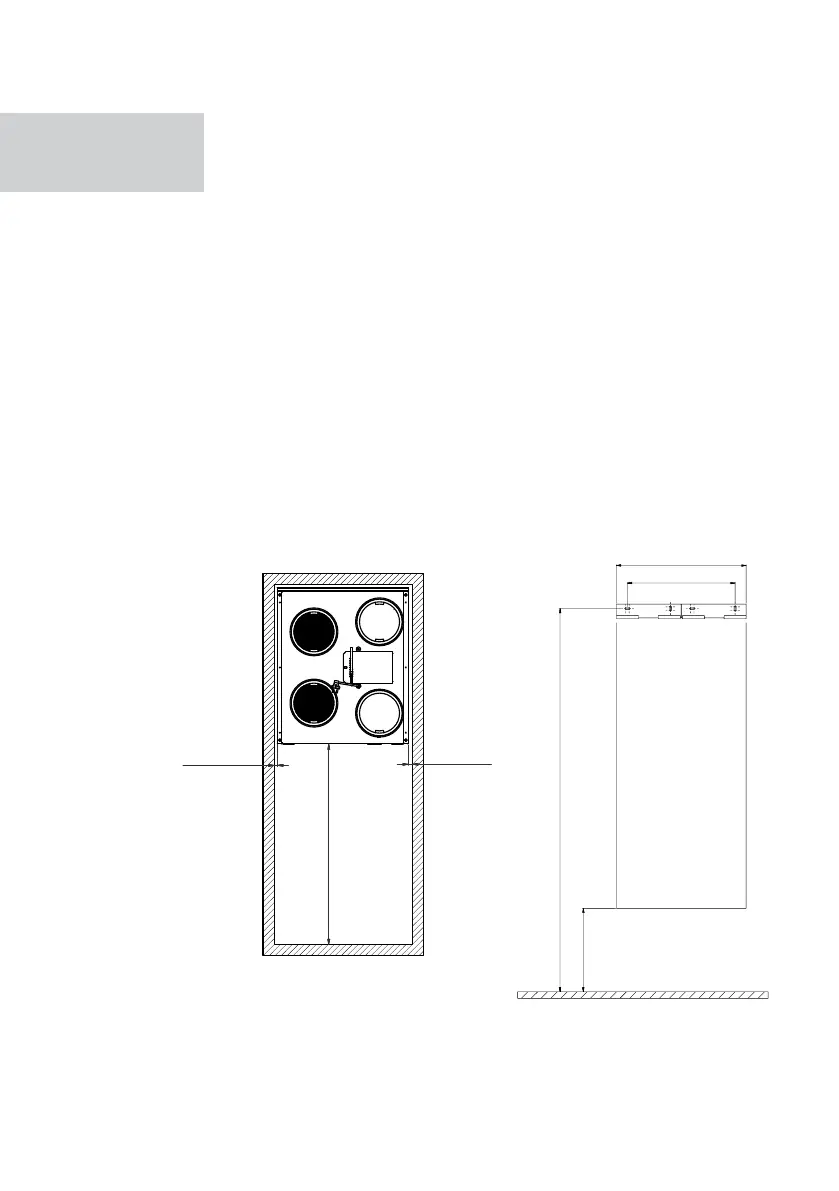

VERTICAL WALL MOUNTING
Mount the ventilation unit on a wall of sufficient rigidity and provide sufficient
space under the unit for condensation drainage. Also ensure sufficient
distance in front of the device to carry out necessary maintenance work.
Step 1:
Attach the wall bracket level to a wall of sufficient strength.
Dowels and screws are not included. Use suitable fastening materials here
according to the wall construction.
MOUNTING
VENTILATION
UNIT
4321
A
B
C
D
DATUM
SCHAAL
GET.
MACHINE NR.
TEKENING NR.
ISO
B 3650 DILSEN
Tel. +32 (089) 79.04.11
Fax. +32 (089) 79.05.00
PROJECT
BENAMING
A4
Ventilation Unit DX4
209 DX
SHO
26/04/2018
209.00.00.00
(1:2)
Minimum 1cm
Minimum 1cm
1
0
0
c
m
Minimum 1cm Minimum 1cm
100cm
FP
FP
0
LQ
LP
X
P



F
P
0
LQ
LP
X
P




F
P
Minimum 171cm
Minimum 38cm
59cm
49cm
