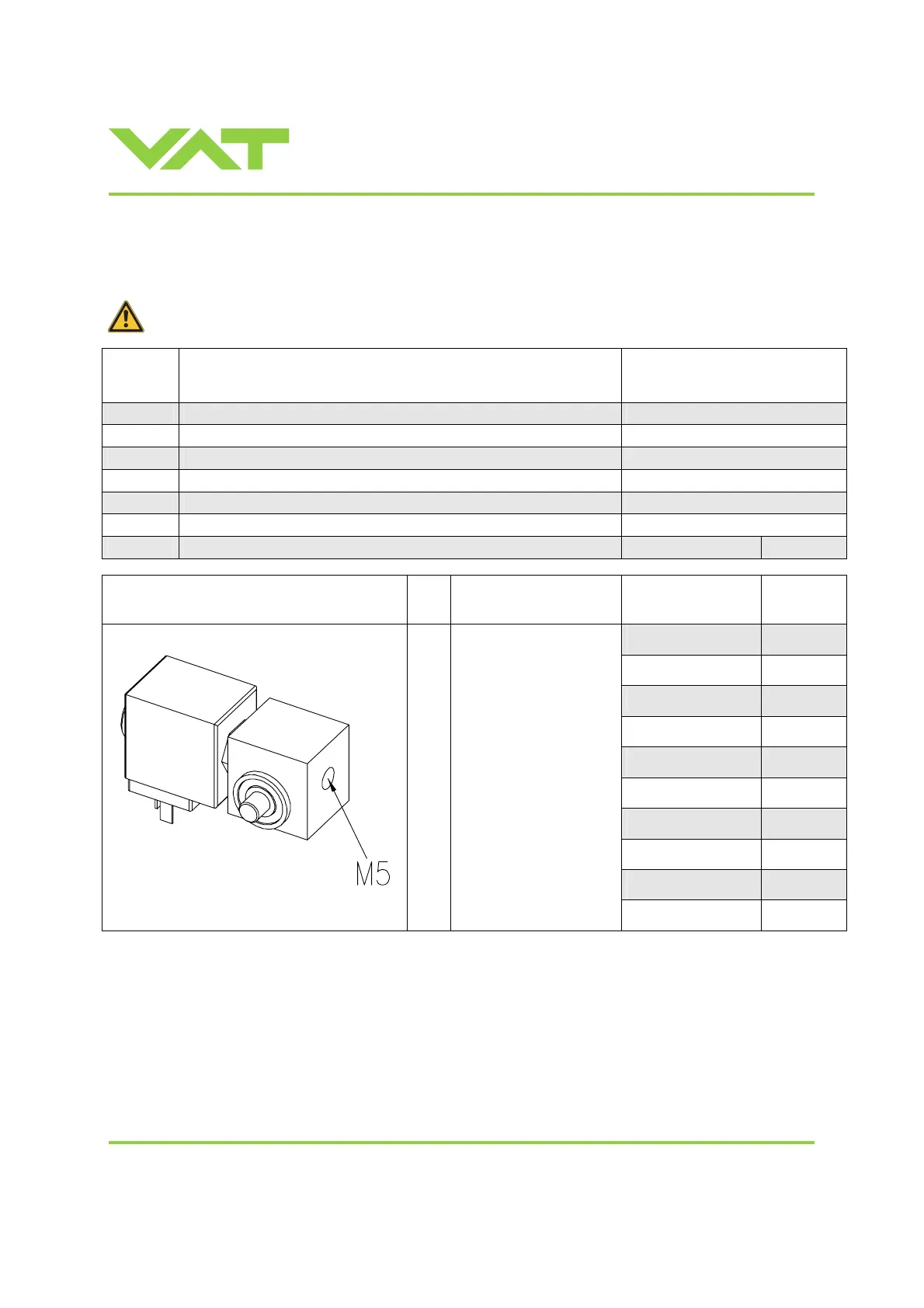

6 Spare parts
Please specify the fabrication number of the valve (see yellow label on valve) when ordering spare parts. This is
to ensure that the appropriate spare parts are supplied.
Item Description Additional information
1 Plate seal (O-ring)
3 Plate seal (O-ring) for intermediate position
4 Bottom plate
5 Bottom seal (O-ring)
6 Bonnet seal (O-ring)
1, 3, 5 ,6 Seal kit vacuum
VAT vacuum grease N-6951-011 10 g
Solenoid Item
Description Voltage (±10 %)
Ordering
No.
12 VDC 244106
24 VDC 235683
48 VDC 244108
110 VDC 244118
24 VAC / 50-60 Hz 244120
48 VAC / 50-60 Hz 244122
100 VAC / 50-60 Hz 244125
115 VAC / 50-60 Hz 244127
200 VAC / 50-60 Hz 245808
44 Solenoid
230 VAC / 50-60 Hz 244129
