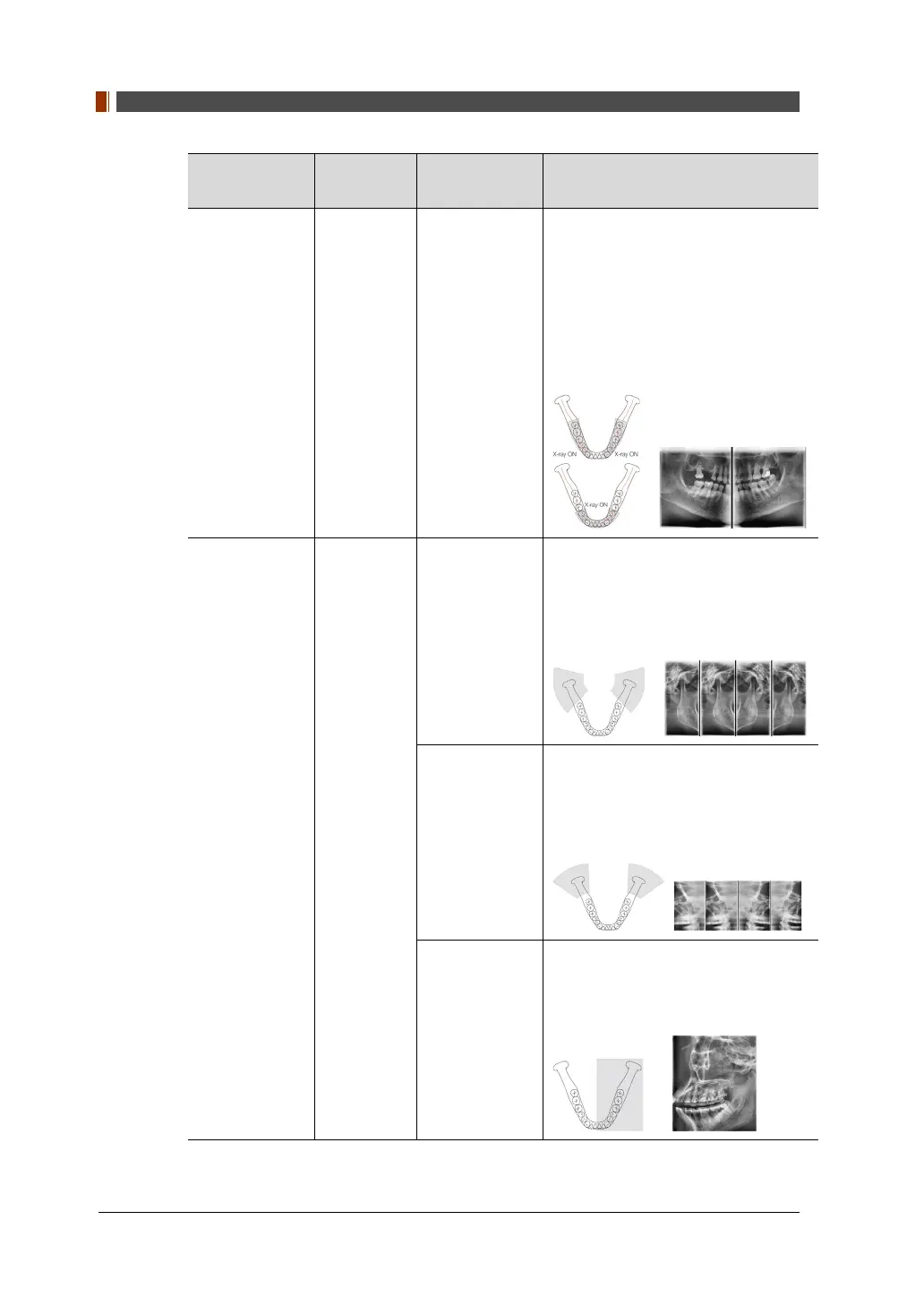

7. Acquiring PANO Images
54 vatech A9 (Model name: PHT-30CSS) User Manual
Examination
Type
Arch
Selection
ROI Description & Sample Image
Bitewing**
(Bitewing
Incisor mode
is Optional)
A panoramic imaging mode to
acquire an image only for the
region of interest through the
orthogonal trajectory.
(Pros: less X-ray exposure than the
Normal mode. /Cons: TMJ and
some parts of the maxillary sinus
cannot be acquired.)
SPECIAL
Examination
N/A
TMJ LAT
Open/Close
An imaging mode to acquire a
lateral image of the TMJ, in which
the X-ray beam is directed on the
lateral TMJ region.
(TMJ Open and Close)
TMJ PA
Open/Close
(Optional)
An imaging mode to acquire a TMJ
image, in which the X-ray beam is
directed on the frontal TMJ, with the
patient's mouth open fully and
close.
Sinus LAT
(Optional)
A special imaging mode to acquire
a Sinus image, in which an X-ray
beam is directed on the lateral
region of the maxillary sinus.
