7. Acquiring PANO Images
vatech A9 (Model name: PHT-30CSS) User Manual 61
English

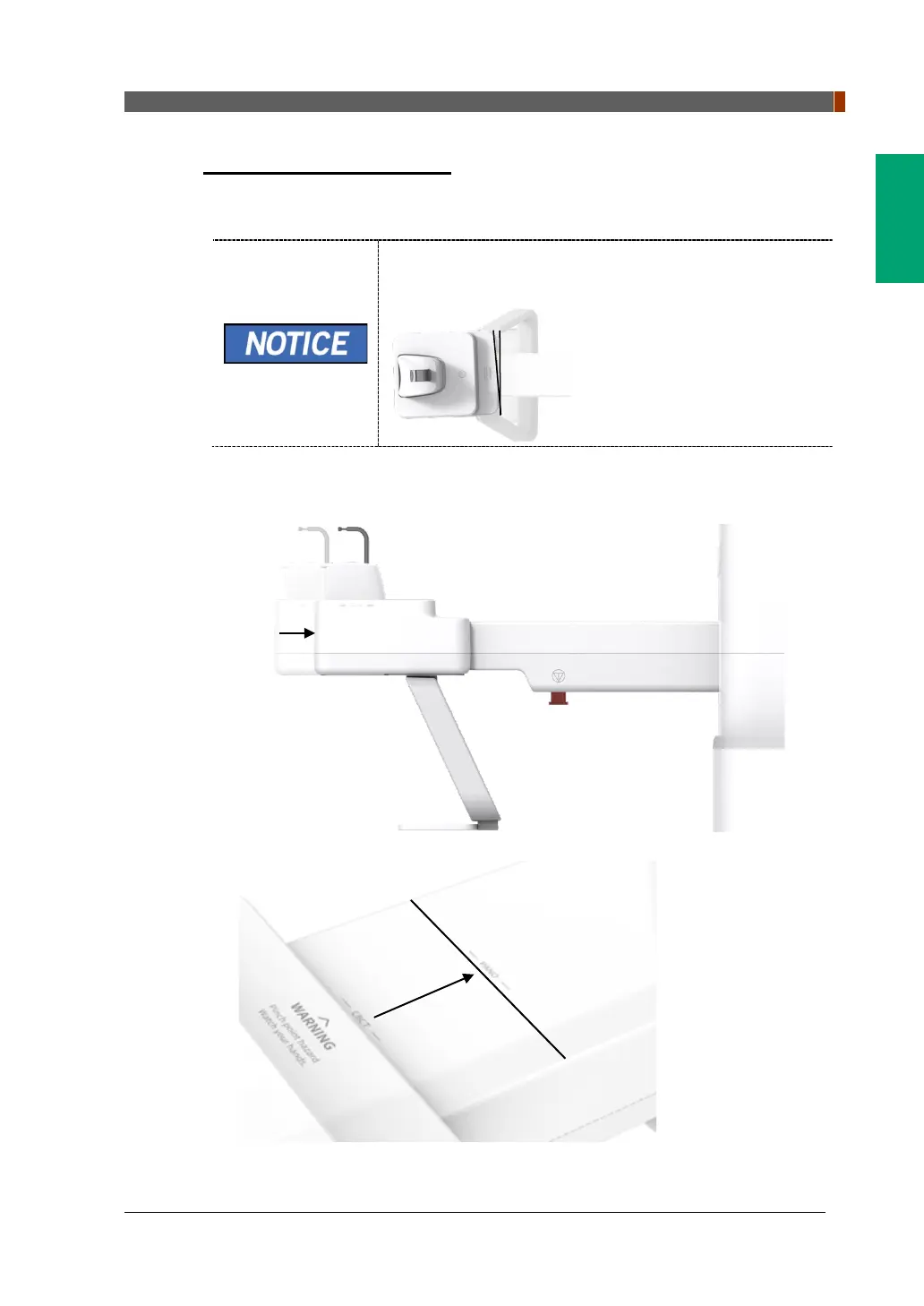

Chinrest position adjustment
Before patient alignment, adjust the Chinrest position to the PANO mode. (If the
Chinrest position is already set to PANO mode, there is no need to adjust again.)
The installation angle of the Chinrest attachment part may
be distorted by 2 degrees. This is intended for calibration
purposes.
1. Push the Chinrest attachment part on the handle frame towards the machine until
the end of the Chinrest attachment part is printed in "-PANO-" silk. Push until you
hear a “click” sound.
