7. Acquiring PANO Images
vatech A9 (Model name: PHT-30CSS) User Manual 71
English
8. Guide the patient to place the base of his/her nose (acanthion point) against the
Chinrest and bend the head forward about 5˚.
9. Let the patient maintain the posture as follows:
 Close the mouth.
 Place the tongue on the roof of the mouth.
 Close the eyes.

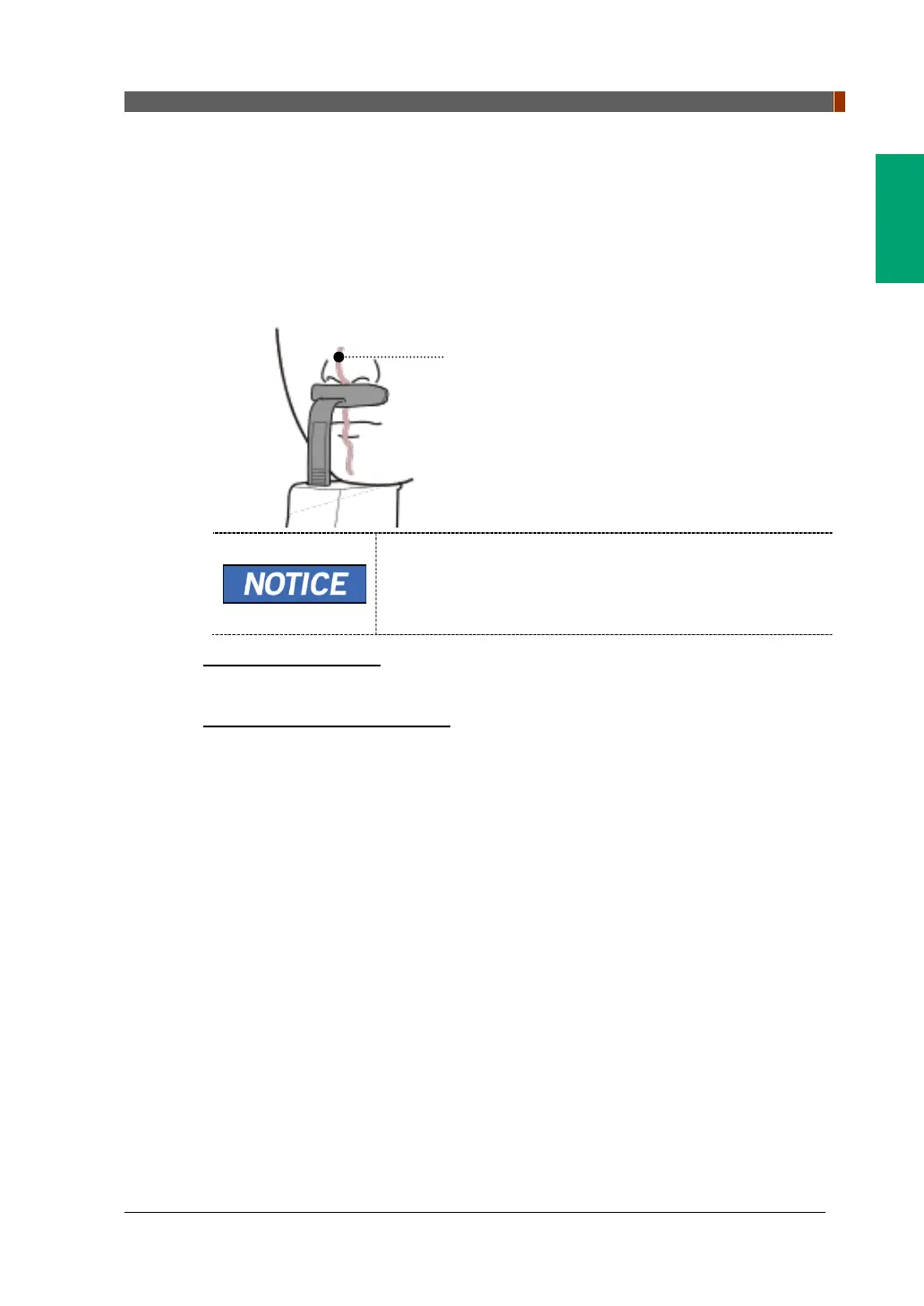

 As shown in the picture, the support unit of the integrated
Chinrest should touch the patient's acanthion point.
 Let the patient maintain his/her position until the operation
is completed.
Laser Beam Aligning
This is the same as the one for TMJ Open mode.
Finishing Patient Positioning
This is the same as the one for TMJ Open mode.
Acanthion Point
